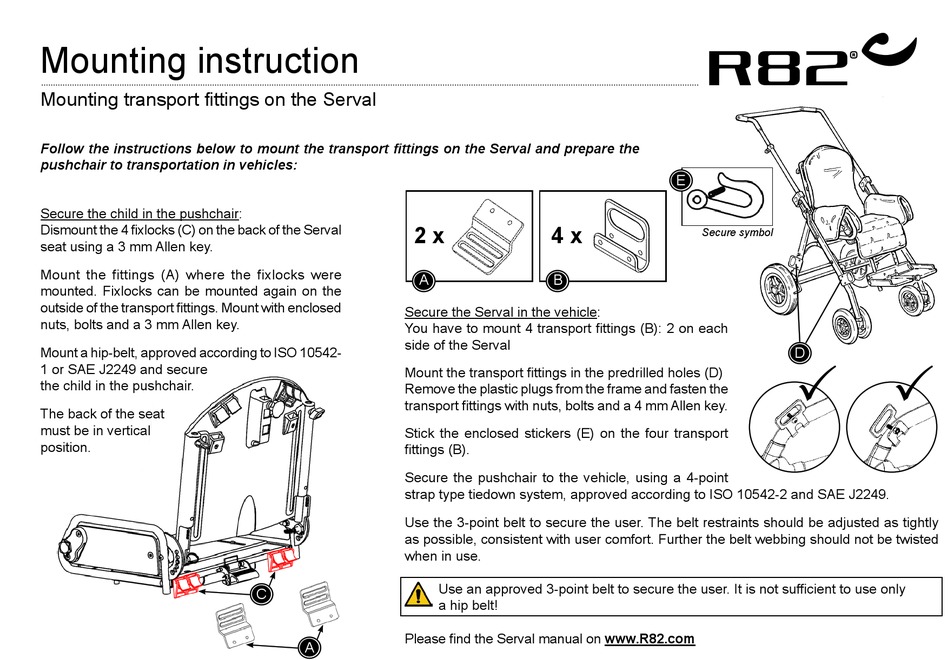

Mounting instruction

Mounting transport fittings on the Serval
Follow the instructions below to mount the transport fittings on the Serval and prepare the
pushchair to transportation in vehicles:
Secure the child in the pushchair:
Dismount the 4 fixlocks (C) on the back of the Serval
seat using a 3 mm Allen key.
Mount the fittings (A) where the fixlocks were
mounted. Fixlocks can be mounted again on the
outside of the transport fittings. Mount with enclosed
nuts, bolts and a 3 mm Allen key.
Mount a hip-belt, approved according to ISO 10542-
1 or SAE J2249 and secure
the child in the pushchair.
The back of the seat
must be in vertical
position.
2 x
A
Secure the Serval in the vehicle:
You have to mount 4 transport fittings (B): 2 on each
side of the Serval
Mount the transport fittings in the predrilled holes (D)
Remove the plastic plugs from the frame and fasten the
transport fittings with nuts, bolts and a 4 mm Allen key.
Stick the enclosed stickers (E) on the four transport
fittings (B).
Secure the pushchair to the vehicle, using a 4-point
strap type tiedown system, approved according to ISO 10542-2 and SAE J2249.
Use the 3-point belt to secure the user. The belt restraints should be adjusted as tightly
as possible, consistent with user comfort. Further the belt webbing should not be twisted
when in use.
