Mounting instruction

Mounting of holder for oxygen cylinder

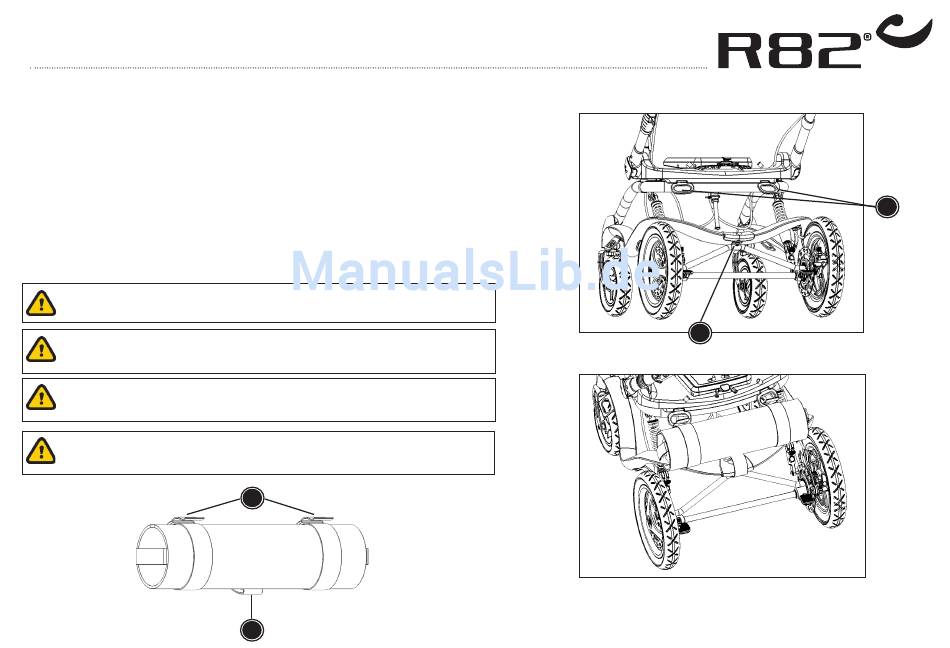

Follow the instructions below to mount the holder for oxygen cylinder:
* Open the velcro (A) and place the oxygen cylinder in the cover.
* The straps are placed in the transport fittings at the back of the frame
(B) in the following way: Velcro (A) is put through the bottom hole of
the buckle, then through the transport fitting and at last through the
upper hole of the buckle. Velcro is closed.
* Open velcro (C) and put it around the frame (D).
Can only be mounted on frames with transport fittings mounted on
the back of the frame.
The Oxygen Cylinder holder must be removed from the Stingray
when used in transport.
Be careful that the foot support do not hit the oxygen cylinder when
the seat is turned around.
Any adjustments and addition of accessories must be placed and
fitted correctly and checked before every use.
