Connecting Other Sources

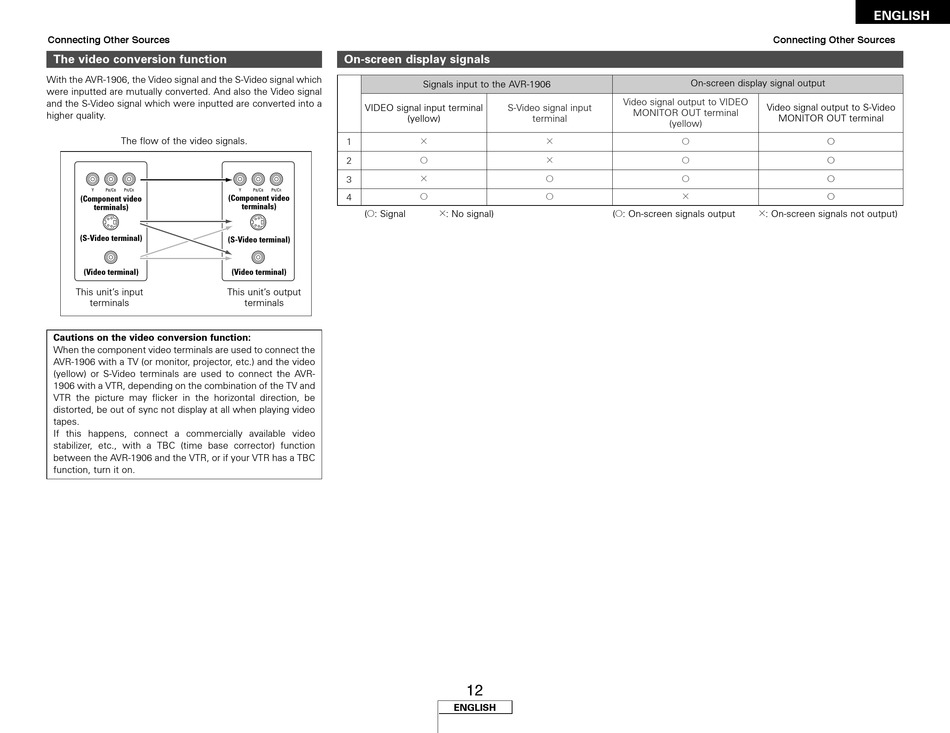

The video conversion function

With the AVR-1906, the Video signal and the S-Video signal which
were inputted are mutually converted. And also the Video signal
and the S-Video signal which were inputted are converted into a
higher quality.
The flow of the video signals.
(Component video
terminals)
(S-Video terminal)
(Video terminal)
This unit's input
terminals
Cautions on the video conversion function:
When the component video terminals are used to connect the
AVR-1906 with a TV (or monitor, projector, etc.) and the video
(yellow) or S-Video terminals are used to connect the AVR-
1906 with a VTR, depending on the combination of the TV and
VTR the picture may flicker in the horizontal direction, be
distorted, be out of sync not display at all when playing video
tapes.
If this happens, connect a commercially available video
stabilizer, etc., with a TBC (time base corrector) function
between the AVR-1906 and the VTR, or if your VTR has a TBC
function, turn it on.

On-screen display signals

VIDEO signal input terminal
1
2
3
4
(Component video
terminals)
(C: Signal
(S-Video terminal)
(Video terminal)
This unit's output
terminals
Signals input to the AVR-1906
S-Video signal input
(yellow) terminal
E E
C E
E C
C C
E: No signal)
12
ENGLISH
Connecting Other Sources
On-screen display signal output
Video signal output to VIDEO
Video signal output to S-Video
MONITOR OUT terminal
MONITOR OUT terminal
(yellow)
C
C
C
E
(C: On-screen signals output E: On-screen signals not output)
ENGLISH
C
C
C
C
