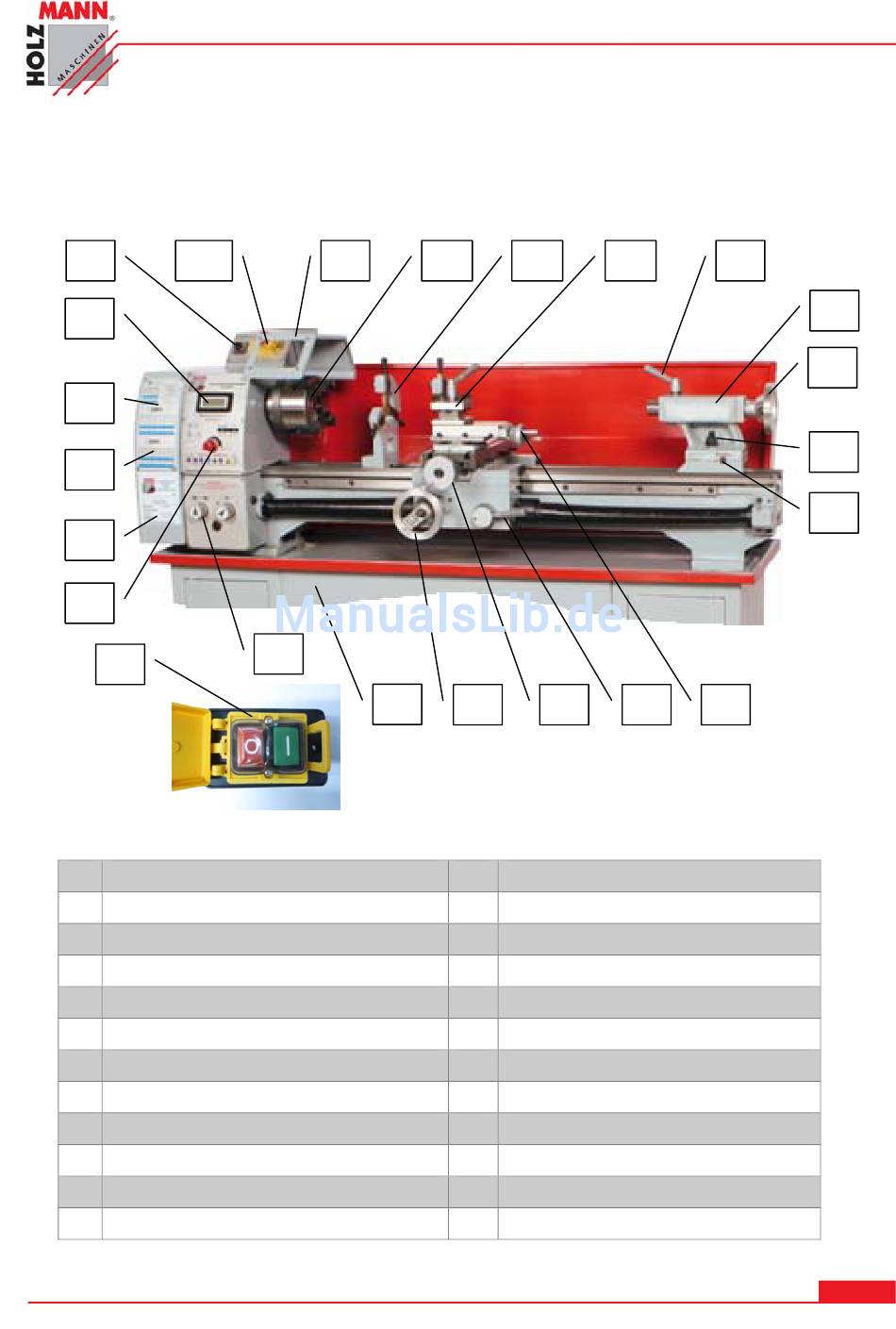

Components and Controls

1 2/3
23
22
21
20
19
3
1 Direction of rotation switch L / R
2 EMERGENCY OFF switch
3 Pushbutton On / Off
4 Lathe chuck protection
5 lathe chuck
6 bezel
7 tool holder
8 tailstock clamping lever
9 tailstock
10 handwheel tailstock
11 Clamping screw tailstock
12 Adjusting tailstock
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at
4 5
18
17
6 7
16 15
13 Handwheel top slide
14 Engaging lever feed / thread
15 Handwheel cross slide
16 Handwheel bedslide
17 Undercarriage
18 Setting feed / thread pitch
19 Speed adjustment infinitely
20 protective cover headstock
21 Thread pitches table
22 feed table
23 speed display
