DESCRIPTION OF THE DEVICE

Features

Ultra-flexible architectural spot (IP 65) with 60 W COB LED and motorized zoom
• Equipped with a 60 W COB LED in the colors red, green, blue and white
• Flicker-free projection
• 5, 7 or 11 DMX channels selectable
• For architectural lighting
• Suitable for external use, IP 65
• Fully convection cooled, no fans
• Motorized zoom with 4-32° beam angle
• Stepless RGBW color changing
• Dimmer
• Different dimmer curves and dimmer speed (step response) adjustable
• Strobe effect with adjustable speed
• Random strobe effect
• User defined color settings can be set and saved individually
• Internal programs
• Programmed and programmable chaser
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Addressing and setting via Control Board with four operating buttons and OLED display
• Ideal as floor spot via additional bracket
• Locking possibility at the brackets
• Switch-mode power supply for operation between 100 and 240 volts
• DMX control via every standard DMX controller
• Feed-through output allows to power up to 8 devices

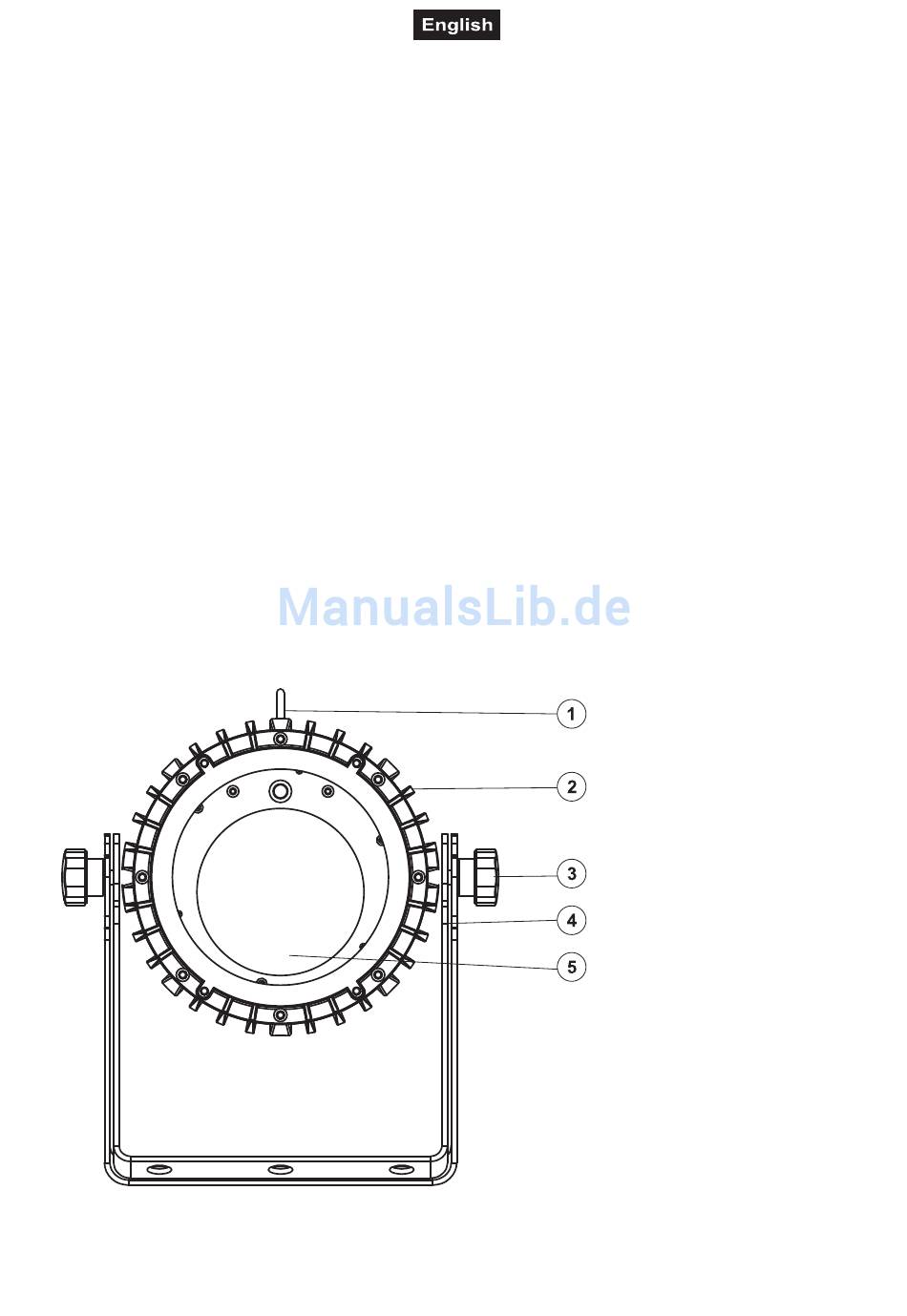

Overview

(1) Safety eyelet
(2) Housing/cooling ribs
(3) Fixation screw
(4) Floor stand/mounting bracket
(5) Protective shield/lens
22/36 00106191, Version 1.0
