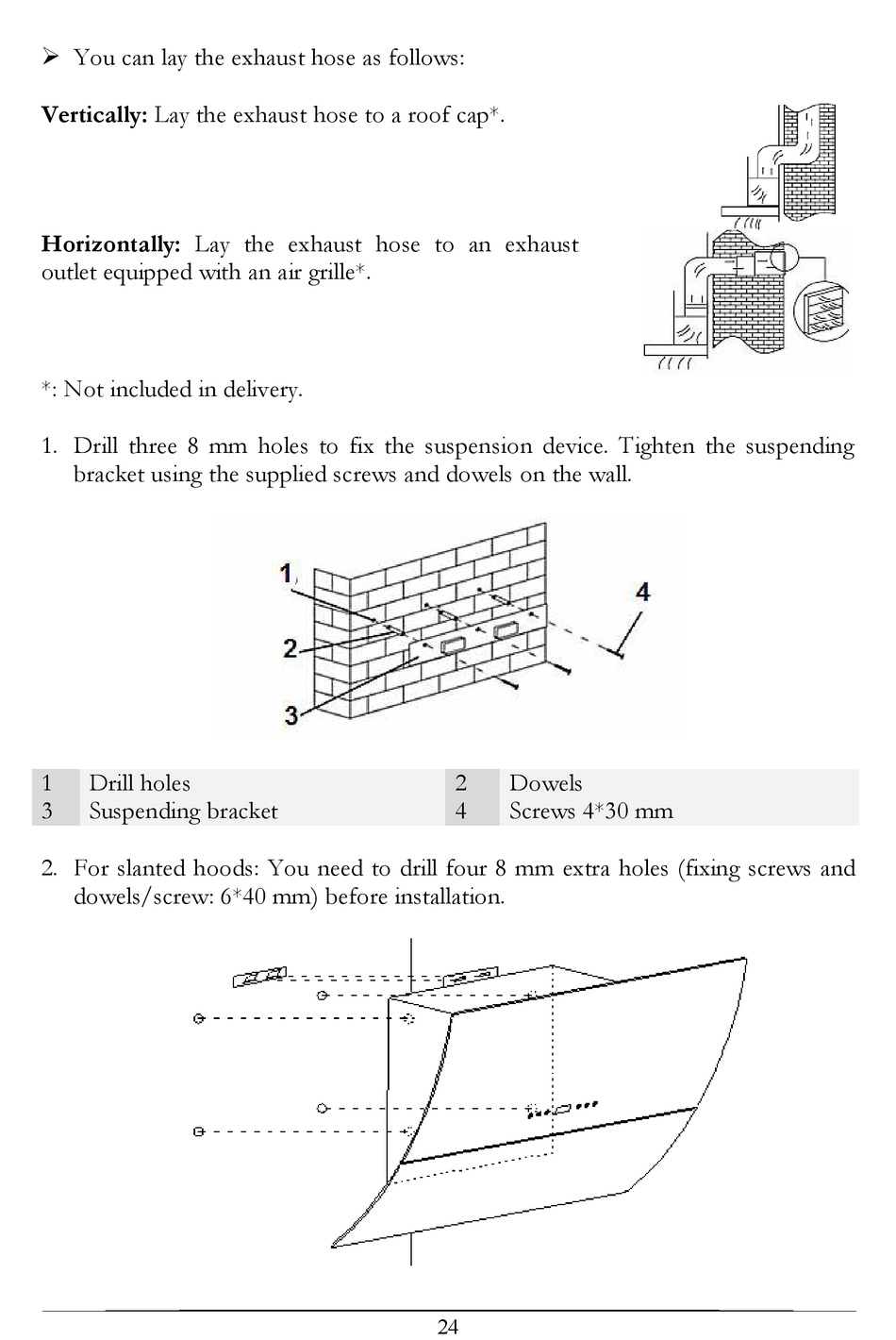

 You can lay the exhaust hose as follows:
Vertically: Lay the exhaust hose to a roof cap*.
Horizontally: Lay the exhaust hose to an exhaust
outlet equipped with an air grille*.
*: Not included in delivery.
1. Drill three 8 mm holes to fix the suspension device. Tighten the suspending
bracket using the supplied screws and dowels on the wall.
1 Drill holes
3 Suspending bracket
2. For slanted hoods: You need to drill four 8 mm extra holes (fixing screws and
dowels/screw: 6*40 mm) before installation.
2 Dowels
4 Screws 4*30 mm
