Input key functIon

S/n identification
1
Left control lever
2 Right control lever
3
Roll trim
4
Nick trim
5 Tail rotor trim
6 On/Off power switch
7 Demo-Flight

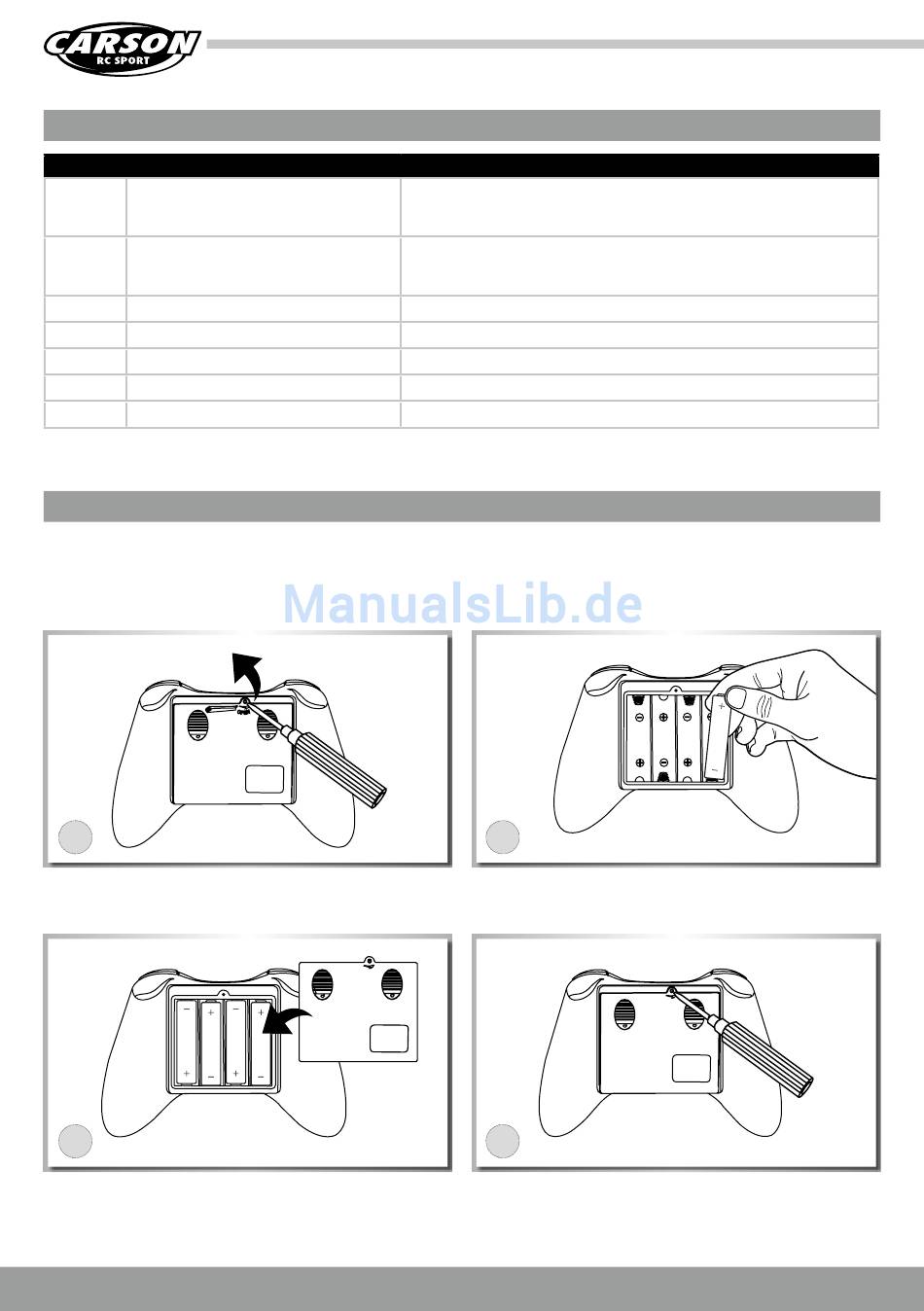

battery mountIng

Caution
• Do not mix old and new batteries/rechargeable batteries.
• Do not mix different types of batteries.
1
Remove screw of the battery-cover. Remove the cover.
3
Close the battery-case.
GB // 22
Function
Forward and backward movement of the stick makes the quadcopter ascend
and descend respectively. When the control lever is moved left or right, the
copter will turn left or right.
Forward and backward movement of the stick makes the quadcopter move
forward and backward respectively. Left and right movement of the stick
makes the quadcopter drift sideways left/right respectively.
Aileron trim subsidiary adjusts left and right drift.
Elevator trim subsidiary adjusts forward and backward movement.
Rudder trim subsidiary adjusts left and right rotation.
To switch on the transmitter please push the button. Push again to switch off.
The model flies circles by pressing the button
• Do not charge non-rechargeable batteries.
2
Put fresh AA Mignon batteries with correct polarity into the
battery-case.
4
Mount the screw of the cover again.
