Carson Comanche 2WD Bedienungsanleitung Seite 8

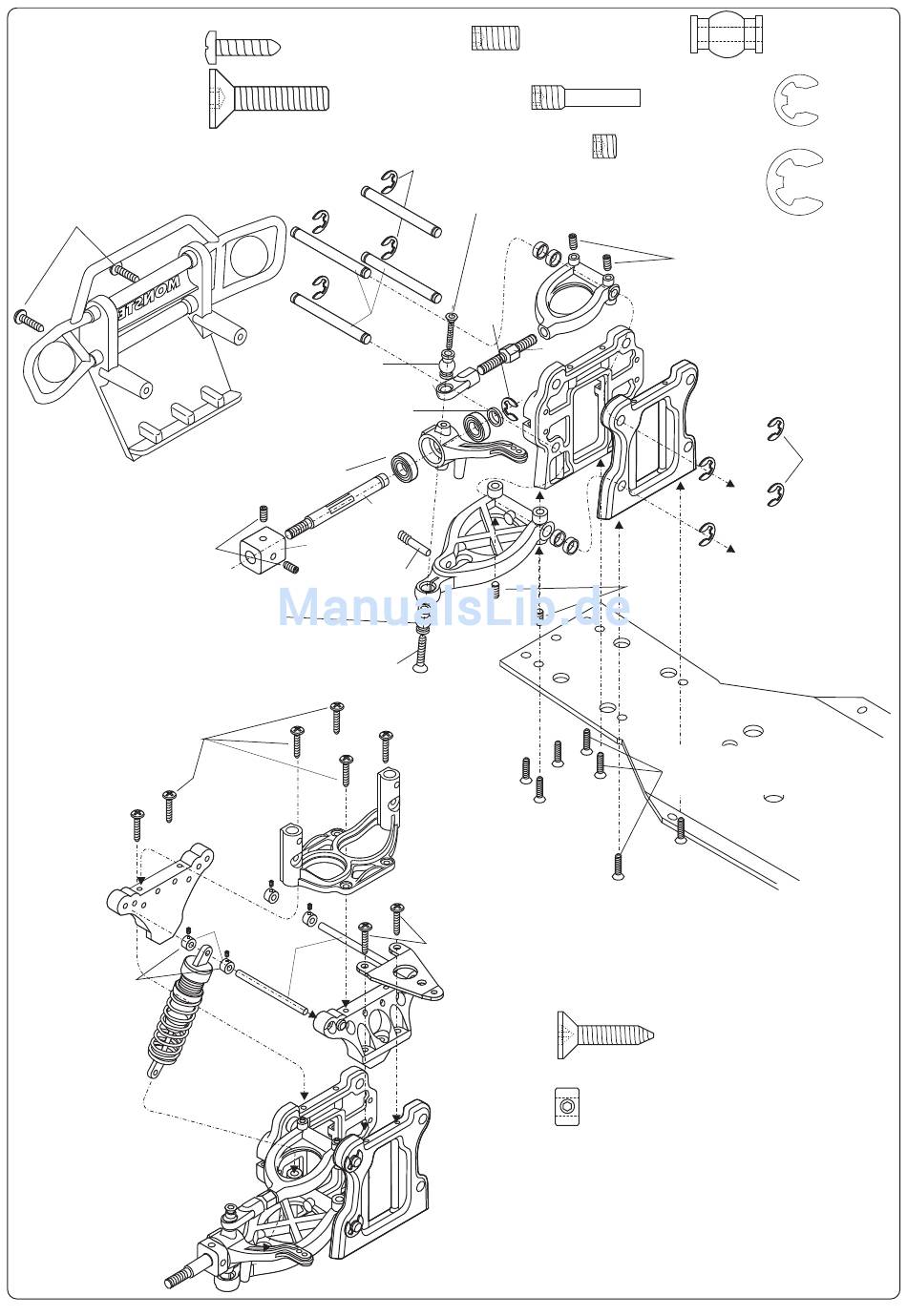

Vorderachse
Front axle
Essieu avant
Verwendete Teile
Parts used
Pièces utilisées
Schneidschaube 4.2x16mm
Self-tp. screw 4.2x16mm
Vis traudeuse 4.2x16mm
305013
roulement à billes Ø8x22x7
Madenschraube M5x4
Grub screw M5x4
Vis sans tête M5x4
Gelenkkugel B
Ball end B Ø10
Baque de fixation B
Schneidschaube 4.2x16mm
Self-tp. screw 4.2x16mm
Vis traudeuse 4.2x16mm
Stellring Ø4x8x5
Set collar Ø4x8x5
Baque d`arrêt Ø4x8x5
Schneidschaube 4.2x16mm
Self-tp. screw 4.2x16mm
32561 Vis traudeuse 4.2x16mm
Innens.senkschraube M5x25 Innens.senkschraube M5x25
Inner hex. p.h. screw M5x25 Inner hex. p.h. screw M5x25
Visnoyée hex. int.r M5x25 Visnoyée hex. int.r M5x25
32434
32498
Gelenkkugel
Ball end B Ø10
Baque de fixation
Beilagscheibe 17x8.4x1.5
Washer 17x8.4x1.5
Rondelle 17x8.4x1.5
Kugellager Ø8x22x7
Ball bearing Ø8x22x7
305025
305039
Dämpferachse
Damper shaft
Axe d'amortisseuer
Innens.senkschraube M5x25
Inner hex. p.h. screw M5x25
Visnoyée hex. int.r M5x25
32478
32423
Madenschraube M5x10
Grub screw M5x10
32444 Vis sans tête M5x10
E-Ring Ø5
E-ring Ø5
Circlip Ø5
Innens.senkschraube M5x25
Inner hex. p.h. screw M5x25
Vis noyée hex. int.r M5x25
E-Ring Ø7
E-ring Ø7
Circlip Ø7
32463
32409
305004
Schneidschaube 4.2x16mm
Self-tp. screw 4.2x16mm
Vis traudeuse 4.2x16mm
32478
7
32446
Dämpferachse
Damper shaft
Axe d'amortisseuer
32436
Madenschraube M5x4
Grub screw M5x4
Vis sans tête M5x4
32437
Madenschraube M5x10
Grub screw M5x10
Vis sans tête M5x10
Madenschraube M5x10
Grub screw M5x10
Vis sans tête M5x10
Schneidsenkschaube 4.2x16mm
Plain head self-tp. screw 4.2x16mm
Vis noyée traudeuse 4.2x16mm
Schneidsenkschaube 4.2x16mm
Plain head self-tp. screw 4.2x16mm
Vis noyée traudeuse 4.2x16mm
32442
Stellring Ø4x8x5
Set collar Ø4x8x5
Baque d`arrêt Ø4x8x5
Gelenkkugel B Ø10
Ball end B Ø10
Baque de fixation B
E-Ring Ø5
E-ring Ø5
Circlip Ø5
32425
E-Ring Ø7
E-ring Ø7
Circlip Ø7
32570
E-Ring Ø5
E-ring Ø5
Circlip Ø5
