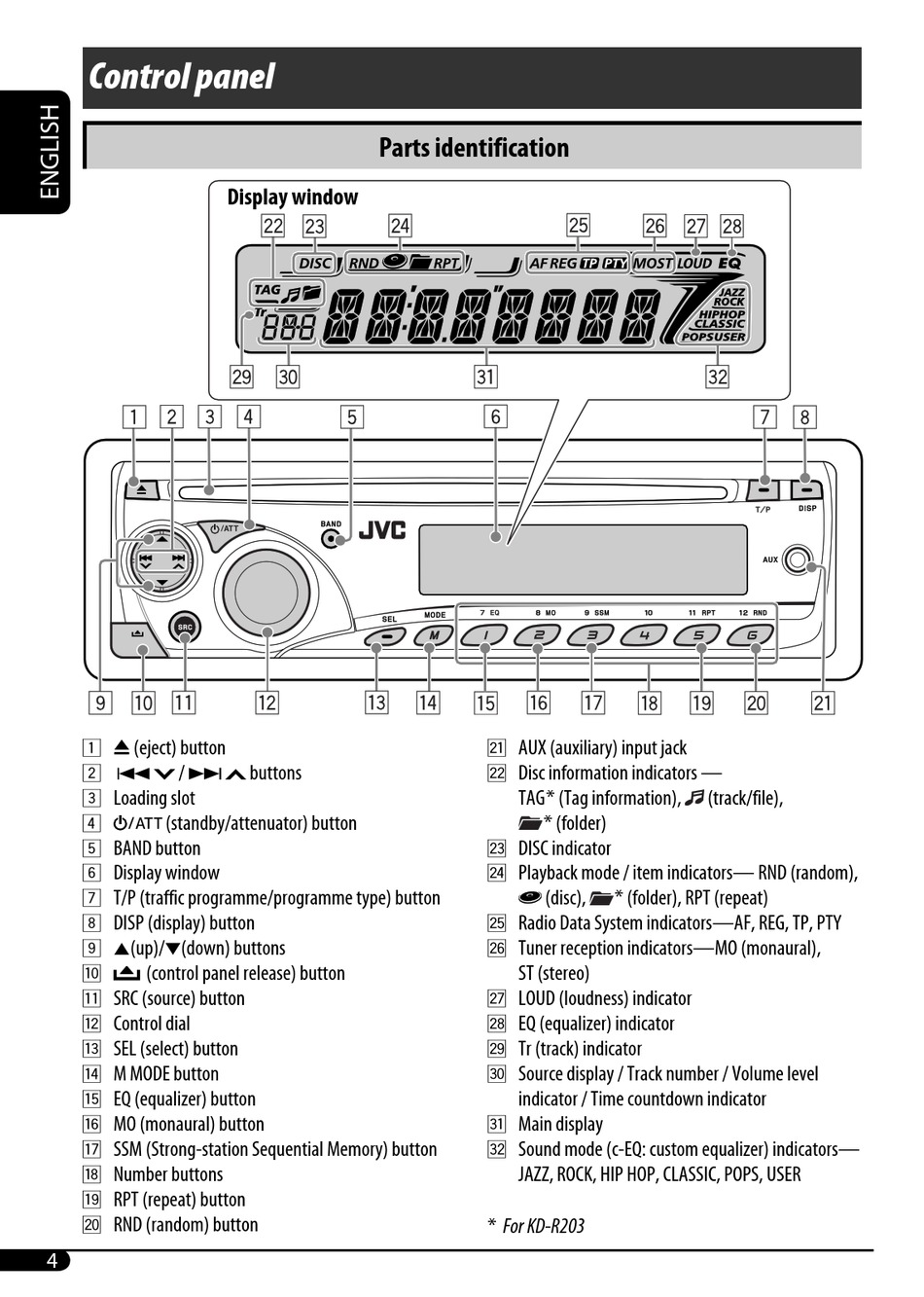

Control panel

1 0
(eject) button
2 4 ¢
/
3
Loading slot
4
(standby/attenuator) button
5
BAND button
6

Display window

7
T/P (traffic programme/programme type) button
8
DISP (display) button
9 5 ∞
(up)/ (down) buttons
p
(control panel release) button
q
SRC (source) button
w
Control dial
e
SEL (select) button
r
M MODE button
t
EQ (equalizer) button
y
MO (monaural) button
u
SSM (Strong-station Sequential Memory) button
i
Number buttons
o
RPT (repeat) button
;
RND (random) button
4

Parts identification

Display window
buttons
a
AUX (auxiliary) input jack
s
Disc information indicators —
TAG * (Tag information),
* (folder)
d
DISC indicator
f
Playback mode / item indicators— RND (random),
* (folder), RPT (repeat)
(disc),
g
Radio Data System indicators—AF, REG, TP, PTY
h
Tuner reception indicators—MO (monaural),
ST (stereo)
j
LOUD (loudness) indicator
k
EQ (equalizer) indicator
l
Tr (track) indicator
/
Source display / Track number / Volume level
indicator / Time countdown indicator
z
Main display
x
Sound mode (c-EQ: custom equalizer) indicators—
JAZZ, ROCK, HIP HOP, CLASSIC, POPS, USER
* For KD-R203
(track/file),
