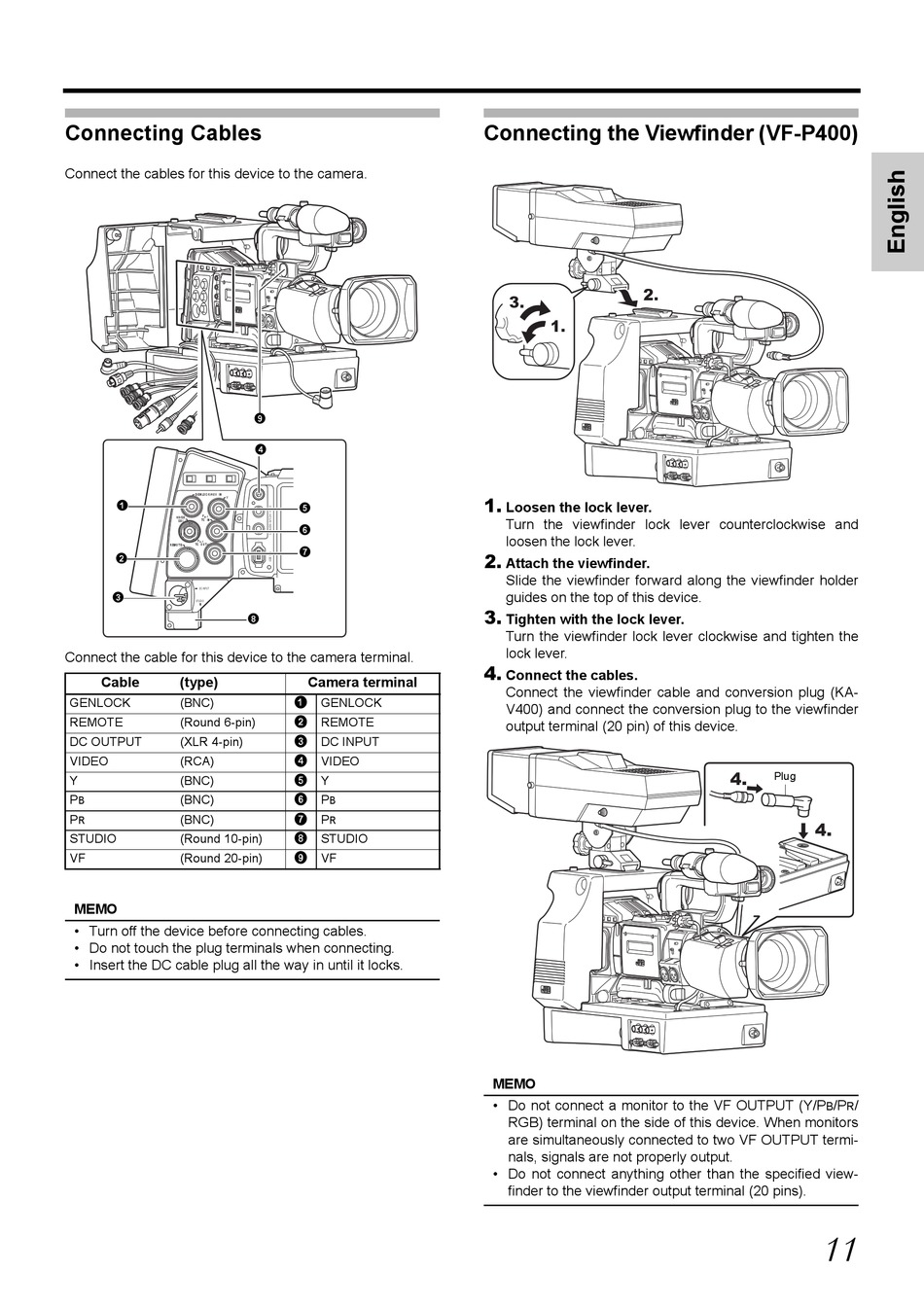

Connecting Cables

Connect the cables for this device to the camera.
GENLOCK/AUX IN
Y
1
P
HD/SD
TC IN
SDI
P
TC OUT
REMOTE
2
DC INPUT
3
STUDIO
Connect the cable for this device to the camera terminal.
Cable (type)
GENLOCK (BNC)
REMOTE (Round 6-pin)
DC OUTPUT (XLR 4-pin)
VIDEO (RCA)
Y (BNC)
P (BNC)
B
P (BNC)
R
STUDIO (Round 10-pin)
VF (Round 20-pin)
MEMO
• Turn off the device before connecting cables.
• Do not touch the plug terminals when connecting.
• Insert the DC cable plug all the way in until it locks.
9
4
5
6
7
8
Camera terminal
GENLOCK
1
2 REMOTE
3 DC INPUT
VIDEO
4
5 Y
6 P
B
7 P
R
8 STUDIO
9 VF

Connecting the Viewfinder (VF-P400)

2.
3.
1.
1.
Loosen the lock lever.
Turn the viewfinder lock lever counterclockwise and
loosen the lock lever.
2.
Attach the viewfinder.
Slide the viewfinder forward along the viewfinder holder
guides on the top of this device.
3.
Tighten with the lock lever.
Turn the viewfinder lock lever clockwise and tighten the
lock lever.
4.
Connect the cables.
Connect the viewfinder cable and conversion plug (KA-
V400) and connect the conversion plug to the viewfinder
output terminal (20 pin) of this device.
MEMO
• Do not connect a monitor to the VF OUTPUT (Y/P
RGB) terminal on the side of this device. When monitors
are simultaneously connected to two VF OUTPUT termi-
nals, signals are not properly output.
• Do not connect anything other than the specified view-
finder to the viewfinder output terminal (20 pins).
4.
Plug
4.
/P /
B R
