INTRODUCTION
Controls, Indicators and Connec-
tors (Cont'd)

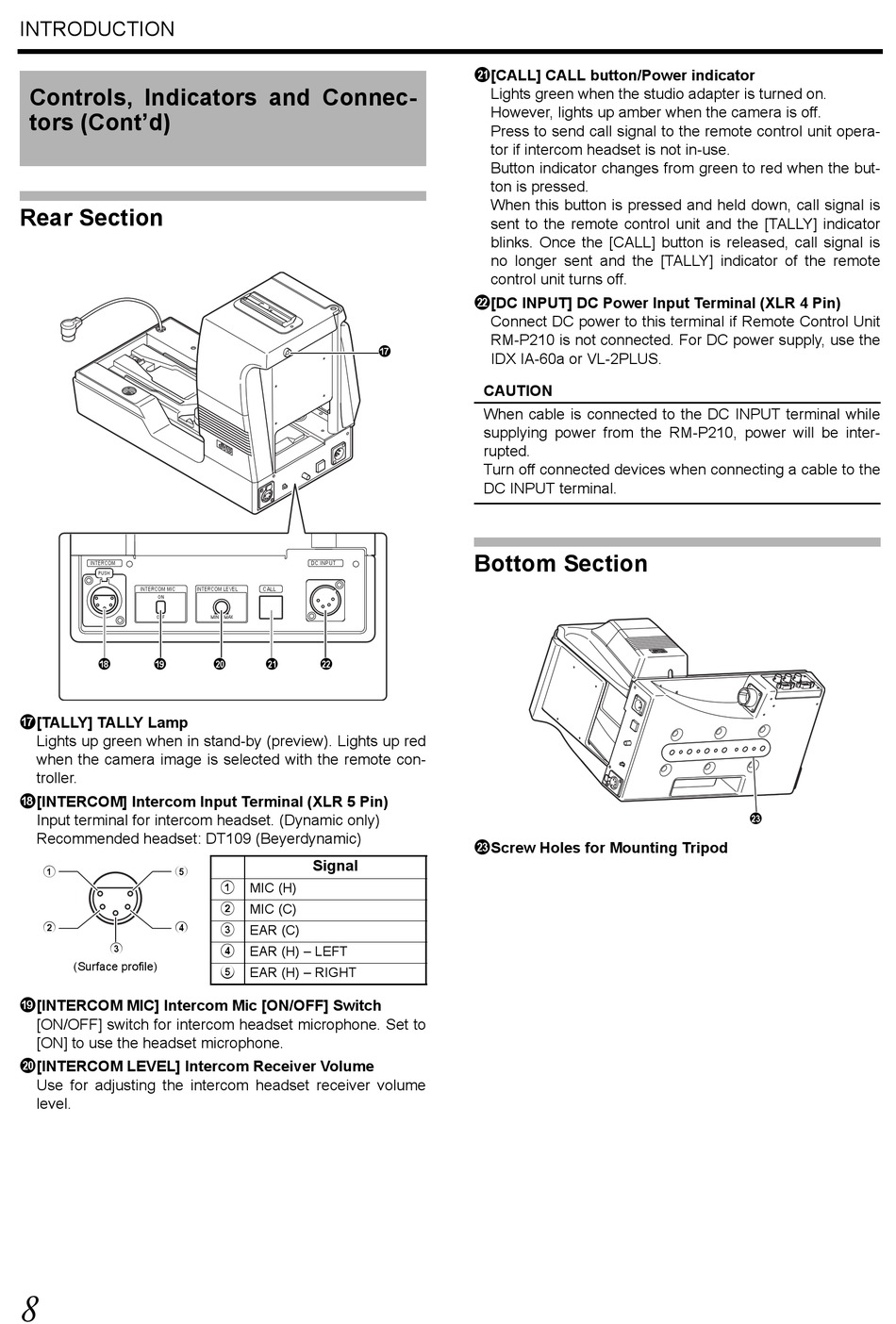

Rear Section

INTERCOM
PUSH
INTERCOM MIC
ON
OFF
h i
g[TALLY] TALLY Lamp
Lights up green when in stand-by (preview). Lights up red
when the camera image is selected with the remote con-
troller.
h[INTERCOM] Intercom Input Terminal (XLR 5 Pin)
Input terminal for intercom headset. (Dynamic only)
Recommended headset: DT109 (Beyerdynamic)
1 5
2 4
3
(Surface profile)
i[INTERCOM MIC] Intercom Mic [ON/OFF] Switch
[ON/OFF] switch for intercom headset microphone. Set to
[ON] to use the headset microphone.
j[INTERCOM LEVEL] Intercom Receiver Volume
Use for adjusting the intercom headset receiver volume
level.
8
DC INPUT
INTERCOM LEVEL CALL
MIN MAX
j k l
Signal
1 MIC (H)
2 MIC (C)
3 EAR (C)
4 EAR (H) – LEFT
5 EAR (H) – RIGHT
k[CALL] CALL button/Power indicator
Lights green when the studio adapter is turned on.
However, lights up amber when the camera is off.
Press to send call signal to the remote control unit opera-
tor if intercom headset is not in-use.
Button indicator changes from green to red when the but-
ton is pressed.
When this button is pressed and held down, call signal is
sent to the remote control unit and the [TALLY] indicator
blinks. Once the [CALL] button is released, call signal is
no longer sent and the [TALLY] indicator of the remote
control unit turns off.
l[DC INPUT] DC Power Input Terminal (XLR 4 Pin)
Connect DC power to this terminal if Remote Control Unit
RM-P210 is not connected. For DC power supply, use the
g
IDX IA-60a or VL-2PLUS.
CAUTION
When cable is connected to the DC INPUT terminal while
supplying power from the RM-P210, power will be inter-
rupted.
Turn off connected devices when connecting a cable to the
DC INPUT terminal.

Bottom Section

mScrew Holes for Mounting Tripod
m
