PREPARATIONS

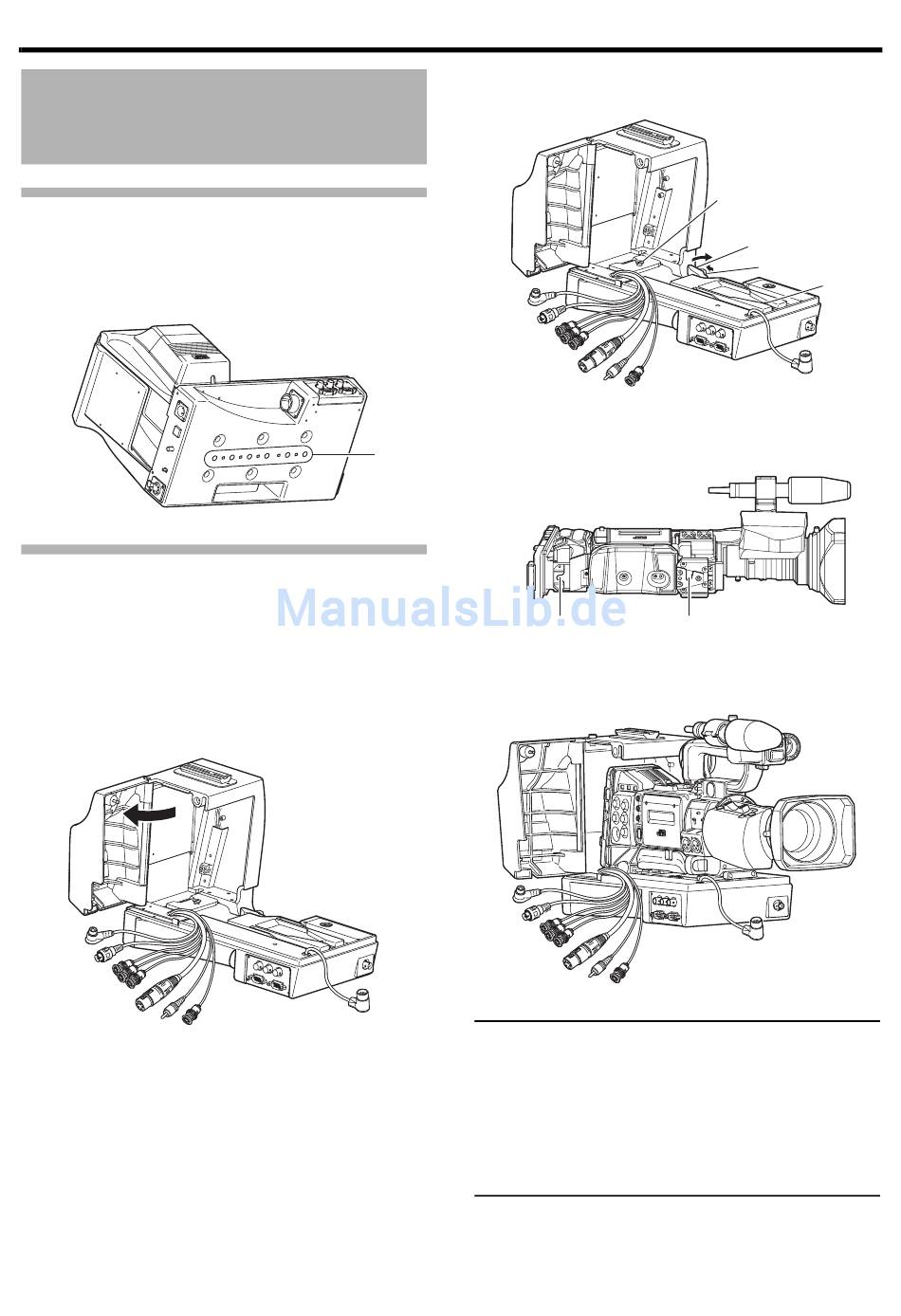

Installation

Mounting on a Tripod

Use the screw holes on the bottom to mount on a tripod.
There are multiple screw holes. Use well-balanced holes to
mount to a tripod.

Mounting the Camera

Prepare the camera as follows before mounting.
• Attach the lens.
• Attach the microphone.
• Remove the viewfinder.
For details, refer to GY-HD250's INSTRUCTION MANUAL.
1.
Open the side cover.
10
2.
While pushing the safety lever, pull the lock lever toward
the front until the front mount clip clicks into place.
3.
Place the camera on this device and align the rear base
mount of the camera with the pin on this device.
Screw
holes
Rear base mount
4.
Hold the camera on the top and slide forward so that the
base mount of the camera is locked by the front mount
clip of this device as it clicks into place.
CAUTION
• The front base mount may lock even when the pin on this
device and the rear base mount attachment hole on the
camera is not attached. After attaching, confirm that the
camera has been firmly attached. The camera may fall
and cause injury or accident if it is not attached properly.
• When transporting with the camera attached to this
device, hold the bottom of this device. If transported with
the camera handle, the attachment may come off and
this device may fall and cause injury or accident.
Pin
Lock lever
Safety lever
Front base mount
Front
mount
clip
