The pin position of the ISO connector will differ
depends on the type of vehicle. Connect 6* and
7* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 6* and 7*.
Blue/white
To system control terminal of the power
amp (max. 300 mA 12 V DC).
Blue/white (6*)
+
Front speaker
≠
Left
+
Rear speaker
or subwoofer
≠
Note:
Change the initial setting of this unit (refer
to the Operation Manual). The subwoofer
output of this unit is monaural.
Connecting cords
with RCA pin plugs
(sold separately)
System remote control
Blue/white (7*)
To Auto-antenna relay control terminal
(max. 300 mA 12 V DC).
Power amp
(sold separately)
+
Front speaker
≠
Right
+
Rear speaker
or subwoofer
≠

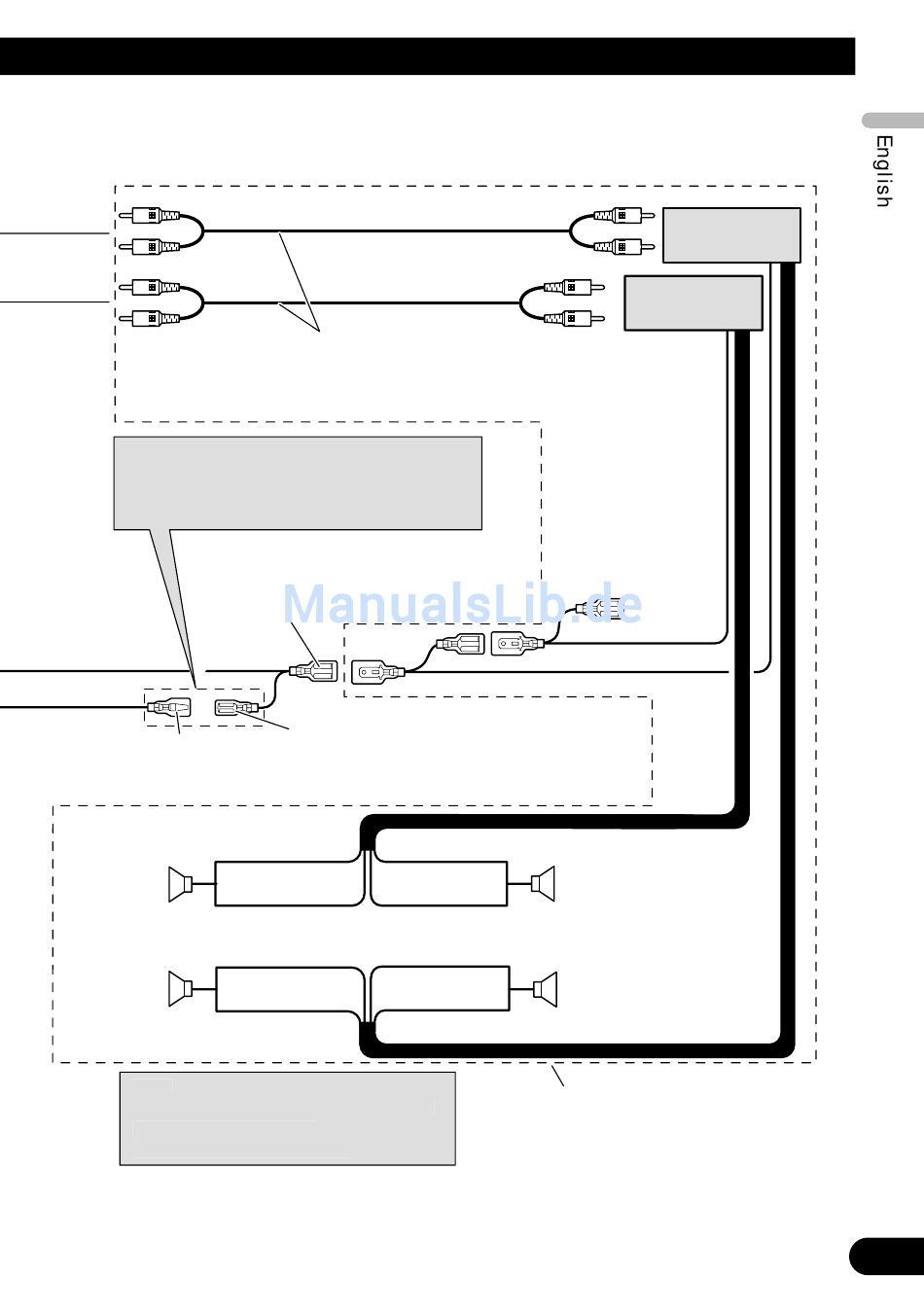

Perform these connections when using the
optional amplifier.
Power amp
(sold separately)
Fig. 3
