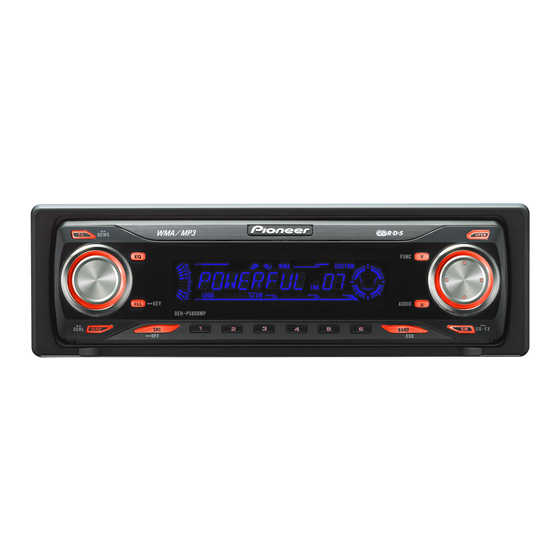

Pioneer DEH-P5800MP Installationsanleitung

DEH-P5800MP
This product conforms to new cord colors.
Los colores de los cables de este producto se confor-
man con un nuevo código de colores.
Dieses Produkt entspricht den neuen Kabelfarben.
Le code de couleur des câbles utilisé pour ce produit est
nouveau.
Questo prodotto è conforme ai nuovi codici colori.
De kleuren van de snoeren van dit toestel zijn gewijzigd.
чÌÌÓ ÛÒÚÓÈÒÚ‚Ó ÒÓÓÚ‚ÂÚÒÚ‚ÛÂÚ ÌÓ‚˚Ï
Ú·ӂ‡ÌËflÏ Í ˆ‚ÂÚÛ ÔÓ‚Ó‰Ó‚.
Printed in Thailand
Imprimé en Thaïlande
<CRD4052-A/N> EW <KNNZX> <05H00000>

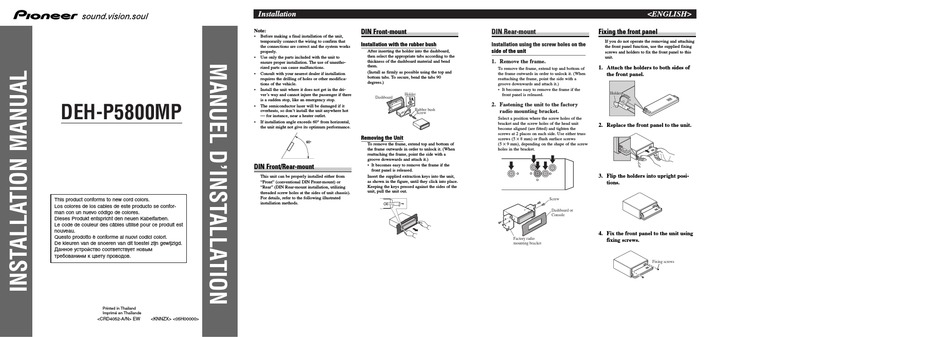

Installation
Note: DIN Front-mount
• Before making a final installation of the unit,
temporarily connect the wiring to confirm that
Installation with the rubber bush
the connections are correct and the system works
After inserting the holder into the dashboard,
properly.
then select the appropriate tabs according to the
• Use only the parts included with the unit to
thickness of the dashboard material and bend
ensure proper installation. The use of unautho-
them.
rized parts can cause malfunctions.
(Install as firmly as possible using the top and
• Consult with your nearest dealer if installation
bottom tabs. To secure, bend the tabs 90
requires the drilling of holes or other modifica-
degrees.)
tions of the vehicle.
• Install the unit where it does not get in the dri-
ver's way and cannot injure the passenger if there Holder
Dashboard
is a sudden stop, like an emergency stop.
182
• The semiconductor laser will be damaged if it
53 Rubber bush
overheats, so don't install the unit anywhere hot
Screw
— for instance, near a heater outlet.
• If installation angle exceeds 60° from horizontal,
the unit might not give its optimum performance.
Removing the Unit
60°
To remove the frame, extend top and bottom of
the frame outwards in order to unlock it. (When
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
DIN Front/Rear-mount
front panel is released.
This unit can be properly installed either from Insert the supplied extraction keys into the unit,
as shown in the figure, until they click into place.
"Front" (conventional DIN Front-mount) or
Keeping the keys pressed against the sides of the
"Rear" (DIN Rear-mount installation, utilizing
unit, pull the unit out.
threaded screw holes at the sides of unit chassis).
For details, refer to the following illustrated
installation methods.
<ENGLISH>
DIN Rear-mount Fixing the front panel
If you do not operate the removing and attaching
Installation using the screw holes on the
the front panel function, use the supplied fixing
side of the unit
screws and holders to fix the front panel to this
unit.
1. Remove the frame.
1. Attach the holders to both sides of
To remove the frame, extend top and bottom of
the frame outwards in order to unlock it. (When the front panel.
reattaching the frame, point the side with a
groove downwards and attach it.)
• It becomes easy to remove the frame if the
Holder
front panel is released.
2. Fastening the unit to the factory
radio mounting bracket.
Select a position where the screw holes of the
bracket and the screw holes of the head unit
2. Replace the front panel to the unit.
become aligned (are fitted) and tighten the
screws at 2 places on each side. Use either truss
screws (5 × 8 mm) or flush surface screws
(5 × 9 mm), depending on the shape of the screw
holes in the bracket.
3. Flip the holders into upright posi-
tions.
Screw
Dashboard or
Console
4. Fix the front panel to the unit using
Factory radio
fixing screws.
mounting bracket
Fixing screws
