PRODUCT DESCRIPTION

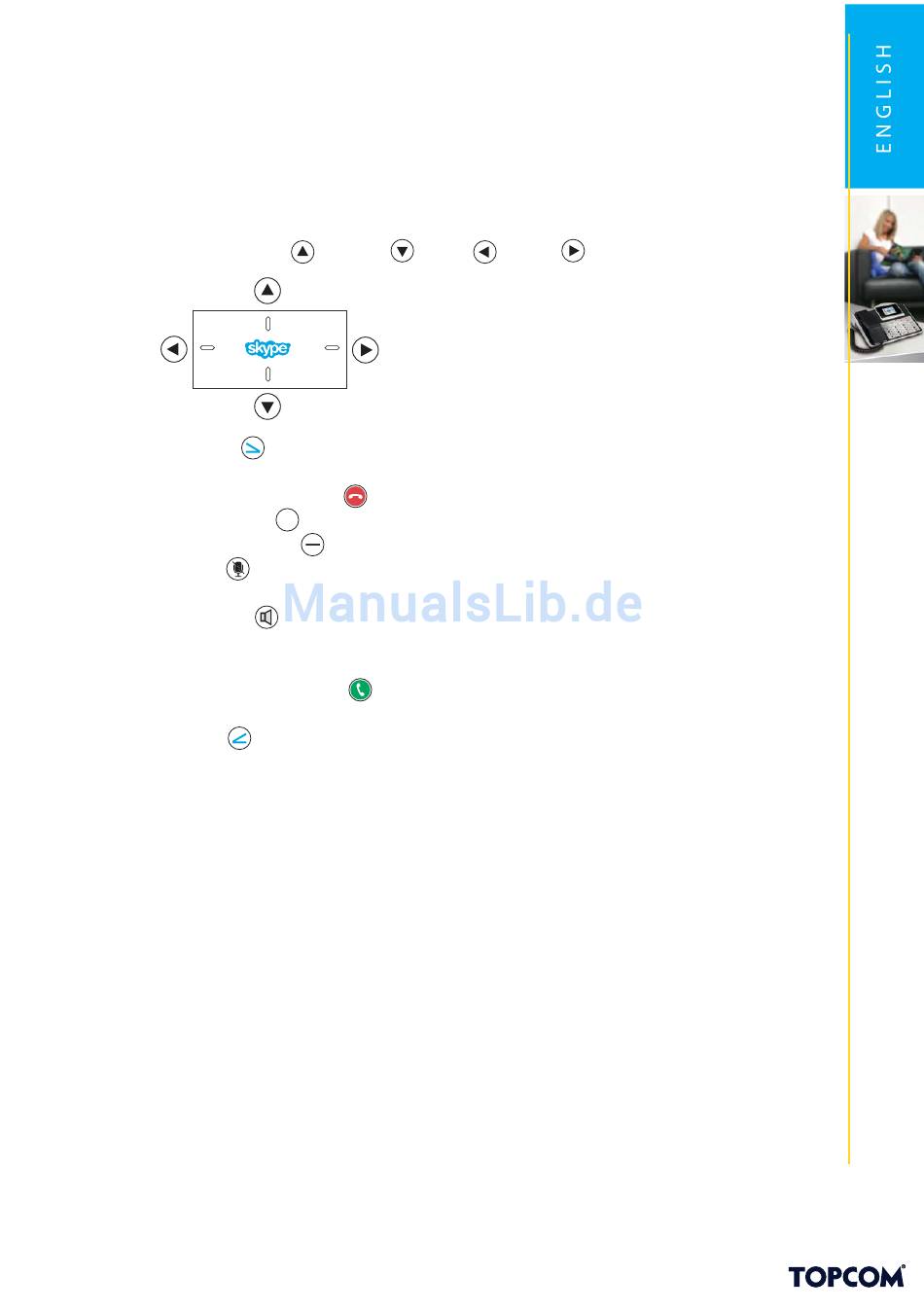

(See folded cover page)
1. Adjustable display
2. Green power LED
3. Red Message indication LED
4. Navigation key ( up
5. Right soft key
- Press this key to apply the function in the lower right display.
6. On hook button (end call)
7. Volume up button
8. Volume down button
9. Mute button
- Disable the microphone
10. Speaker button
- Enable/disable the hands free function
11. Alphanumeric keypad
12. Off hook button (start call)
13. Hands free speaker
14. Left soft key
- Press this key to apply the function in the lower left display.
15. Hook switch
16. WAN - Ethernet connection
- To connect to a broad band Router (or Ethernet Modem)
17. LAN - connection
- To connect to a computer or other network device
18. USB - connection: not used
19. Power Jack
- To connect the power adapter (5V DC / 2A)
20. RJ9 - connection
- To connect the curl cord of the handset
/ down / left
+
5
/ right )
