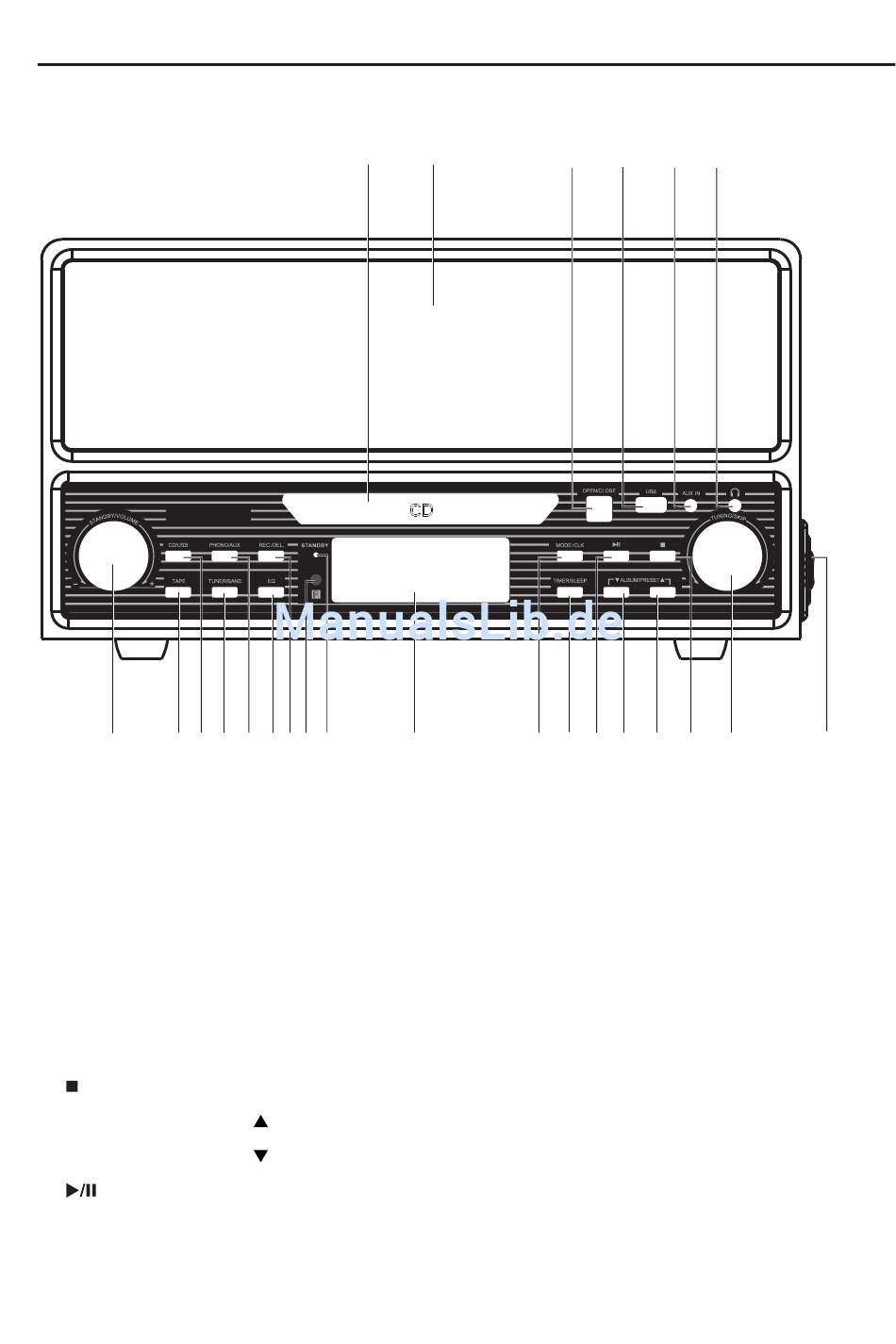

7. Operating elements

a) Front

24 23 22
1 CD drawer
2 Speaker panel
3 OPEN/CLOSE button
4 USB port
5 AUX IN socket
6 Headphone socket
7 Audio cassette drawer (with eject button)
8 TUNING/SKIP wheel
9 button
10 ALBUM/PRESET button
11 ALBUM/PRESET button
12 button
34
1
21 20 19 18 17 16
2 3
15 14 13
13 TIMER/SLEEP button
14 MODE/CLK button
15 LCD display
16 STANDBY LED
17 Infrared sensor
18 REC./DEL. button
19 EQ button
20 PHONO/AUX button
21 TUNER/BAND button
22 CD/USB button
23 TAPE button
24 STANDBY/VOLUME wheel
4 5 6
12 11 10 9 8 7
