4.

ENERGY METER

The energy cost measuring device is intended for measuring and analysing consumption details of electrical devices. The measuring
device is connected easily between the mains socket and the electric device and requires no additional installation. It is only to be
used with standard domestic mains sockets with a nominal voltage of 230 V/AC. The max. nominal performance must not exceed
3680 watts.
To calculate the costs, the current valid electricity rate can be entered. Further, the device provides a cost forecast per day/month/
year. The consumption details can be displayed and adjusted on the device even when it is unplugged from a power socket. To do
this, the device contains two button cell batteries. The device is only to be used with the specified batteries.
The measuring device is not officially calibrated and therefore must not be used for billing purposes.

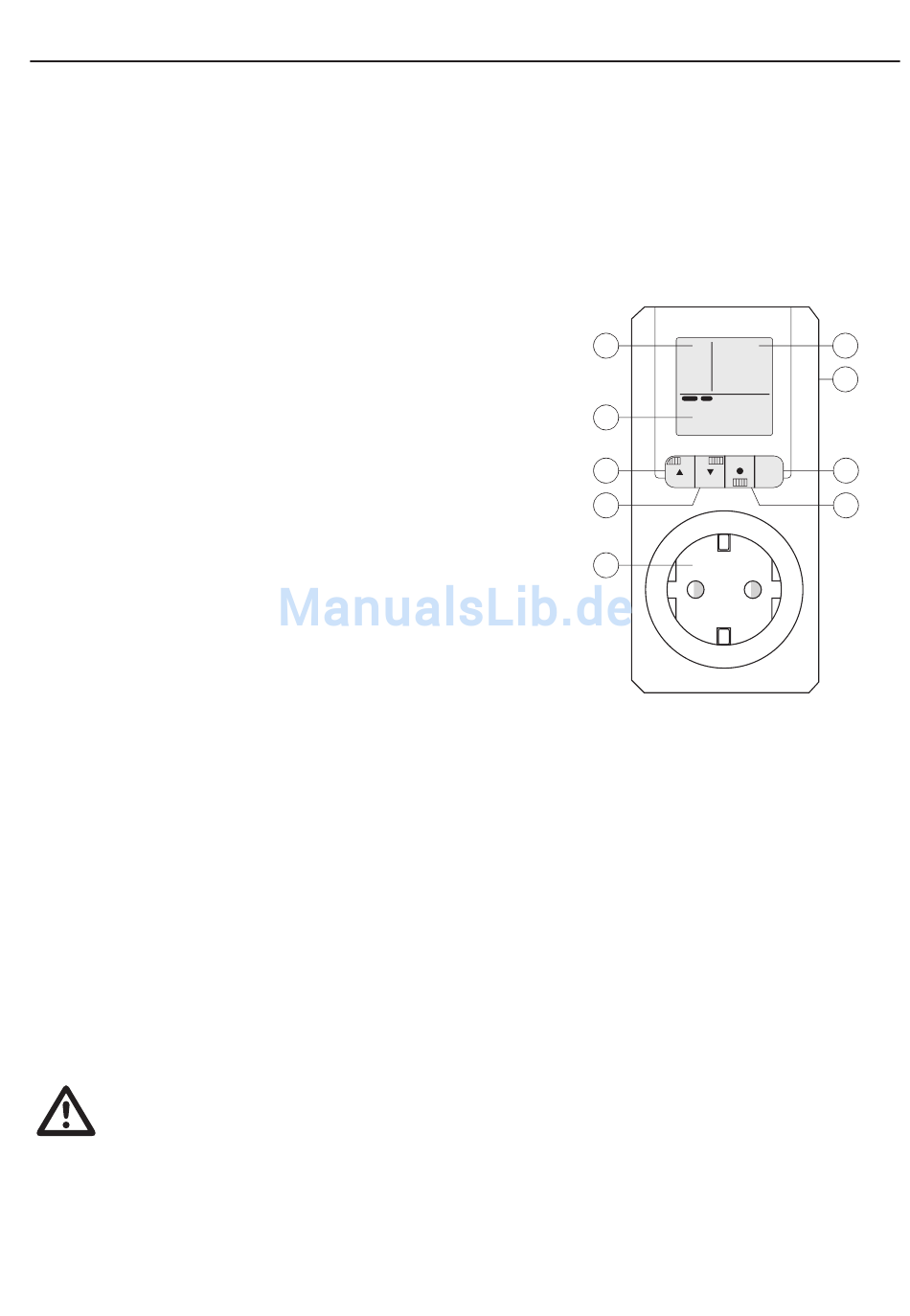

Description of the Parts

1. Protective-earth contact socket with child protection
2. Control and setting key
3. Control and setting key
4. Display: Display area "Bottom"
5. Display: Display area "Left"
6. Display: Display area "Right"
7. Rear battery compartment
8. "SET" key for parameter setting
9. Control and setting key

Display indications and Symbols

▲
▼
●
SET
MAX
POWER FACTOR
TOTAL
COST
TIME
FORECAST
DAY
MONTH
YEAR
V
A
Hz
W
COS
kWh

Inserting/Replacing the Batteries

Before using for the first time or when the display does not show any values after pressing the button, the coin cell batteries must
be inserted or replaced. The batteries are used to ensure that the set parameters and measured values are saved in the device
even when it is unplugged.
The battery compartment (7) must only be opened if the device is unplugged.
16
▼(downwards)
▲(upwards)
● (Confirmation)
Up symbol
Down symbol
Confirmation symbol
Adjustment
Maximum value display
Display of the power factor CosPhi
Total value
Cost display
The actual operating time for the electric consumer load, e. g. forfridges.
Calculated cost forecast
Cost forecast per day
Cost forecast per month
Cost forecast per year
Volt (unit for electric tension)
Ampere (unit for electric current)
Hertz (unit for frequency)
Watt (unit for effective power)
Power factor (factor for the phase displacement of V and A)
Kilowatt hour (unit for the electrical work, consumed power per hour)
5
230 3680
V W W
6.20
TO TA L k W h
4
3
SET
2
1
6
7
8
9
