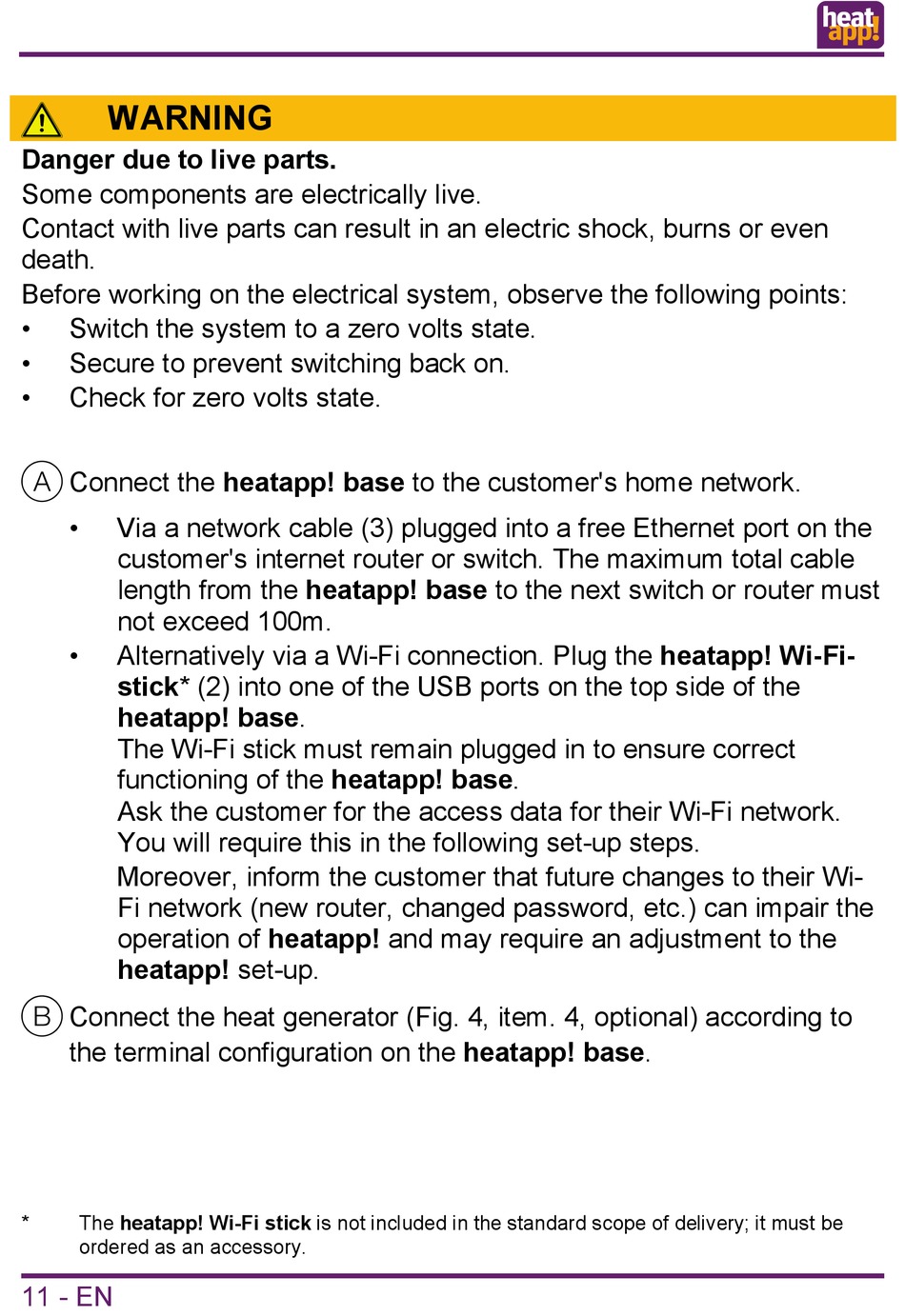

heatapp! BASE Installationsanleitung Seite 46

WARNING
Danger due to live parts.
Some components are electrically live.
Contact with live parts can result in an electric shock, burns or even
death.
Before working on the electrical system, observe the following points:
• Switch the system to a zero volts state.
• Secure to prevent switching back on.
• Check for zero volts state.
A Connect the heatapp! base to the customer's home network.
• Via a network cable (3) plugged into a free Ethernet port on the
customer's internet router or switch. The maximum total cable
length from the heatapp! base to the next switch or router must
not exceed 100m.
• Alternatively via a Wi-Fi connection. Plug the heatapp! Wi-Fi-
stick* (2) into one of the USB ports on the top side of the
heatapp! base.
The Wi-Fi stick must remain plugged in to ensure correct
functioning of the heatapp! base.
Ask the customer for the access data for their Wi-Fi network.
You will require this in the following set-up steps.
Moreover, inform the customer that future changes to their Wi-
Fi network (new router, changed password, etc.) can impair the
operation of heatapp! and may require an adjustment to the
heatapp! set-up.
B Connect the heat generator (Fig. 4, item. 4, optional) according to
the terminal configuration on the heatapp! base.
* The heatapp! Wi-Fi stick is not included in the standard scope of delivery; it must be
ordered as an accessory.
11 - EN
