heatapp! BASE Installationsanleitung Seite 44

3.2.2 Installation

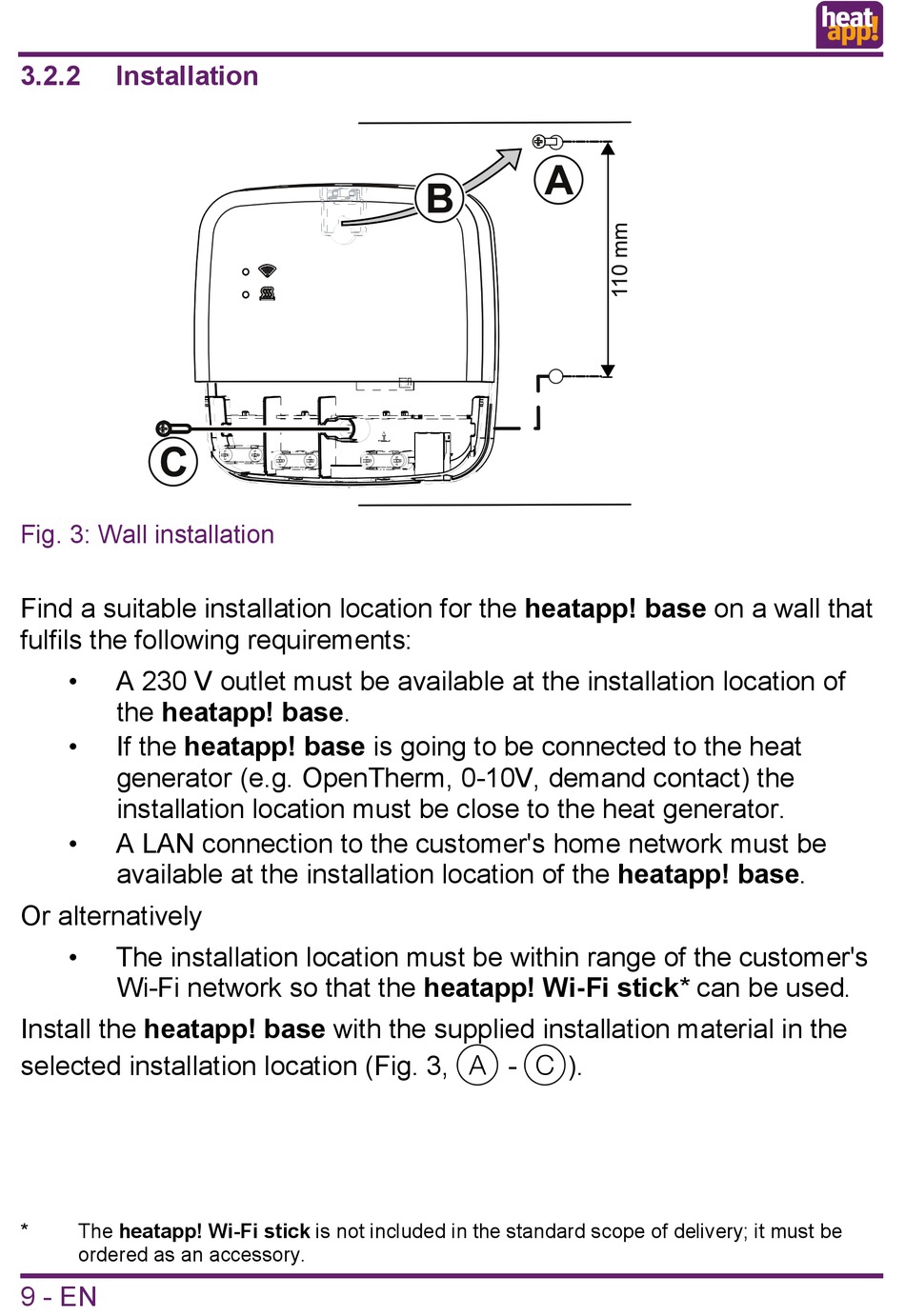

Fig. 3: Wall installation
Find a suitable installation location for the heatapp! base on a wall that
fulfils the following requirements:
• A 230 V outlet must be available at the installation location of
the heatapp! base.
If the heatapp! base is going to be connected to the heat
•
generator (e.g. OpenTherm, 0-10V, demand contact) the
installation location must be close to the heat generator.
• A LAN connection to the customer's home network must be
available at the installation location of the heatapp! base.
Or alternatively
• The installation location must be within range of the customer's
Wi-Fi network so that the heatapp! Wi-Fi stick* can be used.
Install the heatapp! base with the supplied installation material in the
selected installation location (Fig. 3, A - C).
* The heatapp! Wi-Fi stick is not included in the standard scope of delivery; it must be
ordered as an accessory.
9 - EN
