TO CONFIGURE THE FURY6
FOR USE AS A MITRE SAW
WARNING: Only carry out this procedure with the machine
disconnected from the power source.
Caution: The Fury6 has many built in safety features and
safety interlocks. It is important that the following instructions,
and those found on the label attached to the machine table
are read, understood and acted upon. Failure to carry out the
configuration procedure could result in damage to the machine
and/or injury to the operator.
• Loosen the table height adjustment screw. (Fig.4)
• Raise the table top to its upmost position and tighten the
height adjustment screw. (Fig. 5)
• Slightly push down on the Cutting Head Handle.
• Pull out the Cutting Head Latching Pin and allow the Cutting
Head to rise to its upmost position. (Fig. 6)
• Remove the Auxiliary Lower Blade Guard and store safely for
future use.
The Fury6 is now ready to use as a Mitre Saw. (Fig. 7)
WORKPIECE SUPPORTS (Fig. 8)
Workpiece supports can be fitted to both sides of the machine
base if required.
• Loosen the relevant Workpiece Retaining Screw located in a
socket at the top front of the machine base.
• Insert the Workpiece Support into the holes machined in the
base.
Note: The Workpiece Support should be pushed 'fully home'
into the machine base.
Correct installation will require approximately 65mm of the
Workpiece Support to slide into the machine base.
• Fasten the Workpiece Support into the base by tightening
the Retaining Screw.
Workpiece Supports can be very useful in providing extra
support for long workpieces when using the Fury6 in Mitre Saw
configuration.

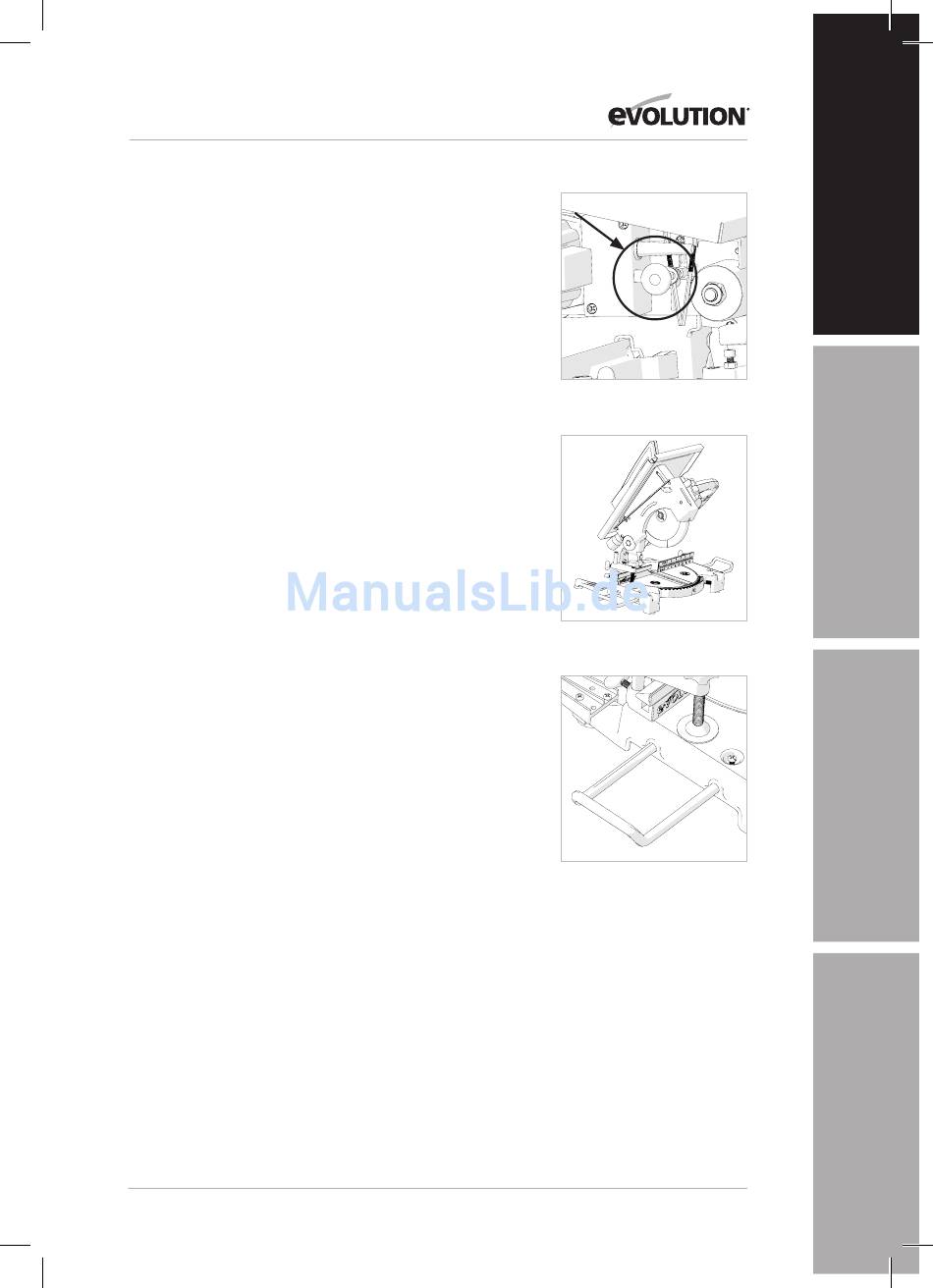

Fig. 6
Fig. 7
Fig. 8
