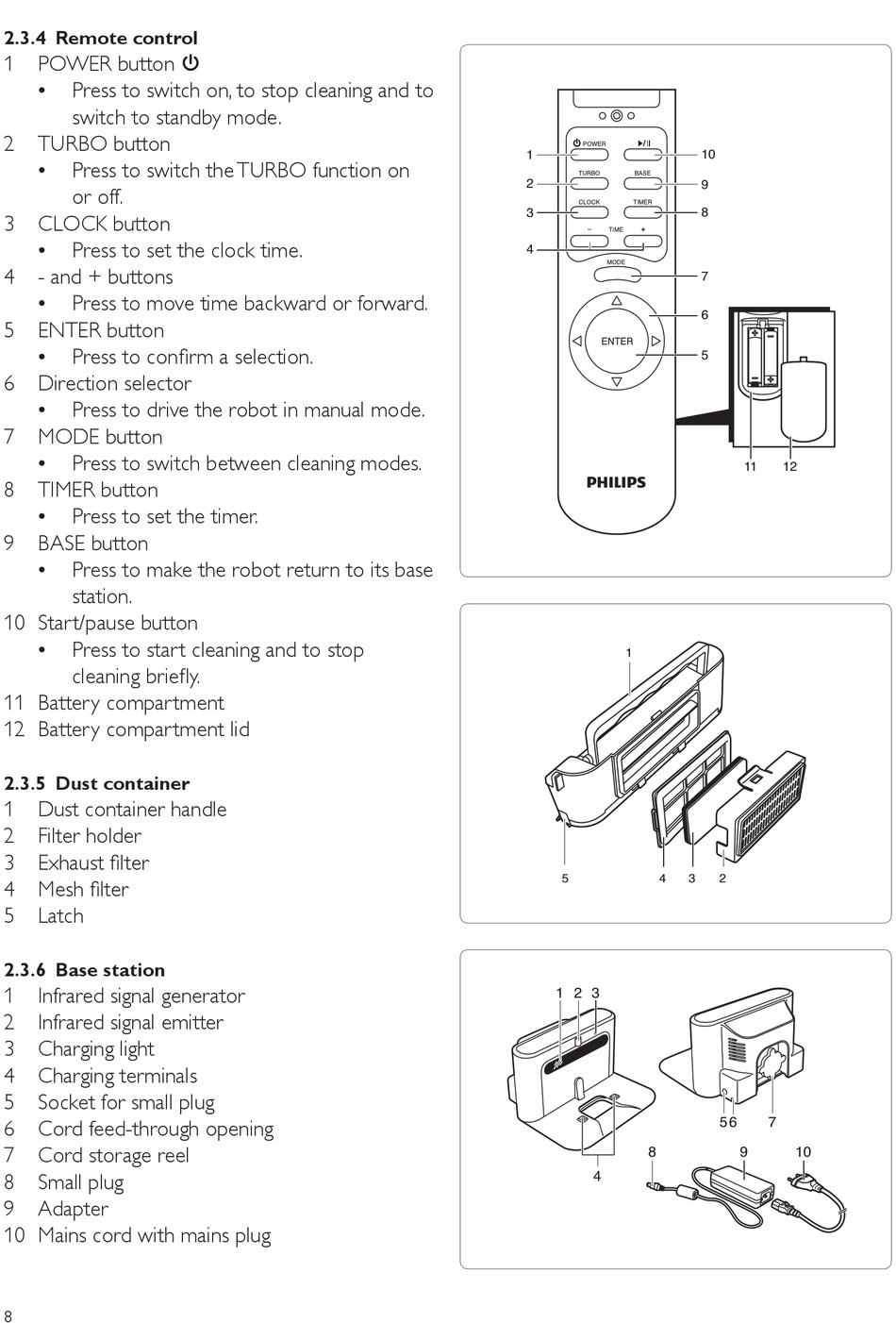

2.3.4 Remote control
1 POWER button 3
•
Press to switch on, to stop cleaning and to
switch to standby mode.
2 TURBO button
•
Press to switch the TURBO function on
or off.
3 CLOCK button
•
Press to set the clock time.
4 - and + buttons
•
Press to move time backward or forward.
5 ENTER button
•
Press to confirm a selection.
6 Direction selector
• Press to drive the robot in manual mode.
7 MODE button
•
Press to switch between cleaning modes.
8 TIMER button
•
Press to set the timer.
9 BASE button
•
Press to make the robot return to its base
station.
10 Start/pause button
•
Press to start cleaning and to stop
cleaning briefly.
11 Battery compartment
12 Battery compartment lid

2.3.5 Dust container

1 Dust container handle
2 Filter holder
3 Exhaust filter
4 Mesh filter
5 Latch
2.3.6 Base station
1 infrared signal generator
2 infrared signal emitter
3 Charging light
4 Charging terminals
5 socket for small plug
6 Cord feed-through opening
7 Cord storage reel
8 small plug
9 Adapter
10 Mains cord with mains plug
8
1
2
3
4
1
5 4 3
1 2 3
8
4
10
9
8
7
6
5
11 12
2
5 6 7
9 10
