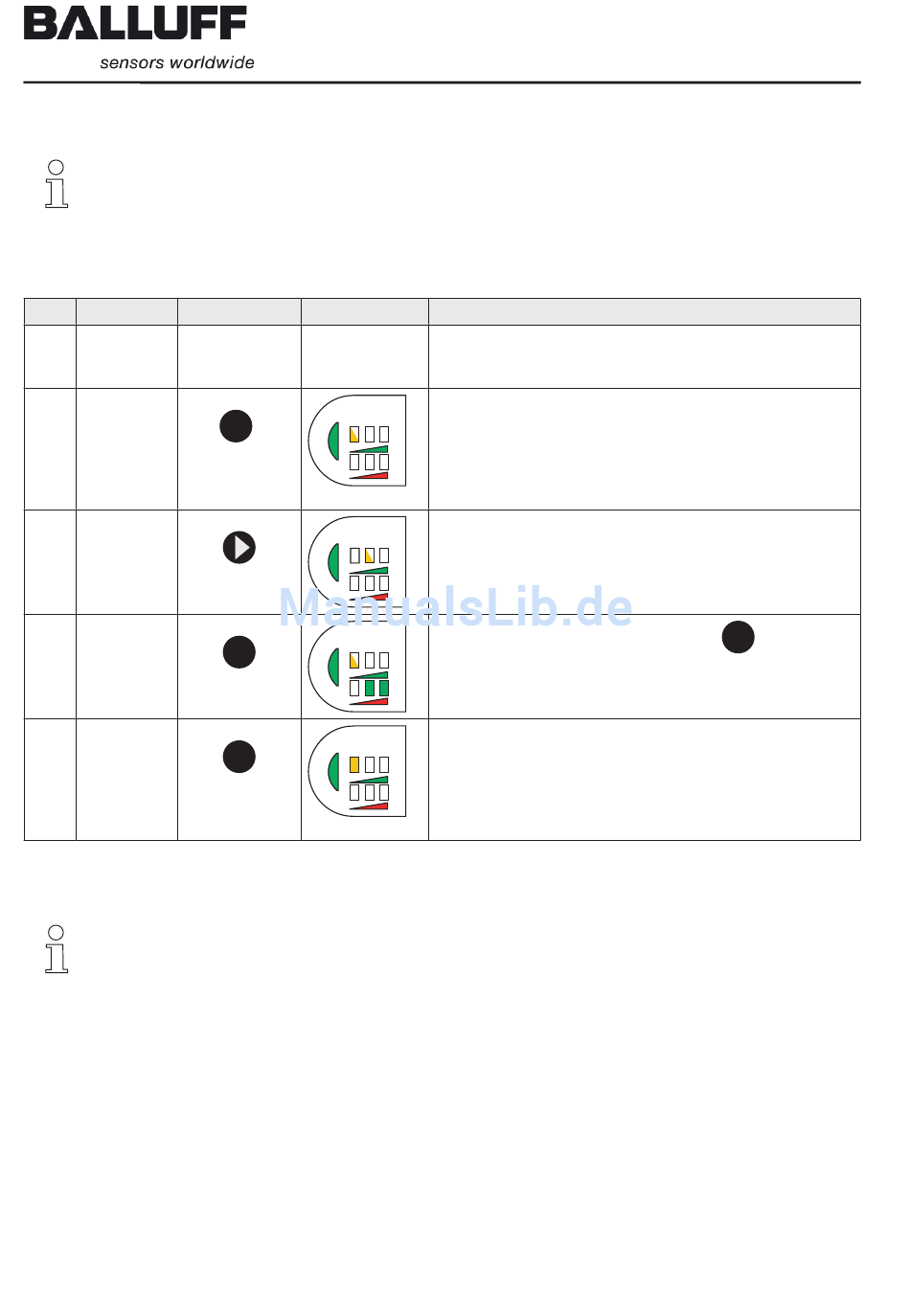

7.3.5 Menu „S": Scan a single colour range
INFORMATION
• Function for the scanning of an inhomogeneous colour surface.
• If a colour is scanned, all previously taught and scanned colours / colour ranges are deleted.
• After the scanning process, the yellow LED „C" lights up when the switching output „Q" is
active a colour has been detected (when switching mode = N.O. = Factory setting is selected).
Procedure:
Step Menu item Activity
1 Operating Position object
mode (no
menu item)
2
until LED „C"
(yellow) flashes
3
4 Scan colour
range
5
7.3.6 Menu „S+": Scan, add, link further colour ranges
INFORMATION
• The „S+" („Scan +") function makes it possible to scan 1 to 4 further colour ranges and extend
the colour range by up to 4 steps.
• When a colour range is scanned with „S+" (Scan+), previously taught and scanned colours
remain stored.
• If more than 5 colour ranges are taught, the oldest is erased (FIFO).
• After the scanning process, the yellow LED „C" lights up when the switching output „Q" is
active a colour has been detected (when switching mode = N.O. = Factory setting is selected).
36 36
Picture follows Remark
Press
C S +/F
SET
> 3 s
Press
C S
+/F
2x
Press
C S
+/F
SET
and keep
pressed
Release
C S +/F
SET
Observe operating parameters such as scanning distance,
direction of movement, inclination etc. (see chapter 5
„Mounting").
LED „C" (yellow) flashes, when time lock is open and
configuration mode is activated.
Menu „Scan colour range" is selected LED „S" (yellow)
flashes.
The colour range is scanned as long as
Colour range is stored.
Sensor is ready for use.
LED „C" (yellow) lights up, when colour is detected / swit-
ching output „Q" is active (when switching mode = N.O. =
Factory setting is selected).
