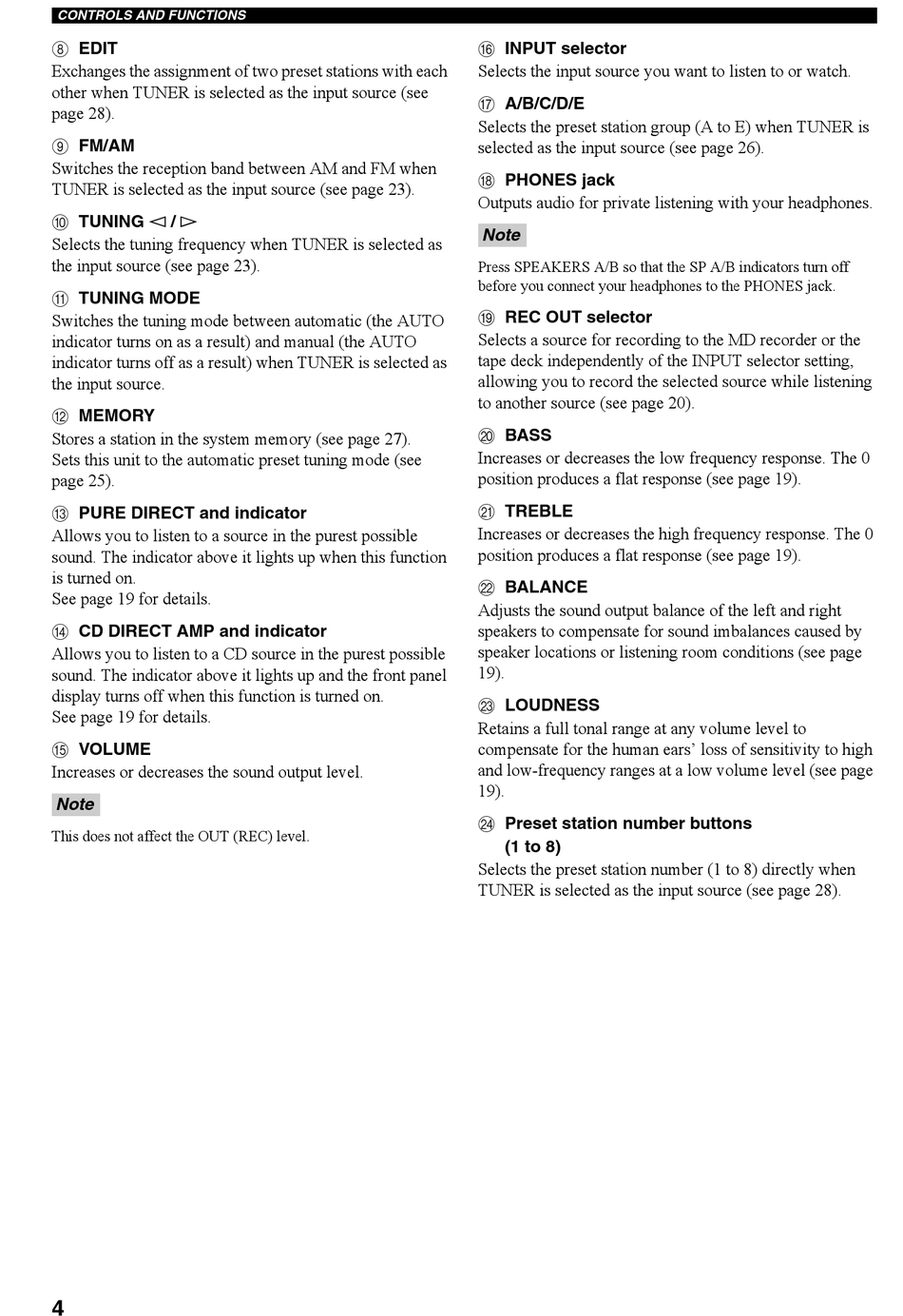

CONTROLS AND FUNCTIONS
8 EDIT
Exchanges the assignment of two preset stations with each
other when TUNER is selected as the input source (see
page 28).
9 FM/AM
Switches the reception band between AM and FM when
TUNER is selected as the input source (see page 23).
0 TUNING l / h
Selects the tuning frequency when TUNER is selected as
the input source (see page 23).
A TUNING MODE
Switches the tuning mode between automatic (the AUTO
indicator turns on as a result) and manual (the AUTO
indicator turns off as a result) when TUNER is selected as
the input source.
B MEMORY
Stores a station in the system memory (see page 27).
Sets this unit to the automatic preset tuning mode (see
page 25).
C PURE DIRECT and indicator
Allows you to listen to a source in the purest possible
sound. The indicator above it lights up when this function
is turned on.
See page 19 for details.
D CD DIRECT AMP and indicator
Allows you to listen to a CD source in the purest possible
sound. The indicator above it lights up and the front panel
display turns off when this function is turned on.
See page 19 for details.
E VOLUME
Increases or decreases the sound output level.
Note
This does not affect the OUT (REC) level.
4
F INPUT selector
Selects the input source you want to listen to or watch.
G A/B/C/D/E
Selects the preset station group (A to E) when TUNER is
selected as the input source (see page 26).
H PHONES jack
Outputs audio for private listening with your headphones.
Note
Press SPEAKERS A/B so that the SP A/B indicators turn off
before you connect your headphones to the PHONES jack.
I REC OUT selector
Selects a source for recording to the MD recorder or the
tape deck independently of the INPUT selector setting,
allowing you to record the selected source while listening
to another source (see page 20).
J BASS
Increases or decreases the low frequency response. The 0
position produces a flat response (see page 19).
K TREBLE
Increases or decreases the high frequency response. The 0
position produces a flat response (see page 19).
L BALANCE
Adjusts the sound output balance of the left and right
speakers to compensate for sound imbalances caused by
speaker locations or listening room conditions (see page
19).
M LOUDNESS
Retains a full tonal range at any volume level to
compensate for the human ears' loss of sensitivity to high
and low-frequency ranges at a low volume level (see page
19).
N Preset station number buttons
(1 to 8)
Selects the preset station number (1 to 8) directly when
TUNER is selected as the input source (see page 28).
