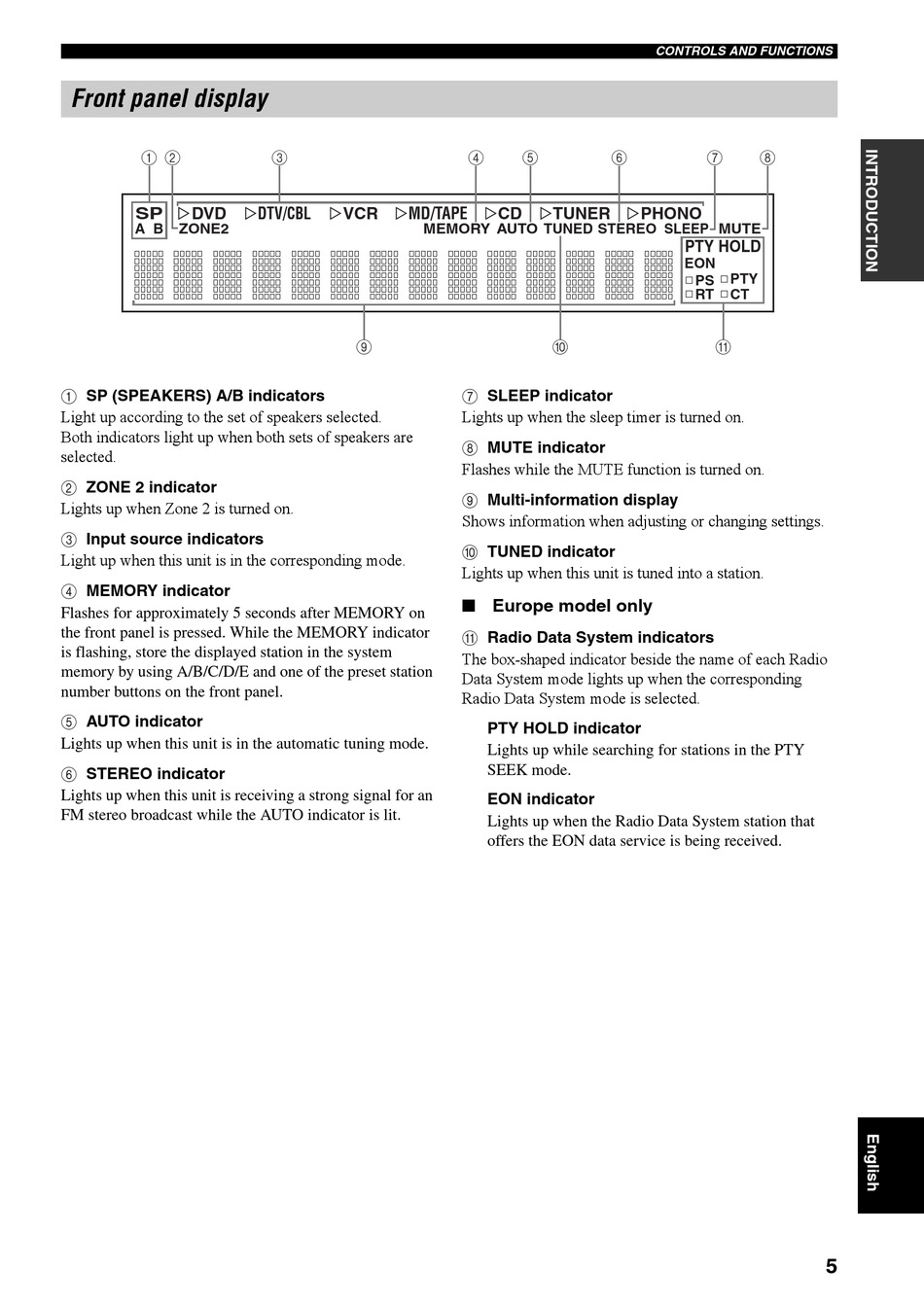

Front panel display

1 2
SP DVD
A B ZONE2 ZONE3
1 SP (SPEAKERS) A/B indicators
Light up according to the set of speakers selected.
Both indicators light up when both sets of speakers are
selected.
2 ZONE 2 indicator
Lights up when Zone 2 is turned on.
3 Input source indicators
Light up when this unit is in the corresponding mode.
4 MEMORY indicator
Flashes for approximately 5 seconds after MEMORY on
the front panel is pressed. While the MEMORY indicator
is flashing, store the displayed station in the system
memory by using A/B/C/D/E and one of the preset station
number buttons on the front panel.
5 AUTO indicator
Lights up when this unit is in the automatic tuning mode.
6 STEREO indicator
Lights up when this unit is receiving a strong signal for an
FM stereo broadcast while the AUTO indicator is lit.
3
DTV/CBL MD/TAPE
VCR
MEMORY AUTO TUNED STEREO SLEEP
9
4 5 6
CD TUNER
0
7 SLEEP indicator
Lights up when the sleep timer is turned on.
8 MUTE indicator
Flashes while the MUTE function is turned on.
9 Multi-information display
Shows information when adjusting or changing settings.
0 TUNED indicator
Lights up when this unit is tuned into a station.
■ Europe model only
A Radio Data System indicators
The box-shaped indicator beside the name of each Radio
Data System mode lights up when the corresponding
Radio Data System mode is selected.
PTY HOLD indicator
Lights up while searching for stations in the PTY
SEEK mode.
EON indicator
Lights up when the Radio Data System station that
offers the EON data service is being received.
