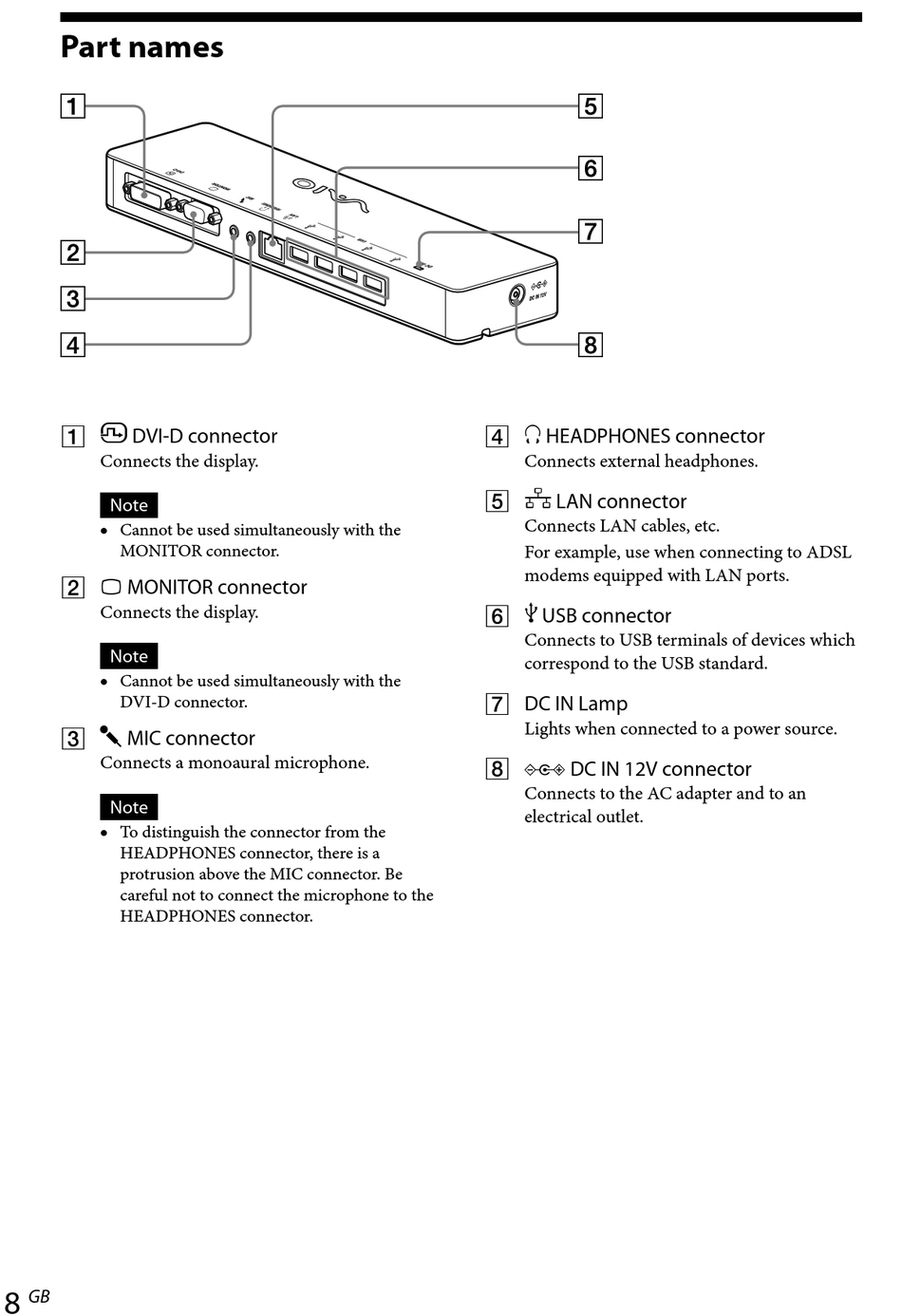

Part names

  DVI-D connector
Connects the display.
Note
Cannot be used simultaneously with the

MONITOR connector.
  MONITOR connector
Connects the display.
Note
Cannot be used simultaneously with the

DVI-D connector.
  MIC connector
Connects a monoaural microphone.
Note
To distinguish the connector from the

HEADPHONES connector, there is a
protrusion above the MIC connector. Be
careful not to connect the microphone to the
HEADPHONES connector.
8
GB
  HEADPHONES connector
Connects external headphones.
  LAN connector
Connects LAN cables, etc.
For example, use when connecting to ADSL
modems equipped with LAN ports.
  USB connector
Connects to USB terminals of devices which
correspond to the USB standard.
 DC IN Lamp
Lights when connected to a power source.
  DC IN 1V connector
Connects to the AC adapter and to an
electrical outlet.
