6.2

Mounting with fixing rails (standard installation)

c
l
k

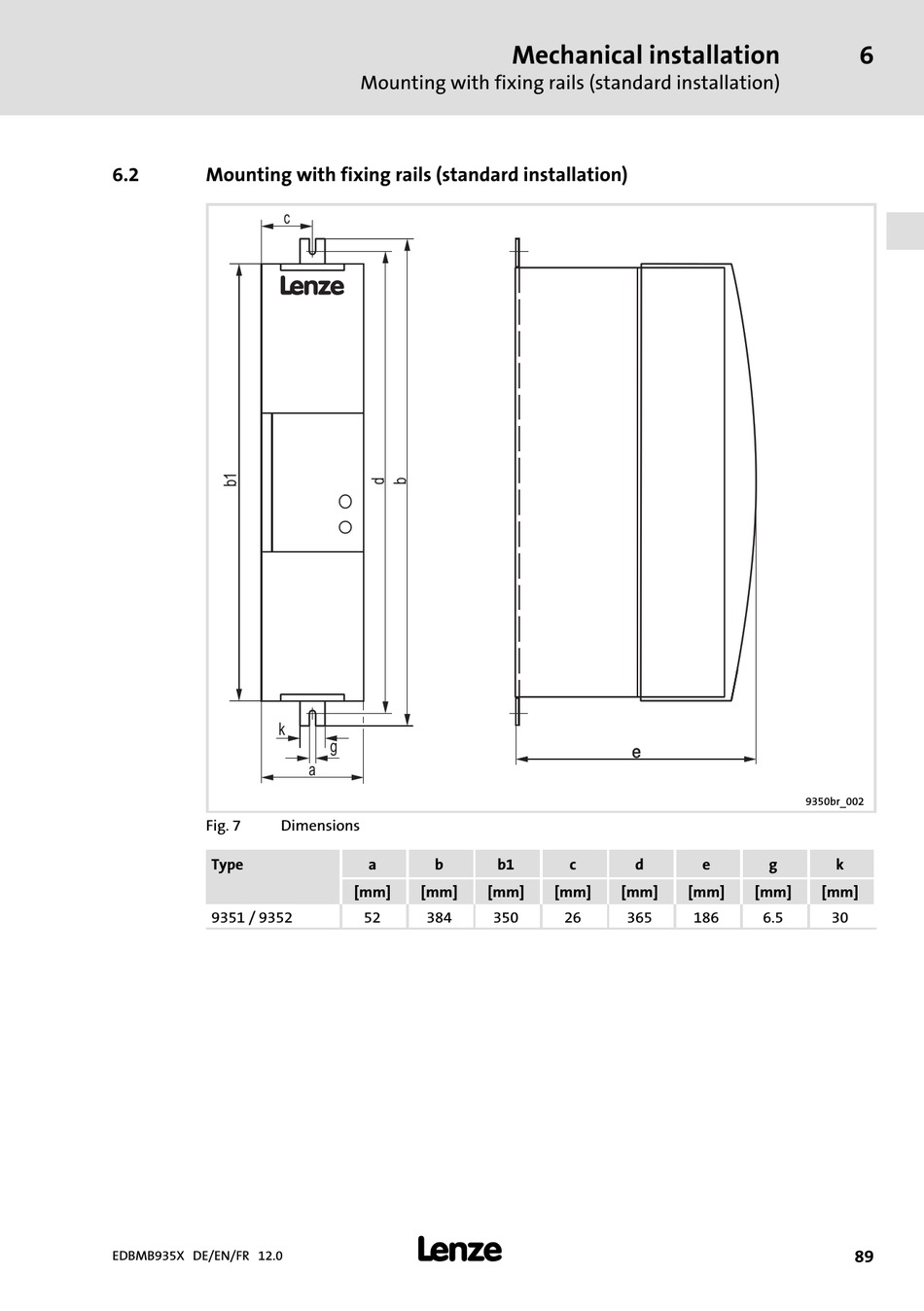

Fig. 7 Dimensions
Type
9351 / 9352
EDBMB935X DE/EN/FR 12.0
Mounting with fixing rails (standard installation)
g
a
a b
[mm] [mm]
52 384
l
Mechanical installation
e e
b1 c d
[mm] [mm] [mm]
350 26 365
6
9350br_002
e g k
[mm] [mm] [mm]
186 6.5 30
89
