Dimensions in mm
dHLS 85 luminaire
dHLS 85 luminaire with
compensating capacitor box
L 430 mounting stirrup
X = fixing dimensions

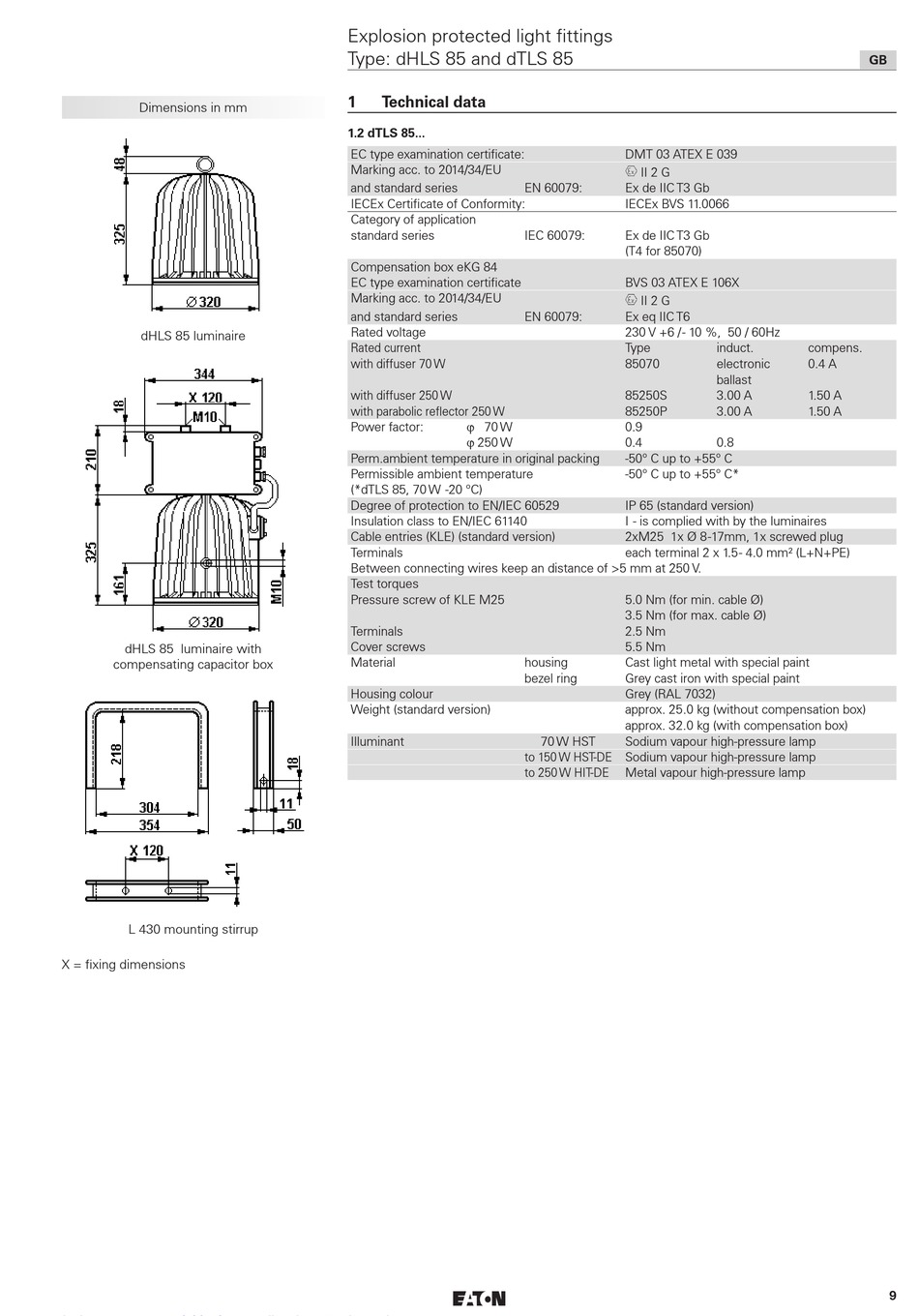

Explosion protected light fittings
Type: dHLS 85 and dTLS 85
1
Technical data
1.2 dTLS 85...
EC type examination certificate:
Marking acc. to 2014/34/EU
and standard series
IECEx Certificate of Conformity:
Category of application
standard series
Compensation box eKG 84
EC type examination certificate
Marking acc. to 2014/34/EU
and standard series
Rated voltage
Rated current
with diffuser 70 W
with diffuser 250 W
with parabolic reflector 250 W
Power factor:
ϕ 70 W
ϕ 250 W
Perm.ambient temperature in original packing
Permissible ambient temperature
(*dTLS 85, 70 W -20 °C)
Degree of protection to EN/IEC 60529
Insulation class to EN/IEC 61140
Cable entries (KLE) (standard version)
Terminals
Between connecting wires keep an distance of >5 mm at 250 V.
Test torques
Pressure screw of KLE M25
Terminals
Cover screws
Material
Housing colour
Weight (standard version)
Illuminant
DMT 03 ATEX E 039
II 2 G
EN 60079:
Ex de IIC T3 Gb
IECEx BVS 11.0066
IEC 60079:
Ex de IIC T3 Gb
(T4 for 85070)
BVS 03 ATEX E 106X
II 2 G
EN 60079:
Ex eq IIC T6
230 V +6 / - 10 %, 50 / 60Hz
Type
85070
85250S
85250P
0.9
0.4
-50° C up to +55° C
-50° C up to +55° C*
IP 65 (standard version)
I - is complied with by the luminaires
2xM25 1x Ø 8 -17mm, 1x screwed plug
each terminal 2 x 1.5 - 4.0 mm² (L+N+PE)
5.0 Nm (for min. cable Ø)
3.5 Nm (for max. cable Ø)
2.5 Nm
5.5 Nm
housing
Cast light metal with special paint
bezel ring
Grey cast iron with special paint
Grey (RAL 7032)
approx. 25.0 kg (without compensation box)
approx. 32.0 kg (with compensation box)
70 W HST
Sodium vapour high-pressure lamp
to 150 W HST-DE Sodium vapour high-pressure lamp
to 250 W HIT-DE
Metal vapour high-pressure lamp
GB
induct.
compens.
electronic
0.4 A
ballast
3.00 A
1.50 A
3.00 A
1.50 A
0.8
9
