The machine may be connected only to a properly
s
earthed power system. The socket and extension
cable must have a functional protective conductor.
If the cable is damaged or cut through while work-
s
ing, do not touch the cable but immediately pull the
mains plug. Never use the machine with a dam-
aged cable.
Always direct the cable to the rear away from the
s
machine.
Insert the mains plug into the socket only when the
s
machine is switched off.
Take hold of the drill stand only by the insulat-
s
ed handles when the tool could come in con-
tact with a hidden electric line or its own
mains cable. Contact with a voltage carrying line
can place the metal parts of the machine under
voltage and lead to an electrical shock.
Never leave the machine unattended while in oper-
s
ation!
Never allow children to use the machine.
s
Bosch is able to ensure flawless functioning of the
s
machine only if the original accessories intended
for it are used.

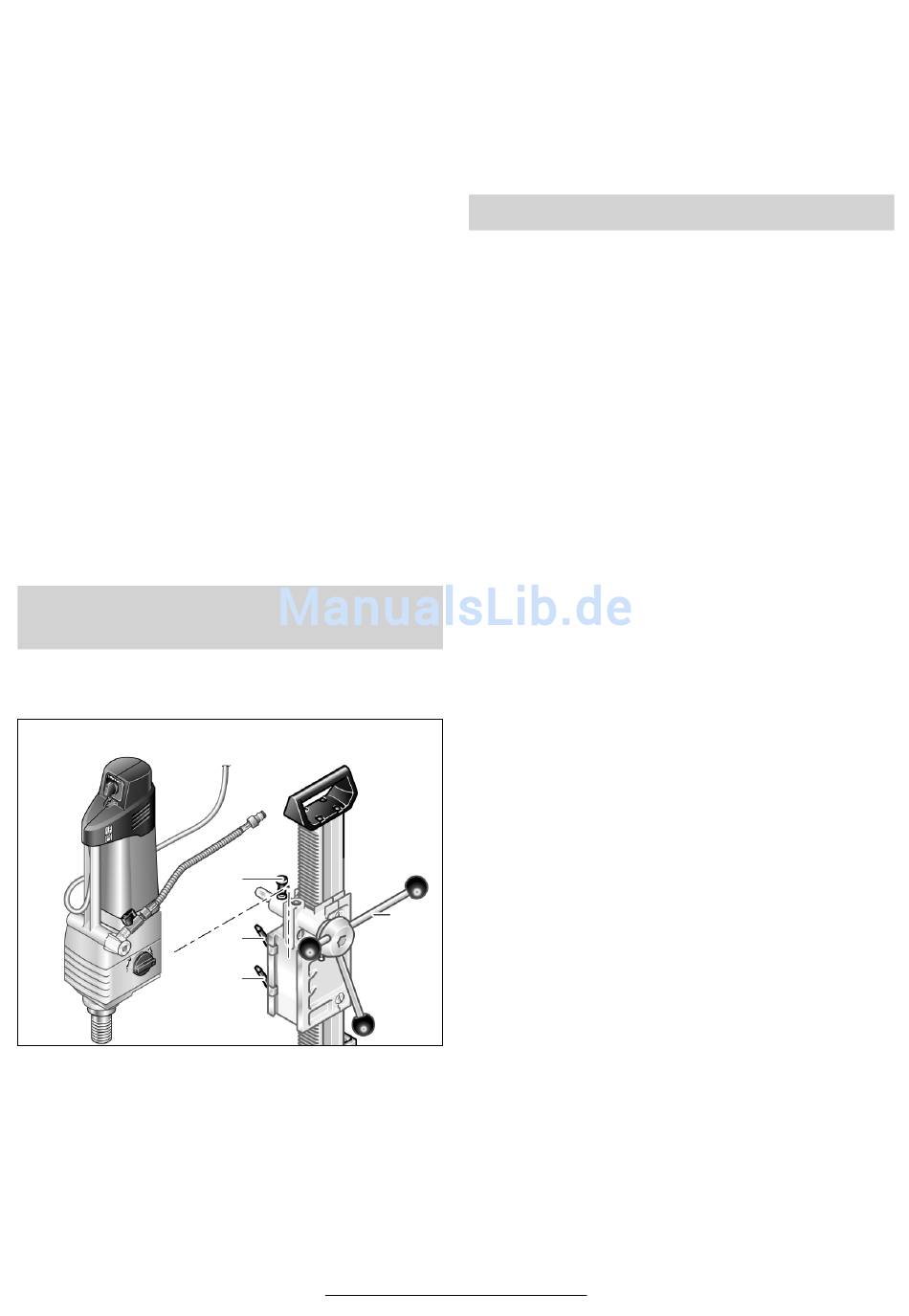

Attaching to a S 500 A Diamond
Drill Stand
The safety and working instructions for the drill
stand used are to be strictly observed!
Loosen the clamp handles 22 and 23. Take care that
the feed handle 5 is blocked by the locking pin 21.
Insert the machine from above into the dovetail guide
to the stop. Retighten the clamp handles 22 and 23.
1 609 929 C90 • (02.07) T
21
22
23
Place the mains cable and the water hose of the ma-
chine in the holders on the machine mount of the drill
stand.
When removing the machine, proceed in the reverse
order.

Inserting/Replacing the Tool

Before all work on the machine itself, in pauses
in the work as well as when not in use, secure the
machine against unintentional movement by en-
gaging the feed lock 21.
Inserting the Tool
Screw a R 1/2" core bit into the drill spindle 16 or a
1 1/4" UNC core bit onto the drill spindle 16.
Check the drill bit for firm seating.
s
The placing of a copper ring 15 (accessory) between
the drill spindle and the 1 1/4" UNC drill bit facilitates
the loosening of the drill bit when removing the tool.
With an adapter (accessory), SDS-DI core drill bits can
also be used.
Tool Removal
The core bits can become hot when the machine is
s
operated for a longer time. Wear protective gloves
when changing the drill bit.
Place a 36 mm open-ended spanner on the two flat
surfaces of the drill spindle 16 and a second spanner
on the core bit 14 (1 1/4" UNC core bit: 41 mm; R 1/2"
core bit: 22 mm). Loosen the core bit by turning the
spanners in opposite directions.
