Wichtige Hinweise
1.
Alle Arbeiten dürfen nur von qualifiziertem
Fachpersonal durchgeführt werden. Vor Beginn
jeder Arbeit am SIMODRIVE POSMO A müs-
sen die 5 Sicherheitsregeln beachtet werden:
Freischalten, gegen Wiedereinschalten
sichern, Spannungsfreiheit feststellen, Erden
und Kurzschließen und benachbarte unter
Spannung stehende Teile abdecken oder ab-
schranken.
2. Vorsicht beim Anfassen! Beim SIMODRIVE
POSMO A können während des Betriebs
Oberflächentemperaturen von über 100 _C auf-
treten! Brandgefahr!
3. Schutzeinrichtungen auch beim Probebetrieb
nicht außer Funktion setzen.
Bei Wellenende mit Paßfeder ist beim Probebe-
trieb ohne Abtriebselemente die Paßfeder zu
sichern. Drehrichtung im ungekuppelten Zu-
stand kontrollieren.
4. Bei extremen Vibrations–/Schockbeanspru -
chungen muß der Motor über die drei
M5–Gewindebohrungen mit einer entsprechen-
den Halterung abgestützt werden.
5. Um die Schutzart zu gewährleisten müssen
alle Anschlüsse mit einem Blindstopfen oder
mit einer PG–Verschraubung abgedichtet sein.
6. Beim Auf– und Abziehen von Abtriebselemen-
ten auf die Abgangswelle dürfen keine Schläge
(z. B. mit einem Hammer) oder größere als die
maximal zulässige Axial– oder Radiallast auf
das Wellenende wirken.
7. Auf gute Flanschbefestigung und genaue Aus-
richtung achten. Bei erhöhten Geräuschen/
Schwingungen/T emperaturen im Zweifelsfall
abschalten.
8. Alle Leistungsschilder, Warnschilder und Hin-
weisschilder am SIMODRIVE POSMO A sind
zu beachten!
9. Die Anschlußdeckel für POSMO A – 75 W und
POSMO A – 300 W sind verstecksicher, d. h.
der Anschlußdeckel für den 75 W–Motor passt
nicht auf den 300 W–Motor und umgekehrt.
10. Nach der Lebensdauer des Produktes sind die
einzelnen Teile entsprechend den landesspezi-
fischen Vorschriften zu entsorgen.
11. Weitere Hinweise sind dem aktuellen Benutzer-
handbuch des Produktes zu entnehmen.
Bezeichnung / Description
Positioniermotor / Positioning motor
SIMODRIVE POSMO A – 300 W
Ersatzteil Antriebseinheit / Spare part drive unit
 Siemens AG 2001 All Rights Reserved
GWE–Nr. / GWE No.: A5E00101611A
Hotline
Tel. / Fax: +49 (0)180 / 525 – 8008 / 5009

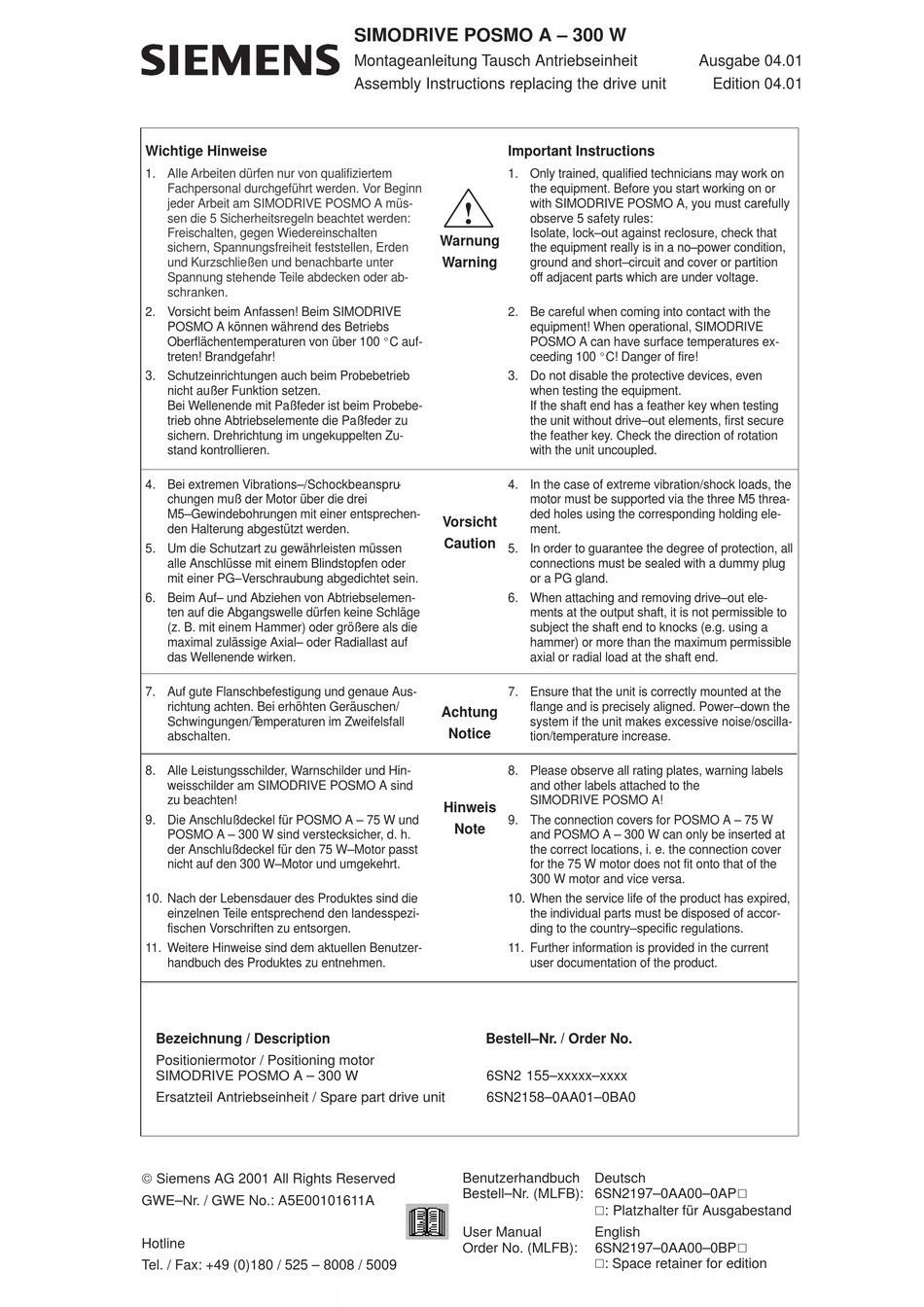

SIMODRIVE POSMO A – 300 W
Montageanleitung Tausch Antriebseinheit
Assembly Instructions replacing the drive unit
Important Instructions
1. Only trained, qualified technicians may work on
!
Warnung
Warning
2. Be careful when coming into contact with the
3. Do not disable the protective devices, even
4. In the case of extreme vibration/shock loads, the
Vorsicht
Caution
5. In order to guarantee the degree of protection, all
6. When attaching and removing drive–out ele-
7. Ensure that the unit is correctly mounted at the
Achtung
Notice
8. Please observe all rating plates, warning labels
Hinweis
9. The connection covers for POSMO A – 75 W
Note
10. When the service life of the product has expired,
11. Further information is provided in the current
Bestell–Nr. / Order No.
6SN2 155–xxxxx–xxxx
6SN2158–0AA01–0BA0
Benutzerhandbuch Deutsch
Bestell–Nr. (MLFB): 6SN2197–0AA00–0APV
User Manual
Order No. (MLFB):
Ausgabe 04.01
the equipment. Before you start working on or
with SIMODRIVE POSMO A, you must carefully
observe 5 safety rules:
Isolate, lock–out against reclosure, check that
the equipment really is in a no–power condition,
ground and short–circuit and cover or partition
off adjacent parts which are under voltage.
equipment! When operational, SIMODRIVE
POSMO A can have surface temperatures ex-
ceeding 100 _C! Danger of fire!
when testing the equipment.
If the shaft end has a feather key when testing
the unit without drive–out elements, first secure
the feather key. Check the direction of rotation
with the unit uncoupled.
motor must be supported via the three M5 threa-
ded holes using the corresponding holding ele-
ment.
connections must be sealed with a dummy plug
or a PG gland.
ments at the output shaft, it is not permissible to
subject the shaft end to knocks (e.g. using a
hammer) or more than the maximum permissible
axial or radial load at the shaft end.
flange and is precisely aligned. Power–down the
system if the unit makes excessive noise/oscilla-
tion/temperature increase.
and other labels attached to the
SIMODRIVE POSMO A!
and POSMO A – 300 W can only be inserted at
the correct locations, i. e. the connection cover
for the 75 W motor does not fit onto that of the
300 W motor and vice versa.
the individual parts must be disposed of accor-
ding to the country–specific regulations.
user documentation of the product.
V: Platzhalter für Ausgabestand
English
6SN2197–0AA00–0BPV
V: Space retainer for edition
Edition 04.01
