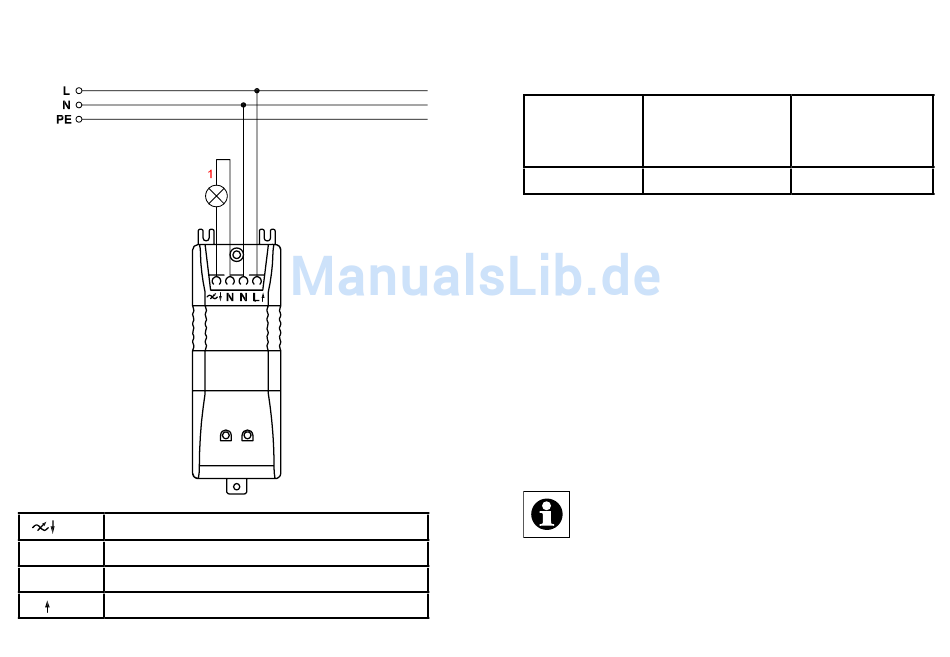

HM-LC-Dim1L-CV
Dimmed channel
N Neutral conductor connection (Load)
N Neutral connection
L External conductor connection
30
Permitted wire cross-section for connecting to the
actuators for ceiling void mount:
Rigid wire Flexible wire
[mm ] without end
2
sleeve [mm
0.50 – 2.50 0.50 - 2.50
7

Start up

7.1 Simple operating functions on the
device
You can operate the actuator immediately with the
channel button (teaching is not required) and check for
correct electrical installation. The button is used like an
ON/OFF toggle switch.
Only the brief button press is used for operation.
The longer button press (longer than 4 seconds)
switches the actuator to teach mode.
Flexible wire
with end sleeve
] [mm ]
2 2
0.50 – 2.50
