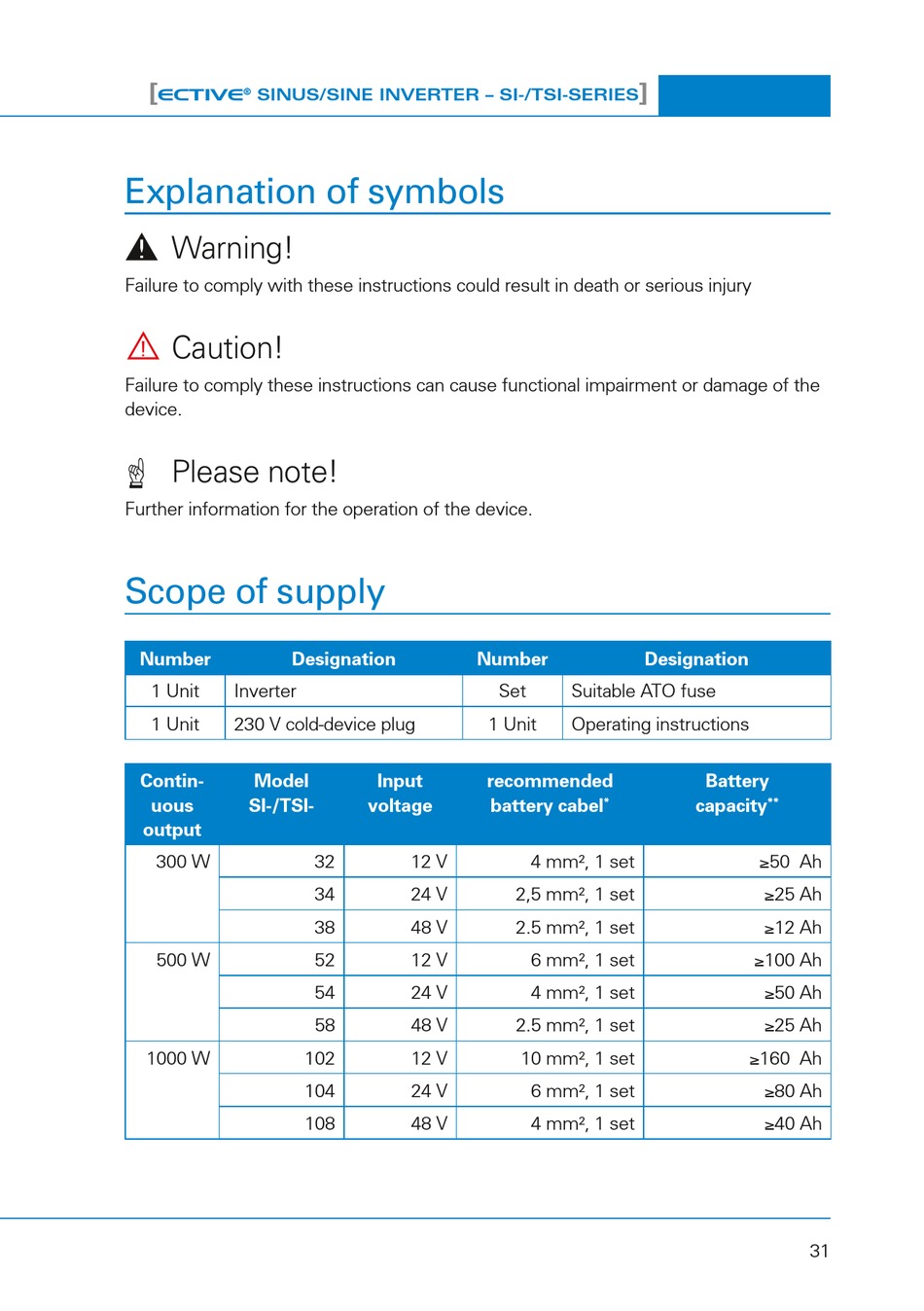

Explanation Of Symbols; Scope Of Supply - ECTIVE SI Series Montage- Und Betriebs-Anleitung

[
ECTIVE SINUS/SINE INVERTER – SI-/TSI-SERIES
®

Explanation of symbols

ѥ
Warning!
Failure to comply with these instructions could result in death or serious injury
⚠
Caution!
Failure to comply these instructions can cause functional impairment or damage of the
device .
☝
Please note!
Further information for the operation of the device .

Scope of supply

Number Designation
1 Unit Inverter
1 Unit 230 V cold­device plug
Contin­ Model
uous SI­/TSI­
output
300 W
500 W
1000 W
Number
Input
voltage
32 12 V
34 24 V
38 48 V
52 12 V
54 24 V
58 48 V
102 12 V
104 24 V
108 48 V
]
Designation
Set Suitable ATO fuse
1 Unit Operating instructions
recommended
battery cabel
*
4 mm², 1 set
2,5 mm², 1 set
2 .5 mm², 1 set
6 mm², 1 set
4 mm², 1 set
2 .5 mm², 1 set
10 mm², 1 set
6 mm², 1 set
4 mm², 1 set
Battery
capacity
**
≥50 Ah
≥25 Ah
≥12 Ah
≥100 Ah
≥50 Ah
≥25 Ah
≥160 Ah
≥80 Ah
≥40 Ah
