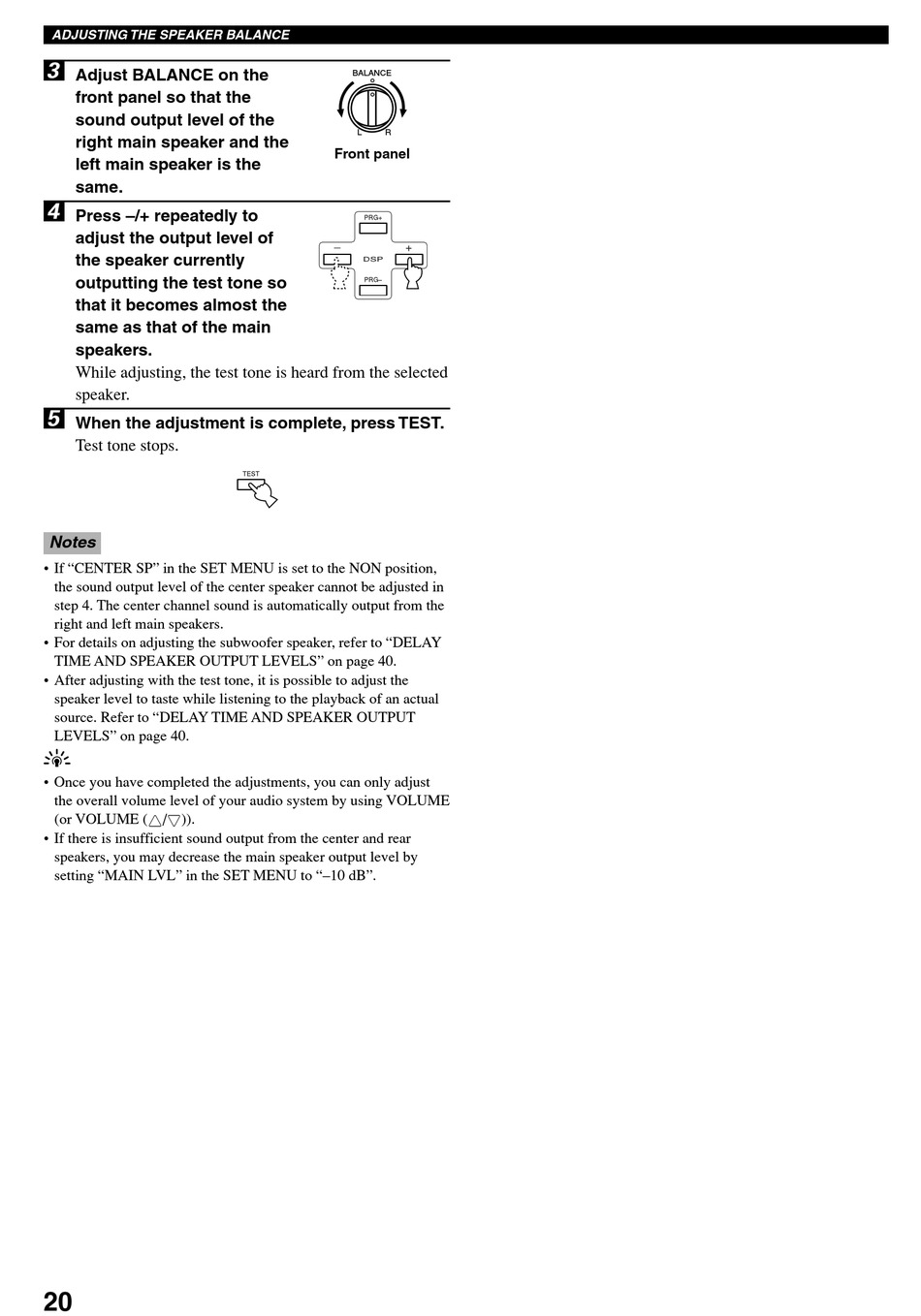

ADJUSTING THE SPEAKER BALANCE
3
Adjust BALANCE on the
front panel so that the
sound output level of the
right main speaker and the
left main speaker is the
same.
4
Press –/+ repeatedly to
adjust the output level of
the speaker currently
outputting the test tone so
that it becomes almost the
same as that of the main
speakers.
While adjusting, the test tone is heard from the selected
speaker.
5
When the adjustment is complete, press TEST.
Test tone stops.
Notes
• If "CENTER SP" in the SET MENU is set to the NON position,
the sound output level of the center speaker cannot be adjusted in
step 4. The center channel sound is automatically output from the
right and left main speakers.
• For details on adjusting the subwoofer speaker, refer to "DELAY
TIME AND SPEAKER OUTPUT LEVELS" on page 40.
• After adjusting with the test tone, it is possible to adjust the
speaker level to taste while listening to the playback of an actual
source. Refer to "DELAY TIME AND SPEAKER OUTPUT
LEVELS" on page 40.
y
• Once you have completed the adjustments, you can only adjust
the overall volume level of your audio system by using VOLUME
(or VOLUME ( / )).
• If there is insufficient sound output from the center and rear
speakers, you may decrease the main speaker output level by
setting "MAIN LVL" in the SET MENU to "–10 dB".
20
BALANCE
L R
Front panel
