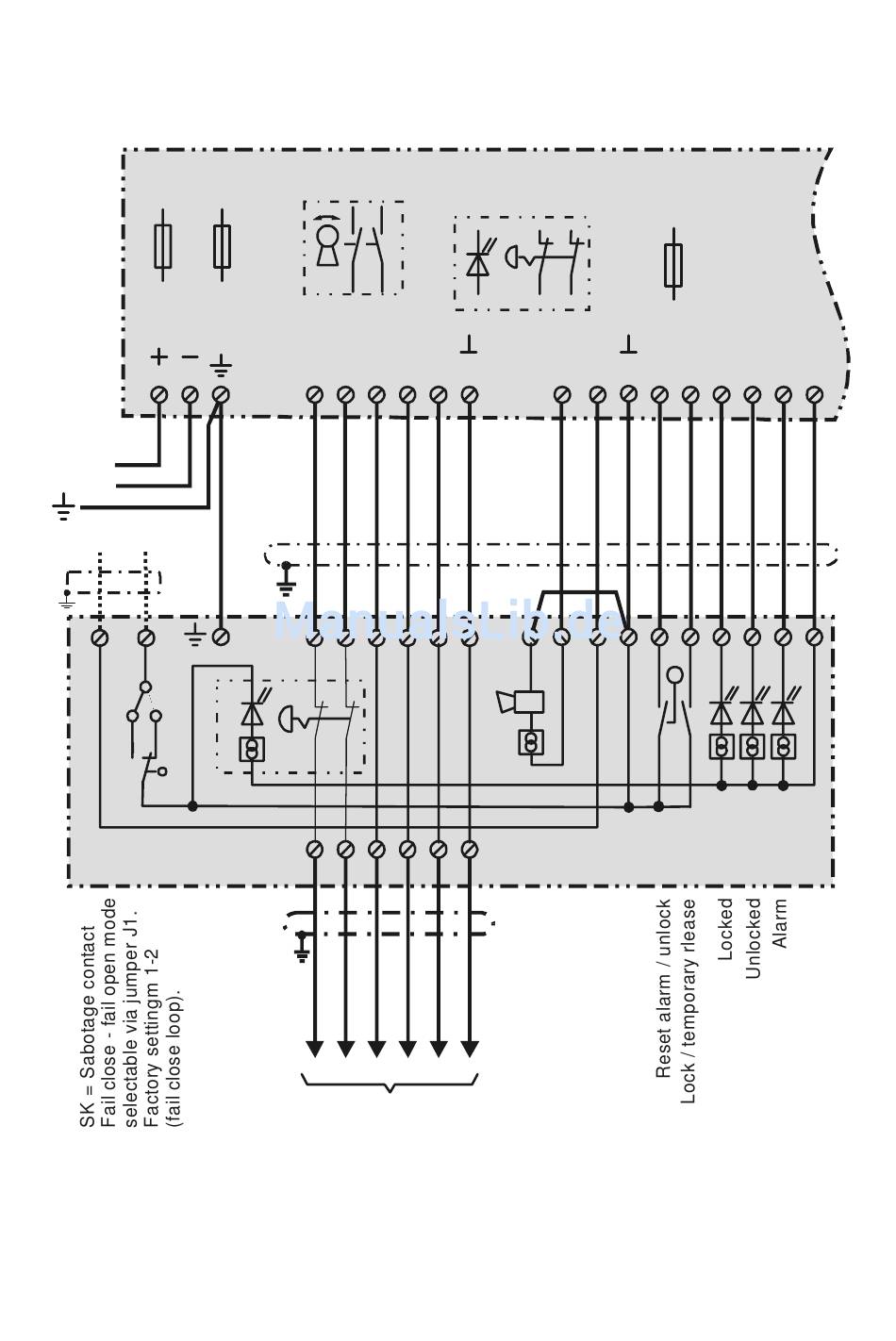

Detail control module and terminal module 1370-10

F1
0,5AT
1 2
+12 V to
+24 V DC
0V
Sabotage-
contact*
24
23
2
J1
3
1
SK
*) If no additional sabotage contakt
is connected, terminals 23-24 at the
terminal module must be bridged.
70
F2
Key-operated switch
2AT
3 4 5
1 2 3 4
7 8 9 10 11 12
A B C D
For connection of the
locking element,
see overall terminal diagram
Control module 1370-20
Emergency open
switch
6 7 8
17 18 19 20 21 22 23 24 25
5 6 13 14 15 16 17 18 19 20 21 22
Terminal-module 1370-10
E F
F3
0,1AT
red gn ye
