Cabling diagrams and connection details

7.2.1

Security system for a single door (cabling diagram)

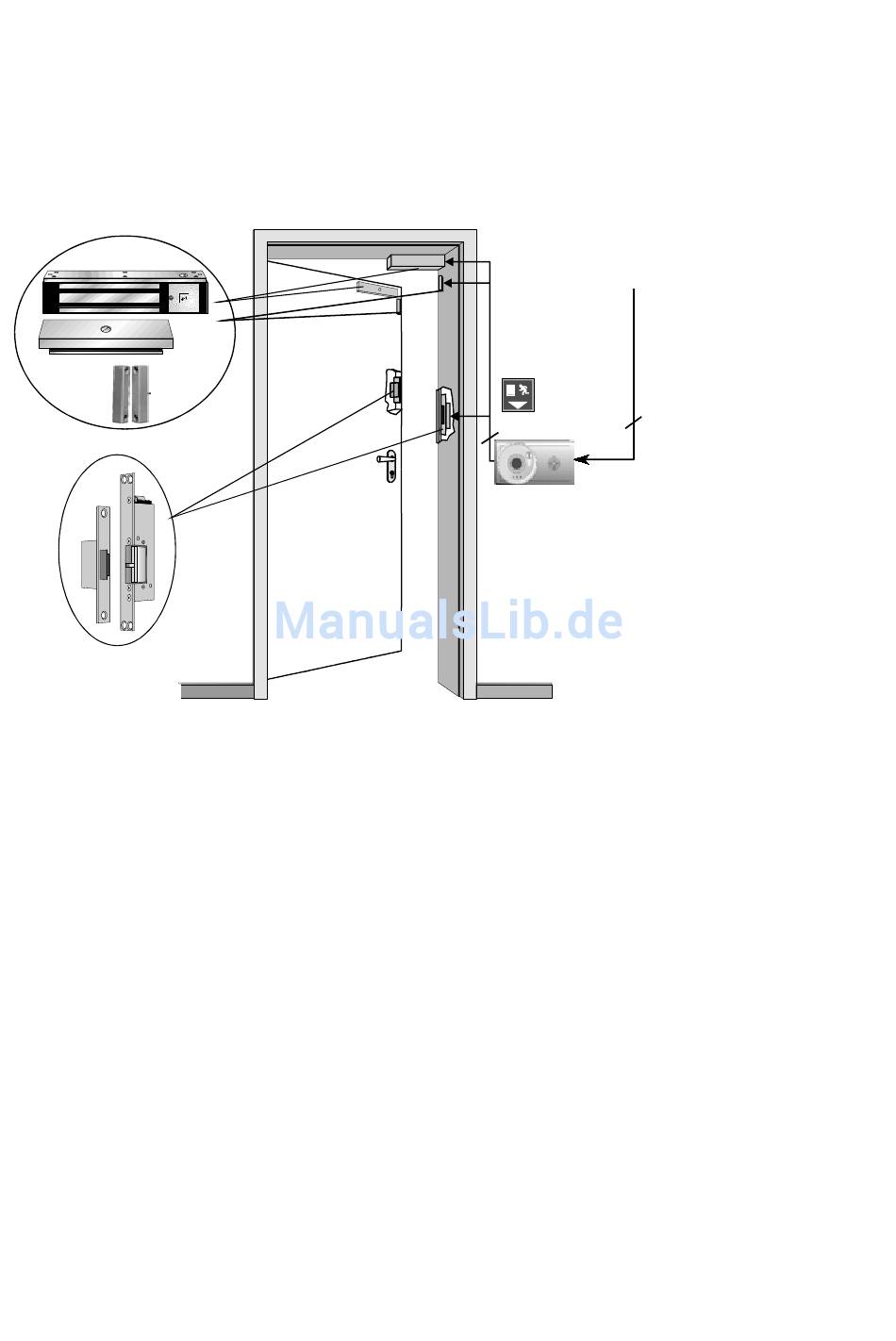

Holding magnet 828-44 with
reed contact 10365
or
Emercency exit release
331 RR AKRR and
latch bolt 807
or other locking elements
authorized within the system
The locking elements 331 or 351 are customarily used as indicated in the
sketch as close to the lock as possible in order to reduce leverage forces to a
minimum.
Surface holding magnets are positioned crosswise at the top. When mounting
it in that way, pay attention to adhere to the minimum clear clearance
height of 2000 mm.
The door contact must be positioned as close as possible to the lock side.
When using an emergency exit release model 331 RR AKRR, it does not need
to be installed.
1370-40
or 12 - 24 V stabilized direct
voltage Power suply unit in
accordance with
DIN EN 60950.
5
6
1370-20
Scope for system upgrading
- Indoor siren
- Terminal to the fire alarm system
- Central control and
monitoring panel
- Manual locking and unlocking
- Monitoring contact locked/unlocked
63
