Vorwort Liebe Testo-Kundin, lieber Testo-Kunde, wir freuen uns, dass Sie sich für das entschieden haben. Wir hoffen, dass Sie an dem Produkt Ex-Pt 720 lange Freude haben werden und es Sie bei Ihrer Arbeit hilfreich unterstützt. Lesen Sie bitte die vorliegende Bedienungsanleitung aufmerksam durch und machen Sie sich mit der Bedienung des Gerätes vertraut, bevor Sie es einsetzen.
Temperaturen zugelassen sind. Fachgerecht entsorgen: Geben Sie leere Batterien an den dafür vorgesehenen Sammelstellen ab. Senden Sie das Gerät nach Ende der Nutzungszeit direkt an uns. Wir sorgen für eine umwelt- schonende Entsorgung. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
- Fühler in explosionsfähigen Dampf-, Nebel-, oder Gas-Luftgemischen nur unter atmosphärischen Bedingungen betreiben, Temperatur: -10...+50°C, Druck: 0,8...1,1 bar - Liegen keine explosionsfähigen Gemische vor oder sind Zusatzmaßnahmen gemäß EN 1127-1 getroffen, dürfen die Fühler auch außerhalb der atmosphärischen Bedingungen gemäß ihrer Herstellerspezifikation betrieben werden. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
Seite 6
- Die Fühler sind vor dem Einbringen in den Ex-Bereich kurz zu erden. Besondere Bedingungen für Anwendung in Bereichen der Zone 0 - Die Bestimmung von Temperaturen mit dem Ex-Pt 720, innerhalb der Zone 0 ist nur unter Beachtung der folgenden Bedingungen erlaubt: - Es wird ein Edelstahlfühler Typ 0628 2232 oder 0628 2432 verwendet.

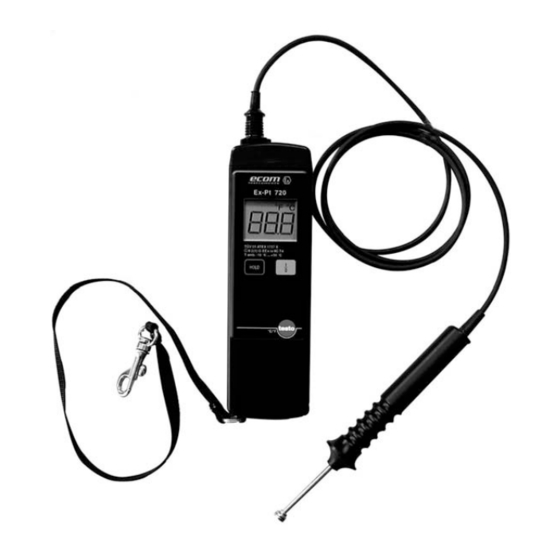

3. Bedienungshinweise 3.1 Bestimmungsgemäße Verwendung ist ein präzises, robustes und einfach bedienbares Ex-Pt 720 Temperaturmessgerät zur Temperaturmessung in explosions- gefährdeten Bereichen (außer schlagwettergefährdeter Grubenbau) der Zonen 2 und 1 nach Richtlinie 1992/92/EG (ATEX 137). 3.2 Anzeige- und Bedienelemente Fühleranschluss Display...
°C und °F um- schalten. - Wird nach dem Umschalten 5 Sekunden keine Taste betätigt, so wird die neue Messeinheit übernommen. 3.4.5 Ausschalten Gerät mit ausschalten. - Das Gerät ist aus, wenn das Display nicht mehr aktiv ist. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
Gerät nur mit einem feuchten Tuch oder Schwamm reinigen. Verwenden Sie zur Reinigung keine Lösungs- oder Scheuermittel. 4.4 Regelmäßige Prüfung Es wird empfohlen, die Funktion und Genauigkeit des Geräts alle zwei Jahre vom Hersteller überprüfen zu lassen (Service-Adresse siehe Rückseite). Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
Zugelassen für Zone 1, Gerätegruppe II, Gasgruppe C explosionsgefährdete Gase, Dämpfe oder Nebel, Temperaturklasse T4. Es dürfen nur die in der Zulassung spezifizierten Fühler eingesetzt werden. Fühler 0628 2232 und 0628 2432 dürfen in Zone 0 verwendet werden. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
- Kosten für neben den Garantieleistungen durchgeführte notwendige Reparaturen, Justagen oder dergleichen. Wenden Sie sich im Garantiefall an die Testo AG oder an die für Ihr Land zuständige Vertriebs- gesellschaft. Die Adressen finden Sie im Internet unter www.testo.com. Legen Sie dem Produkt eine kurze Mängelbeschreibung und den Kaufbeleg bei, aus dem das Liefer- bzw.
We are delighted you have decided to purchase . We hope you will enjoy the benefits of this Ex-Pt 720 product for a long time to come and that it will help you with your work. Please take the time to read the instruction manual carefully and make sure you become familiar with how the instrument operates before using it.
70°C unless they are expressly approved for higher temperatures. Disposal: Empty batteries should be disposed of appropriately. Please return the instrument us once it has been taken out of operation and we will dispose of it for you. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
-10 to +50°C, pressure: 0.8 to 1.1 bar - If no explosive mixtures are present, or if additional measures have been taken according to EN 1127-1, the probes may also be used outside atmospheric conditions according to the manufacturers specifications. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www.
Seite 28
The length of the carrying strap is such that the Ex-Pt 720 still has a distance of 50 cm to Zone 0 when hanging freely on the strap.
3. Operating instructions 3.1 Intended use is a precise, robust and simple to operate Ex-Pt 720 temperature measuring device for temperature measurements in explosion-endangered areas (excluding firedamp-endangered underground mining) of Zones 2 and 1 according to guideline 1992/92/EG (ATEX 137).
- If a button is not pressed within 5 seconds, the new measuring unit comes into effect. 3.4.5 Switching-off Switch the unit off with - The instrument is off if the display is no longer activated. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
The unit should only be cleaned with a moist cloth or sponge. Detergents or abrasive materials should not be used. 4.4 Regular checks We recommend that the function and accuracy of the unit be checked every two years by the manufacturer. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
Approved for Zone 1, equipment group II, gas group C explosions-endangered gases, vapours or fog, temperature class T4. Only the sensors specified in the approval certificate may be used. Sensors no. 0628 2232 and 0628 2432 may be used in Zone 0. Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
Manufacturer Type Varta Alkaline No.4822, Alkaline Universal No.4022, Alkaline Electric Power No.8022 Duracell Alkaline, Alkaline Ultra, Professional Alkaline Battery Procell Everady (Ralston Alkaline Energizer Energy Systems SA) Panasonic Alkaline Power Line Industrial Battery Daimon Alkaline Testo-Direct info@Testo-Direct.com 1.888.475.5235 www. .com...
We grant a warranty of 24 months from the date of the initial purchase for this product. There is a warranty of 24 months on probes. The warranty covers all material and manufacturer faults. Faults occurring during the period of warranty will be rectified by Testo AG free of charge for labour and materials according to the following conditions.
Equipment and protective systems for use according to certain regulations in explosion-endangered areas – Guideline 94/9/EC EG Type approval test certificate number TÜV 01 ATEX 1757 X Equipment: Explosion-protected temperature measuring unit Type Ex-Pt 720* Manufacturer: ecom instruments GmbH Address: D-97959 Assamstadt, Industriestrasse 2 The type of design as well as the various permissible versions are specified in the appen dix to this type approval test certificate.
Seite 37
In addition, the following applies to the measurement of temperatures within category 1: The temperature measuring unit Type Ex-Pt 720* itself may not be taken into areas which require category 1 operating equipment. Only the sensors listed in the operating instruc tions as being suitable for category 1 may be used.
Seite 38
In addition, the following applies to the measurement of temperatures within explosion- endangered areas which need category 1 equipment: The temperature measuring unit Type Ex-Pt 720* itself may not be taken into areas which require category 1 equipment. Only the sensors listed in the operating instructions as being suitable for category 1 may be used.
Seite 39
Industriestrasse 2 D-97959 Assamstadt In the future, the explosion-protected temperature measuring instrument Type Ex-Pt 720* may be manufactured in accordance with the documentation listed in the test report. The changes are concerned with the external design and the use of further sensors.
Seite 40
GmbH Industriestrasse 2 D-97959 Assamstadt In the future, the explosion-protected temperature measuring instrument Type Ex-Pt 720* may be manufactured in accordance with the documentation listed in the test report. The changes concern the interior design of two sensors.
Seite 41
12. Nov. 2007 Changes: In the future, the explosion-protected temperature measuring instrument Type Ex-Pt 720* may be manufactured in accordance with the documentation listed in the test report. The changes concern the sensors, the battery holder and the test plate.
Seite 42
The safety regulations of the manufacturer must be observed. These are recorded in the document 2800AL01A04G with the title “Safety information: Ex-Pt 720” . The temperature measuring instrument Type Ex-Pt 720* may not be opened within an explosive area. The version with the type description Ex-Pt 720L may only be operated in an explosive area in the leather bag belonging to it.
Seite 43
For t t he m m easurement o o f t t emperature w w ithin Z Z one 0 0 , t t he f f ollowing a a dditionally a a pplies: The temperature measuring instrument Type Ex-Pt 720* itself may not be taken into areas which require Category 1 equipment.
