122 Electrical installation
Connecting a PC
A PC (with eg. the Drive composer PC tool) can be connected to the inverter unit as
follows:
1. Connect an ACS-AP-I control panel to the inverter control unit either by using an
Anschluss eines PC
Ethernet (eg. CAT5E) networking cable, or by inserting the panel into the panel holder
(if present).
Ein PC (z. B. mit dem PC-Tool Drive composer) kann wie folgt angeschlossen werden:
1. Schließen Sie das ACS-AP-W oder ACS-AP-I Bedienpanel an die Einheit an entweder
WARNING! Do not connect the PC directly to the control panel connector of the
•
durch Einstecken des Bedienpanels in die Bedienpanel Halterung oder die Plattform
inverter unit as this can cause damage.
(falls vorhanden) oder
•
Verwenden eines Ethernet-Netzwerkkabels (CAT5E).

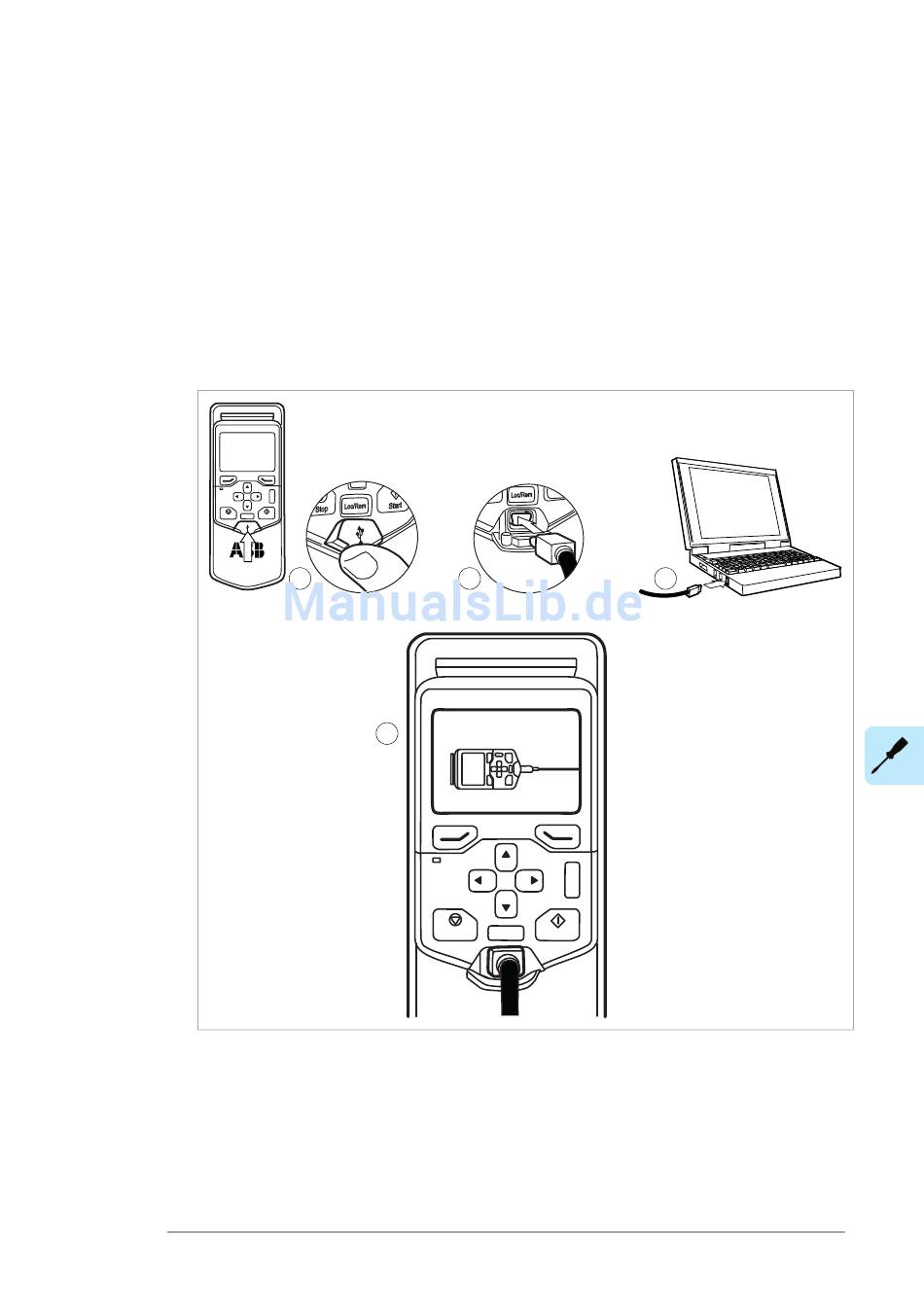

2. Remove the USB connector cover on the front of the control panel.
2. Entfernen Sie die Abdeckung des USB-Anschlusses vorne auf dem Bedienpanel.
3. Connect an USB cable (Type A to Type Mini-B) between the USB connector on the
3. Verbinden Sie mit einem USB-Kabel (Typ A auf Typ Mini-B) den USB-Anschluss auf
control panel (3a) and a free USB port on the PC (3b).
dem Bedienpanel (3a) mit einem freien USB-Anschluss am PC (3b).
4. The panel will display an indication whenever the connection is active.
4. Sobald die Verbindung aktiv ist, wird dies auf dem Display des Bedienpanels angezeigt.
?
Stop
Loc/Rem
Start
2
5. Siehe die Dokumentation des PC-Tools für Inbetriebnahmeanweisungen.
5. See the documentation of the PC tool for setup instructions.
3a
4
USB connected
Stop
Start
Loc/Rem
Elektrische Installation 95
3b
?
