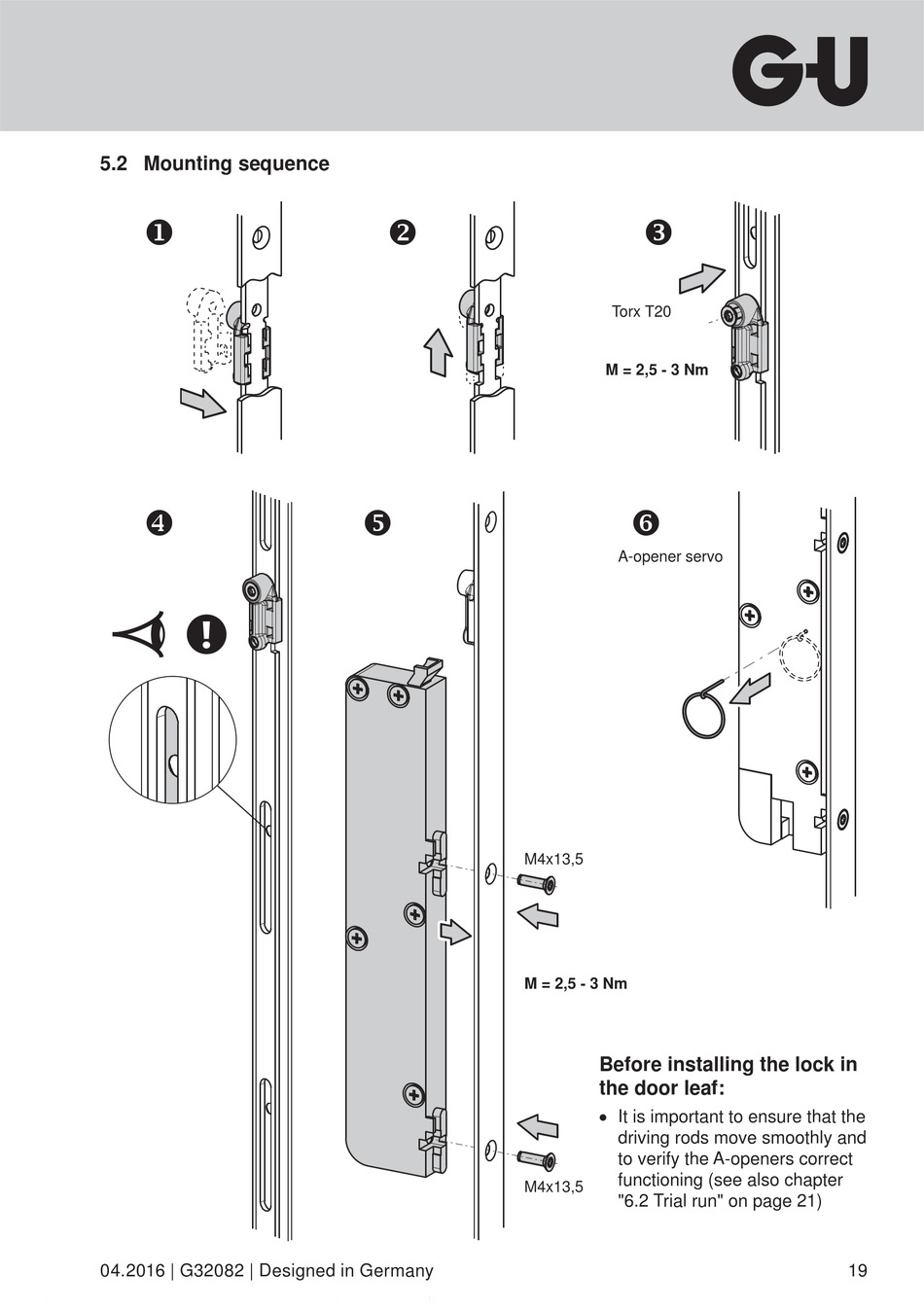

5.2 Mounting sequence



!
04.2016 | G32082 | Designed in Germany


M4x13,5
M = 2,5 - 3 Nm
M4x13,5

Torx T20
M = 2,5 - 3 Nm

A-opener servo
Before installing the lock in
the door leaf:
 It is important to ensure that the
driving rods move smoothly and
to verify the A-openers correct
functioning (see also chapter
"6.2 Trial run" on page 21)
