Mounting instructions

5.1 General mounting advice

The electronic components should be installed with utmost care since chafed or defective ca-
bles, damaged contacts etc. may seriously affect the safety of the system and cause its failure.
Ensure that all components are in faultless state before mounting them.

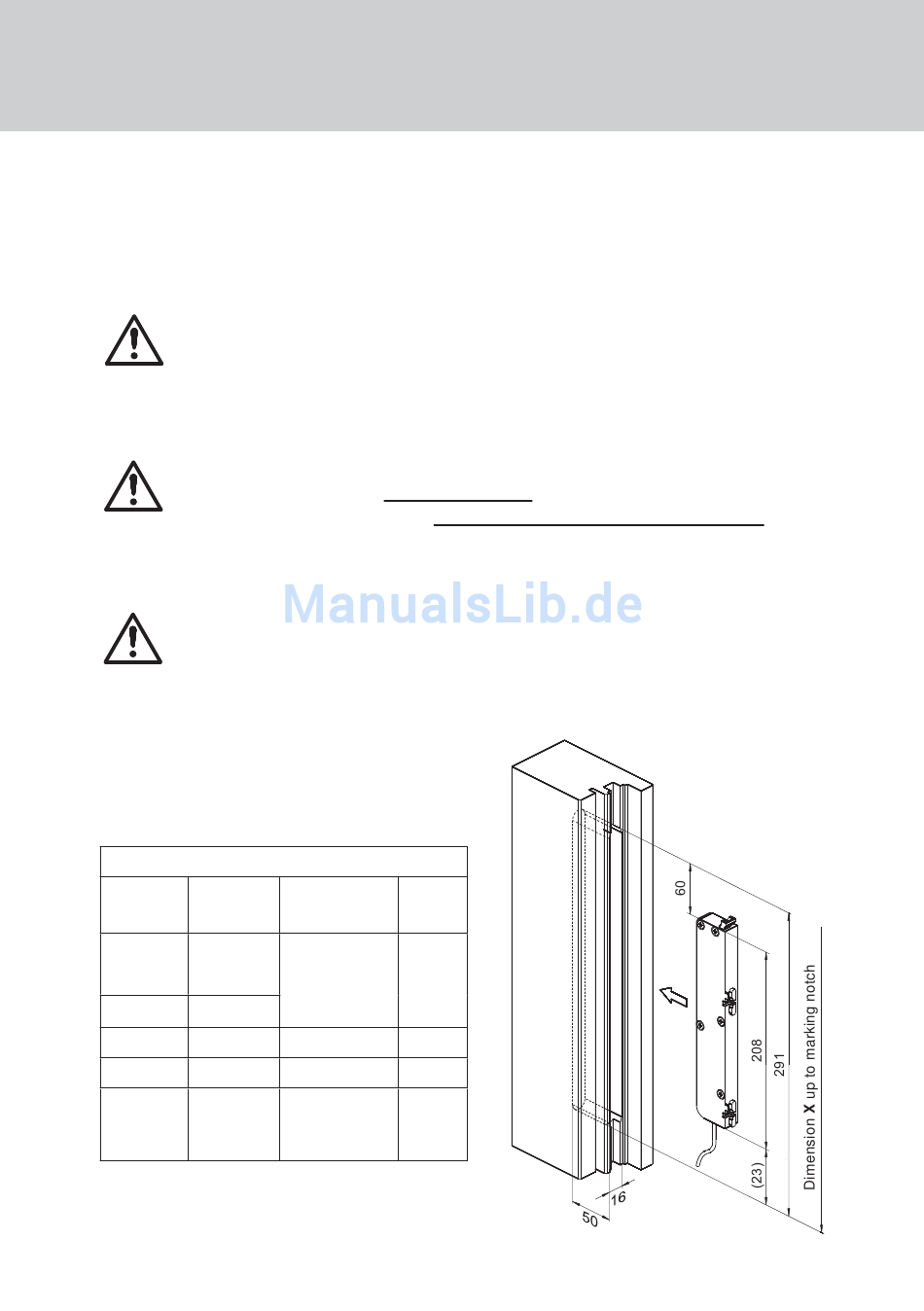

It is imperative to observe the cutting specifi cations given in the
drawing below!
In case of any problems or questions please contact the distributor or manufacturer.
The appropriate installation of the drive requires general electrical and mechanical knowledge,
as is to be expected from a skilled and safety-conscious expert.
ATTENTION:
It is imperative that a space of 60 mm should be provided above the
upper end of the A-opener allowing for the driving rod's travel.
If the recess is cut too small in length and depth, the lock's functions will
be disturbed!
ATTENTION:
With GU-SECURY Automatic4 multipoint locks it is necessary to
remove the connecting-rod guide in the upper fastening hole of the
A-opener (e.g. using a screwdriver) before installing the A-opener.
Other lengths / lock versions
Length Dim. B
[mm] [mm]
1750 760
1935
1600 760
Variable* 660
Variable* 760, 790
Variable* 760, 790,
733, 612,
734
* All lengths not specifi ed here,
e.g., 2285 mm, 1709 mm, 1810 mm
18
Lock Dim. X
version [mm]
Automatic 2, 650
Automatic 3,
Automatic 4,
Automatic 6
Automatic 2 470
Automatic 2 621
Automatic 4 470
