Scope of delivery and installation position

GU-SECURY Automatic with A-opener / A-opener servo
Bag of connecting cable (from A-opener to distribution box)

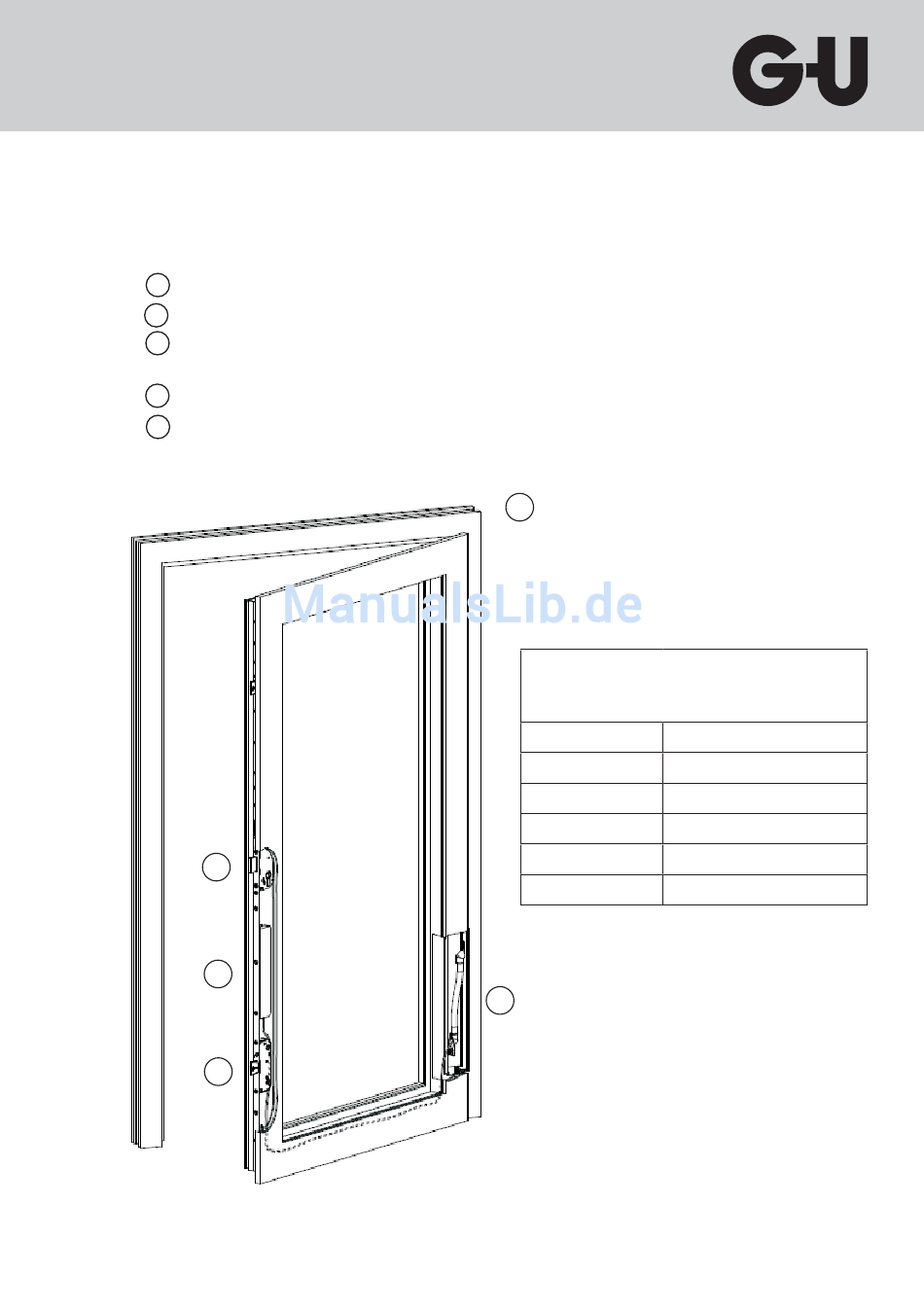

Installation position as shown in drawing below
1 Automatic latchbolts
2 Deadbolt of central lock
3 A-opener with connecting cable (approx. 6 m incl. plug for A-opener and wire end
sleeves on side of distribution box)
4 Cable duct not included in delivery (SECUREconnect)
5 Distribution box and 3-wire cable from distribution box to be provided by customer
(see chapter "3 Operating parameters" on page 16)
2
3
1
04.2016 | G32082 | Designed in Germany
5
Cable cross section
(3-wire cable from customer-provided
distribution box)
Length up to
10 m
40 m
50 m
75 m
125 m
4
Cross section
0.5 mm²
0.75 mm²
1 mm²
1.5 mm²
2.5 mm²
