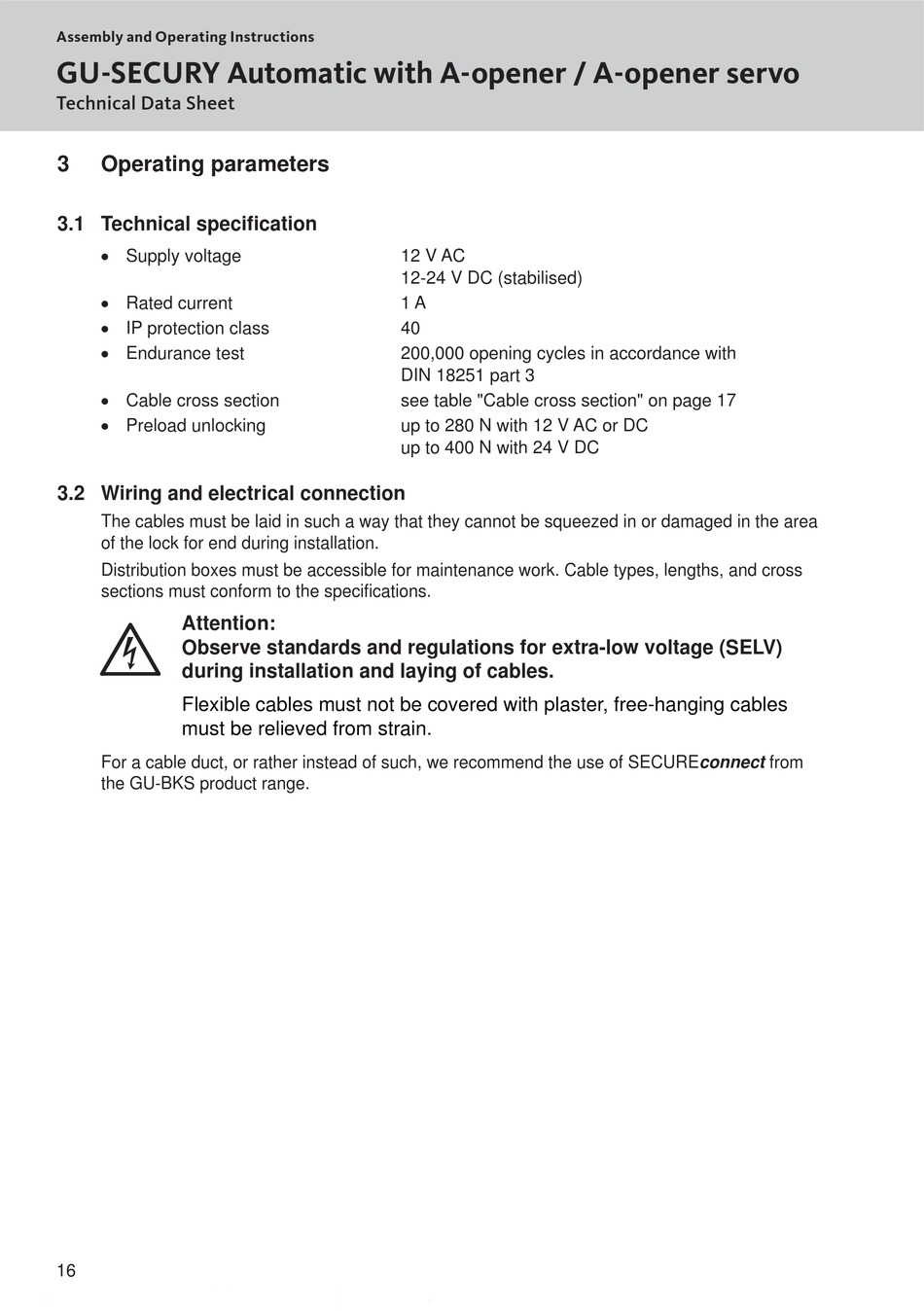

Operating Parameters; Technical Specifi Cation; Wiring And Electrical Connection - GU SECURY Automatic mit A-Öffner Montage- Und Bedienungsanleitung

Assembly and Operating Instructions
GU-SECURY Automatic with A-opener / A-opener servo
Technical Data Sheet
3

Operating parameters

3.1 Technical specifi cation
 Supply voltage
 Rated current
 IP protection class
 Endurance test
 Cable cross section
 Preload unlocking

3.2 Wiring and electrical connection

The cables must be laid in such a way that they cannot be squeezed in or damaged in the area
of the lock for end during installation.
Distribution boxes must be accessible for maintenance work. Cable types, lengths, and cross
sections must conform to the specifi cations.
Attention:
Observe standards and regulations for extra-low voltage (SELV)
during installation and laying of cables.
Flexible cables must not be covered with plaster, free-hanging cables
must be relieved from strain.
For a cable duct, or rather instead of such, we recommend the use of SECUREconnect from
the GU-BKS product range.
16
12 V AC
12-24 V DC (stabilised)
1 A
40
200,000 opening cycles in accordance with
DIN 18251 part 3
see table "Cable cross section" on page 17
up to 280 N with 12 V AC or DC
up to 400 N with 24 V DC
