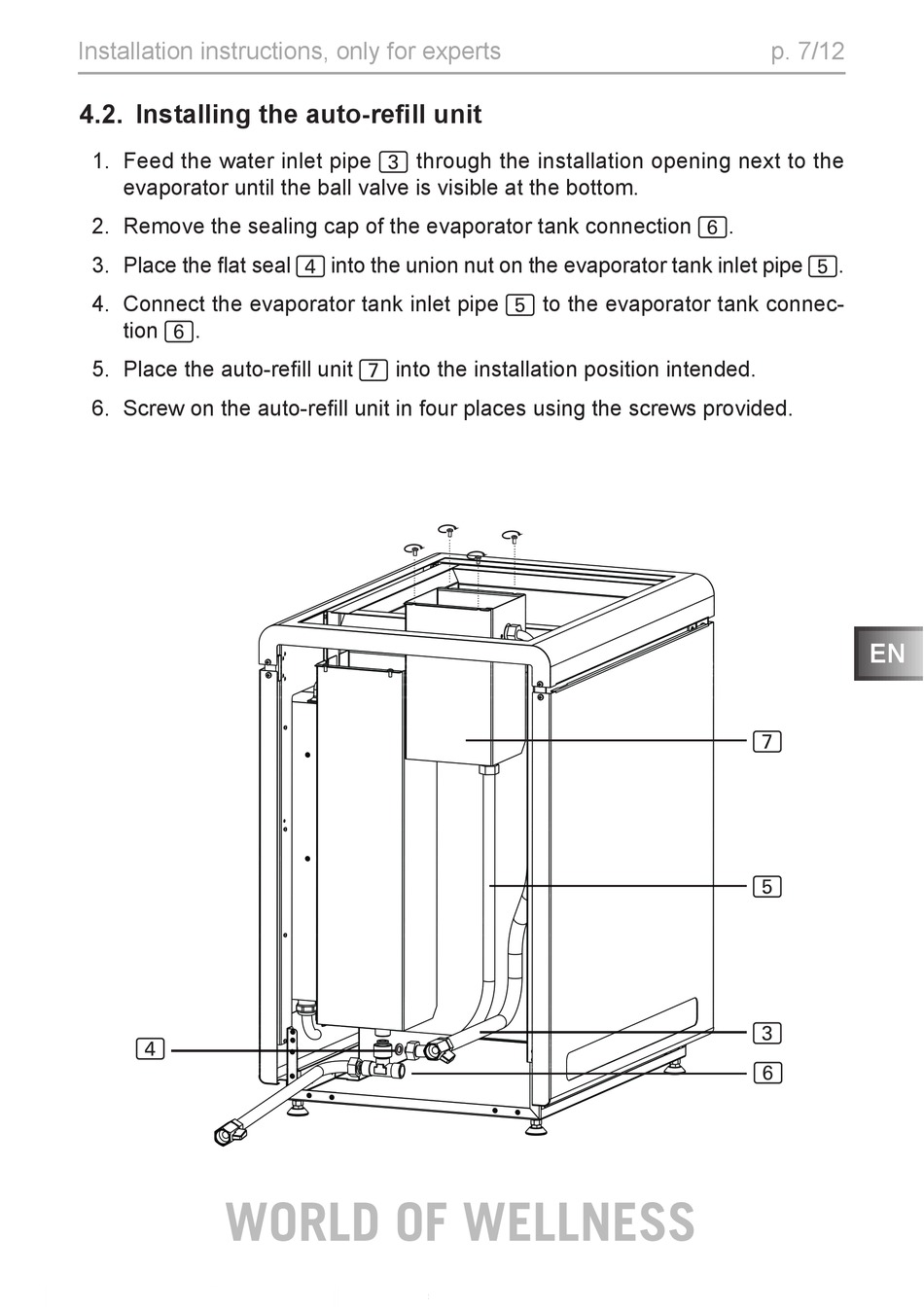

4.2. Installing the auto-refill unit

1. Feed the water inlet pipe 3 through the installation opening next to the
evaporator until the ball valve is visible at the bottom.
2. Remove the sealing cap of the evaporator tank connection 6.
3. Place the flat seal 4 into the union nut on the evaporator tank inlet pipe 5.
4. Connect the evaporator tank inlet pipe 5 to the evaporator tank connec-
tion 6.
5. Place the auto-refill unit 7 into the installation position intended.
6. Screw on the auto-refill unit in four places using the screws provided.
