2.2. Getting to know your ClearView C

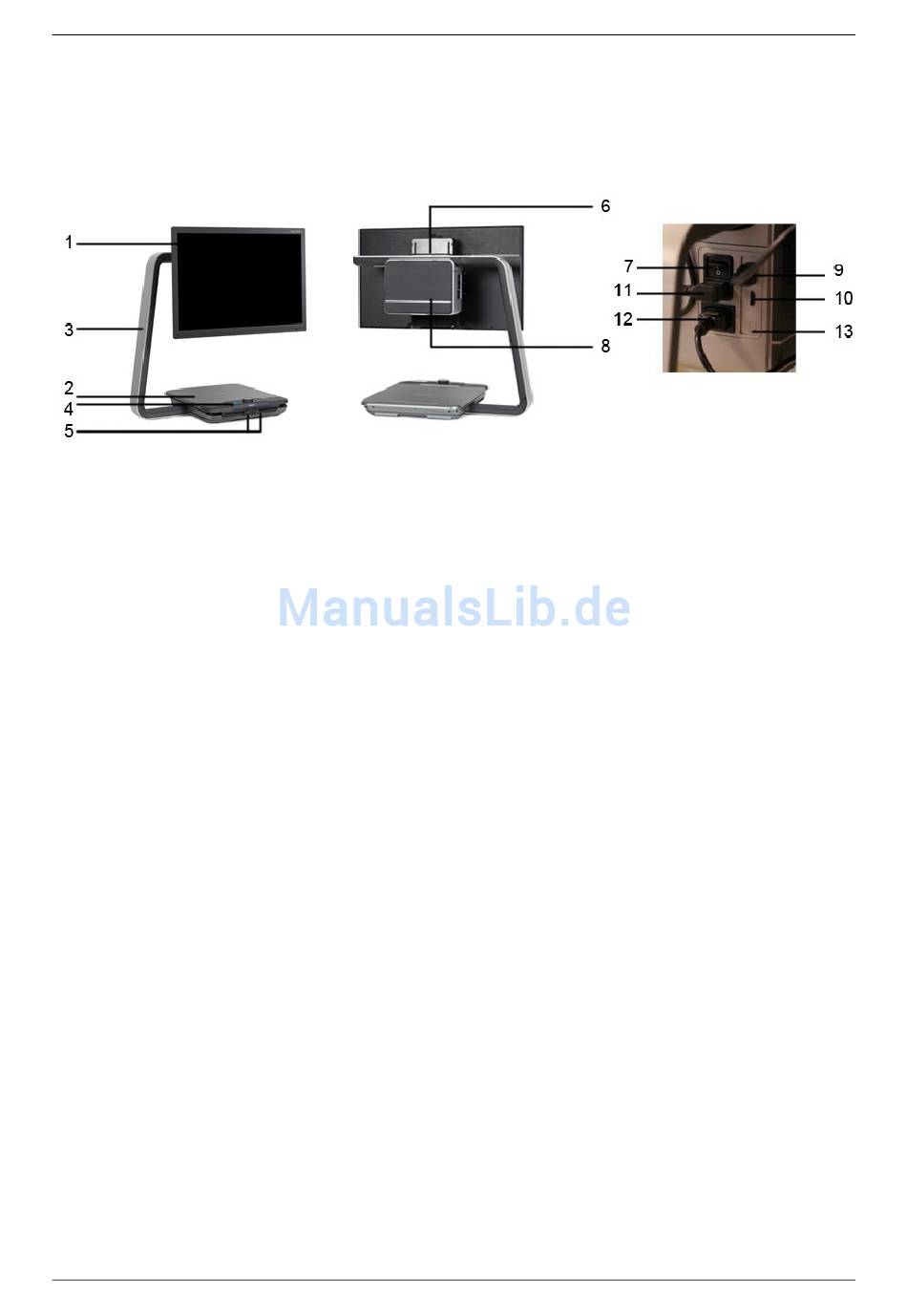

The following figures show the ClearView C's main components.
1. Monitor
2. Reading table
3. C-shaped arm
4. Control Pad
5. X & Y Brake slides
6. Handle
7. Master power switch

2.3. Unpacking and installing

The ClearView C is shipped in one box and is already assembled. All you
have to do is unpack the ClearView C, plug the power cord into the unit and
plug the power cord into the power socket.
To power on the ClearView C, please take the following steps:
- Plug the power cord into the power socket;
- Press the On / Off button at the left side of the Camera Box.
16
8. Camera Box
9. HDMI out
10. HDMI in
11. Power in
12. Power out
13. Camera connection (speech)
