Migatronic SIGMA SELECT GRAPHICAL Kurzanleitung Seite 3

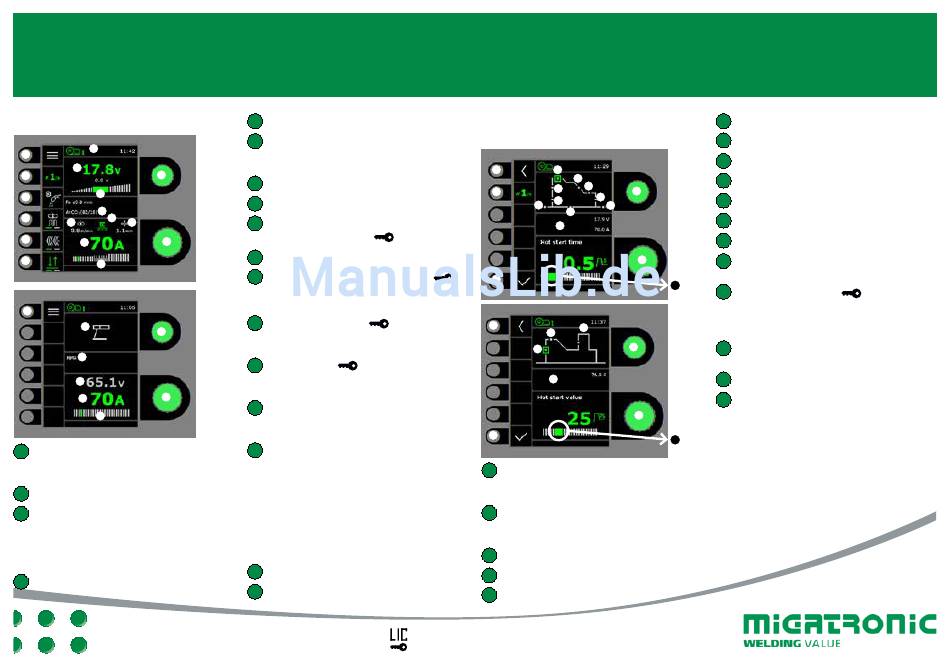

Standard control panel MIG/MMA
16
10
7
6
11
8
12
9
13 12
4 5
14
2 1
15
3
10
17
6
9
7
1
2
3
1 Setting welding current
Turn the control knob to set the desired
welding current.
2 Display of welding current
3 Display of
current/transfer area:
- dip transfer
- globular transfer (risk of weld spatter)
- spray transfer
4 Display of wire feed speed
5 Display of material thickness
6 Setting welding voltage
Turn the control knob to trim/set the desired
welding voltage.
7 Display of welding voltage
8 Display of +/- voltage trim
9 Display of selected
program/MigaJOB
10 Menu
11 Display of present sequence/
sequences in total
Press key to change to next sequence.
12 Selecting process
Available welding processes. Press key to
change process.
13 DUO Plus TM
Pulsating wire in connection with synergic
MIG.
14 Tack welding
When this function is activated, sequence,
hotstart and slope down are off.
15 Selecting trigger mode
Change between 2-stroke and 4-stroke.
2-stroke: the welding process starts when
the torch trigger is activated and ends when
the torch trigger is released.
4-stroke: the welding process starts when
the torch trigger is activated and released
(hotstart is active until release of torch
trigger) and ends when the torch trigger is
activated again.
16 Information bar
17 Symbol for MMA
Licence-dependent
SIGMA SELECT GRAPHICAL
Setting welding process MIG/MMA -
Process setup
13 6
7
8
5
2
14
9
4
3 10
11
12
1
15
13
16
6
2
5
12
1
15
1 Setting parameters
Turn the control knob to set the desired
parameter value.
2 Selecting welding parameter
Turn the control knob to select the desired
welding parameter.
3 Pre-gas (sec.)
4 Softstart (m/min)
5 Hotstart (%)
QUICKGUIDE
6 Hotstart time (sec.)
7 Slope down (sec.)
8 Stop amp time (sec.)
9 Stop amp (%)
10 Post-gas (sec.)
11 Spot time (sec.)
12 Set current
13 Return
Return to menu.
17
14 Present sequence/
sequences in total
Max. no. of sequences in normal mode = 9
Max. no. of sequences in job mode = 99
15 Confirm modifications
Return to standard control panel.
16 Arc Power (%)
17 Factory settings
17
