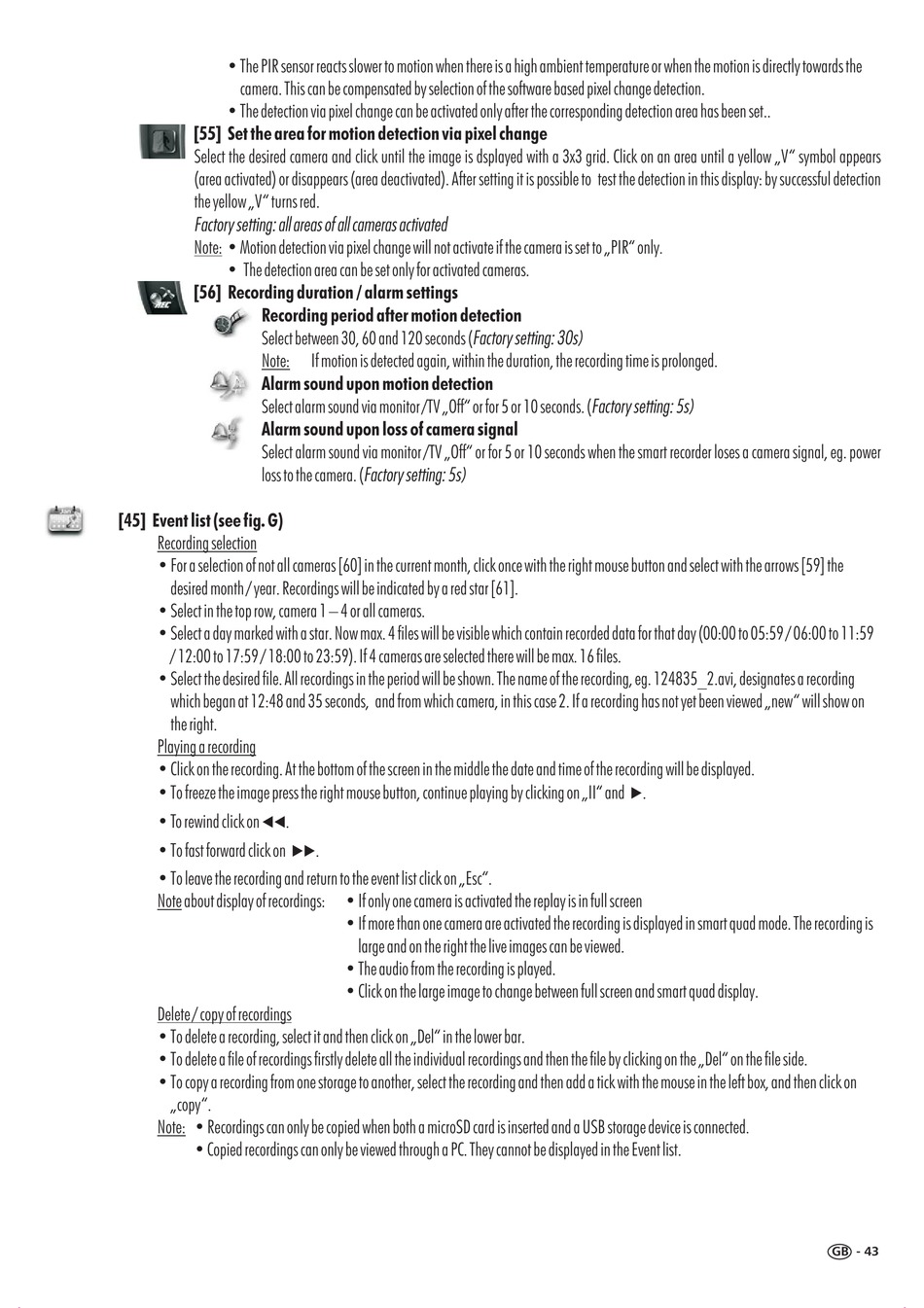

indexa DF400SET Bedienungsanleitung Seite 43

• The PIR sensor reacts slower to motion when there is a high ambient temperature or when the motion is directly towards the
camera. This can be compensated by selection of the software based pixel change detection.
• The detection via pixel change can be activated only after the corresponding detection area has been set..
[55] Set the area for motion detection via pixel change
Select the desired camera and click until the image is dsplayed with a 3x3 grid. Click on an area until a yellow „V" symbol appears
(area activated) or disappears (area deactivated). After setting it is possible to test the detection in this display: by successful detection
the yellow „V" turns red.
Factory setting: all areas of all cameras activated
Note: • Motion detection via pixel change will not activate if the camera is set to „PIR" only
• The detection area can be set only for activated cameras.
[56] Recording duration / alarm settings
Recording period after motion detection
Select between 30, 60 and 120 seconds (
Note:
Alarm sound upon motion detection
Select alarm sound via monitor /TV „Off" or for 5 or 10 seconds. (
Alarm sound upon loss of camera signal
Select alarm sound via monitor /TV „Off" or for 5 or 10 seconds when the smart recorder loses a camera signal, eg. power
loss to the camera. (
[45] Event list (see fig. G)
Recording selection
• For a selection of not all cameras [60] in the current month, click once with the right mouse button and select with the arrows [59] the
desired month / year. Recordings will be indicated by a red star [61].
• Select in the top row, camera 1 – 4 or all cameras.
• Select a day marked with a star. Now max. 4 files will be visible which contain recorded data for that day (00:00 to 05:59 / 06:00 to 11:59
/ 12:00 to 17:59 / 18:00 to 23:59). If 4 cameras are selected there will be max. 16 files.
• Select the desired file. All recordings in the period will be shown. The name of the recording, eg. 124835_2.avi, designates a recording
which began at 12:48 and 35 seconds, and from which camera, in this case 2. If a recording has not yet been viewed „new" will show on
the right.
Playing a recording
• Click on the recording. At the bottom of the screen in the middle the date and time of the recording will be displayed.
• To freeze the image press the right mouse button, continue playing by clicking on „II" and .
¶¶
• To rewind click on .
··
• To fast forward click on
• To leave the recording an
Note about display of recordings:
Delete / copy of recordings
• To delete a recording, select it and then click on „Del" in the lower bar.
• To delete a file of recordings firstly delete all the individual recordings and then the file by clicking on the „Del" on the file side.
• To copy a recording from one storage to another, select the recording and then add a tick with the mouse in the left box, and then click on
„copy".
Note: • Recordings can only be copied when both a microSD card is inserted and a USB storage device is connected
• Copied recordings can only be viewed through a PC. They cannot be displayed in the Event list.
If motion is detected again, within the duration, the recording time is prolonged.
Factory setting: 5s)
.
d return to the event list click on „Esc".
• If only one camera is activated the replay is in full screen
• I f more than one camera are activated the reco ding is displayed in smart quad mode. The recording is
large and on the right the live images can be viewed.
• The audio from the recording is played.
• Click on the large image to change between full screen and smart quad display.
Factory setting: 30s)
Factory setting: 5s)
·
r
.
.
