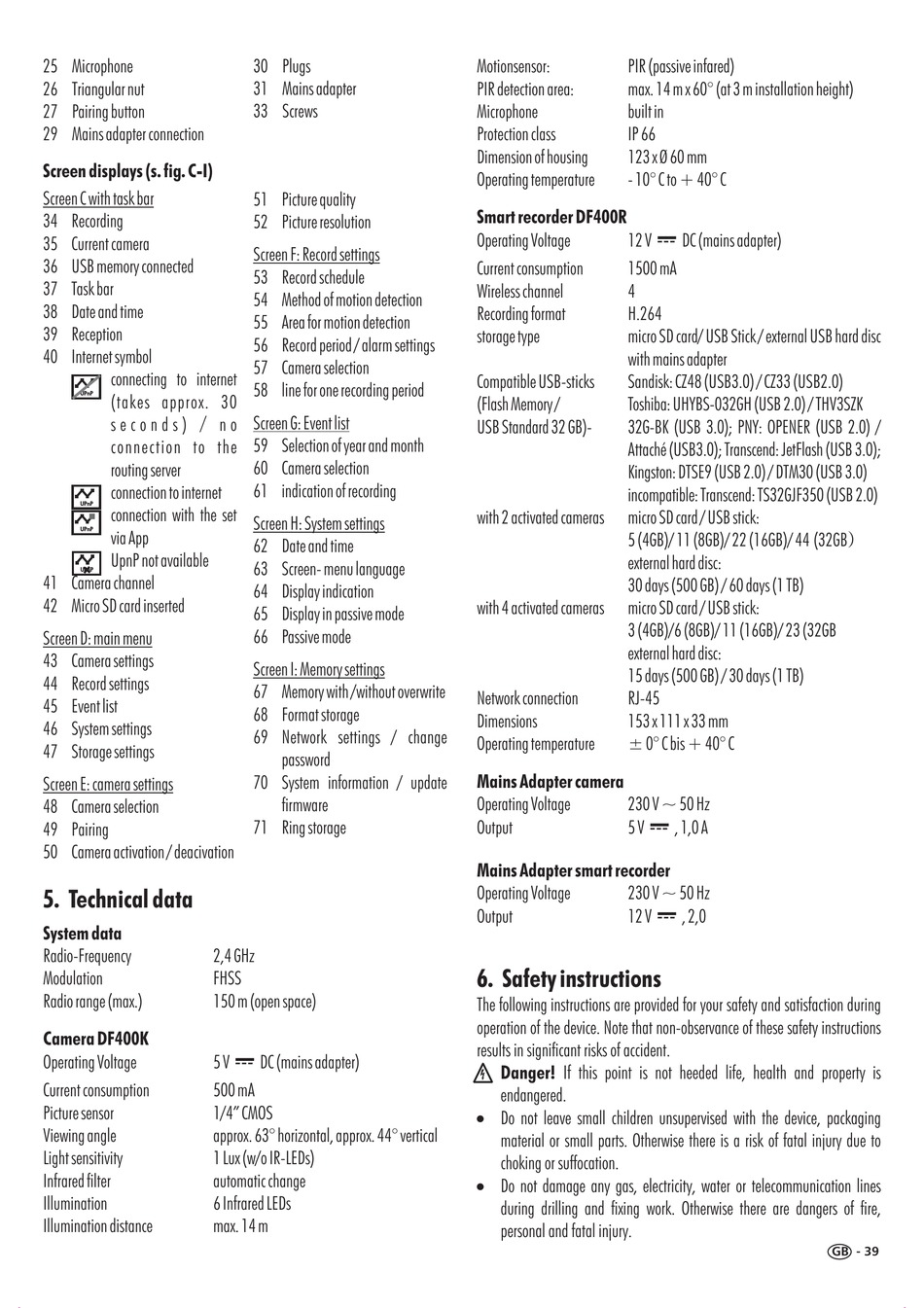

25 Microphone
26 Triangular nut
27 Pairing button
29 Mains adapter connection
Screen displays (s. fig. C-I)
Screen C with task bar
34 Recording
35 Current camera
36 USB memory connected
37 Task bar
38 Date and time
39 Reception
40 Internet symbol
connecting to internet
UPnP
(takes approx. 30
/
s e c o n d s )
connection to the
routing server
connection to internet
UPnP
connection with the set
UPnP
via App
UpnP not available
UPnP
41 Camera channel
42 Micro SD card inserted
Screen D: main menu
43 Camera settings
44 Record settings
45 Event list
46 System settings
47 Storage settings
Screen E: camera settings
48 Camera selection
49 Pairing
50 Camera activation / deacivation

5. Technical data

System data
Radio-Frequency 2,4 GHz
Modulation FHSS
Radio range (max.) 150 m (open space)
Camera DF400K
Operating Voltage 5 V
Current consumption 500 mA
Picture sensor 1/4" CMOS
Viewing angle approx. 63° horizontal, approx. 44° vertical
Light sensitivity 1 Lux (w/o IR-LEDs)
Infrared filter automatic change
Illumination 6 Infrared LEDs
Illumination distance max. 14 m
30 Plugs
31 Mains adapter
33 Screws
51 Picture quality
52 Picture resolution
Screen F: Record settings
53 Record schedule
54 Method of motion detection
55 Area for motion detection
56 Record period / alarm settings
57 Camera selection
58 line for one recording period
Screen G: Event list
n o
59 Selection of year and month
60 Camera selection
61 indication of recording
Screen H: System settings
62 Date and time
63 Screen- menu language
64 Display indication
65 Display in passive mode
66 Passive mode
Screen I: Memory settings
67 Memory with /without overwrite
68 Format storage
69 Network settings / change
password
70 System information / update
firmware
71 Ring storage
"
DC (mains adapter)
Motionsensor: PIR (passive infared)
PIR detection area: max. 14 m x 60° (at 3 m installation height)
Microphone built in
Protection class IP 66
Dimension of housing 123 x Ø 60 mm
Operating temperature - 10° C to + 40° C
Smart recorder DF400R
Operating Voltage 12 V
Current consumption 1500 mA
Wireless channel 4
Recording format H.264
storage type micro SD card/ USB Stick / external USB hard disc
with mains adapter
Compatible USB-sticks Sandisk: CZ48 (USB3.0) / CZ33 (USB2.0)
(Flash Memory / Toshiba: UHYBS-032GH (USB 2.0) / THV3SZK
USB Standard 32 GB)- 32G-BK (USB 3.0); PNY: OPENER (USB 2.0) /
Attaché (USB3.0); Transcend: JetFlash (USB 3.0);
Kingston: DTSE9 (USB 2.0) / DTM30 (USB 3.0)
incompatible: Transcend: TS32GJF350 (USB 2.0)
with 2 activated cameras micro SD card / USB stick:
5 (4GB)/ 11 (8GB)/ 22 (16GB)/ 44 (32GB
external hard disc:
30 days (500 GB) / 60 days (1 TB)
with 4 activated cameras micro SD card / USB stick:
3 (4GB)/6 (8GB)/ 11 (16GB)/ 23 (32GB
external hard disc:
15 days (500 GB) / 30 days (1 TB)
Network connection RJ-45
Dimensions 153 x 111 x 33 mm
Operating temperature ± 0° C bis + 40° C
Mains Adapter camera
Operating Voltage 230 V ~ 50 Hz
"
Output 5 V
Mains Adapter smart recorder
Operating Voltage 230 V ~ 50 Hz
Output 12 V

6. Safety instructions

The following instructions are provided for your safety and satisfaction during
operation of the device. Note that non-observance of these safety instructions
results in significant risks of accident.
Danger! If this point is not heeded life, health and property is
endangered.
!
Do not leave small children unsupervised with the device, packaging
material or small parts. Otherwise there is a risk of fatal injury due to
choking or suffocation.
!
Do not damage any gas, electricity, water or telecommunication lines
during drilling and fixing work. Otherwise there are dangers of fire,
personal and fatal injury.
"
DC (mains adapter)
, 1,0 A
"
, 2,0
GB - 39
)
