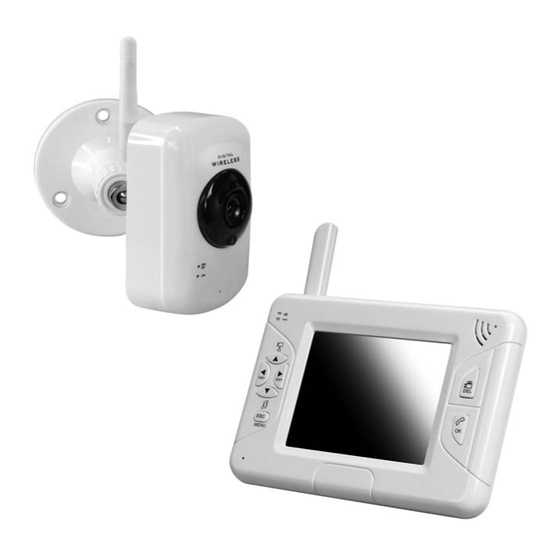

DF15A Set Funk-Videoüberwachungsset mit Babyphone-Funktion Bedienungsanleitung Seite 2 Set de videosurveillance sans fil avec la fonction babyphone Mode d'emploi page 9 Draadloze videobewakingsset Babyfoon met camera Gebruiksanwijzingen page 15 Wireless video observation set with babyphone function Operating instructions page 21...
Bedienungsanleitung 1. Einleitung Bitte lesen Sie diese Bedienungsanleitung vollständig und sorgfältig durch Die Komponenten sind für die Anwendung im Innenbereich geeignet und und klappen Sie dabei die Seite 3 mit den Abbildungen aus. Die müssen vor Feuchtigkeit und Nässe geschützt werden. Bedienungsanleitung gehört zu diesem Produkt und enthält wichtige Das Überwachungsset ist für den Betrieb in privaten Haushalten konzipiert.
Achtung! Bei Nichtbeachtung dieses Hinweises werden Sachwerte 8. Montage und Anschluss der Kamera gefährdet. Die Kamera kann an der Wand oder an der Decke montiert werden (s. Abb. E: Setzen Sie die Geräte nicht der Nähe von Feuer, Hitze oder lang I und II) bzw.
Um den Monitor auszuschalten, halten Sie die Ein/Aus-Taste [7] so lange PM = Uhrzeit zwischen 12.00 und 24.00 Uhr gedrückt, bis “POWER OFF” erscheint. AM = Uhrzeit zwischen 00.00 und 12.00 Uhr Um einen Reset durchzuführen, wählen Sie mit den Richtungstasten "Set 11.
Hiermit erklären wir, INDEXA GmbH, Paul-Böhringer-Str. 3, D - 74229 12.9 SD Card Format [56] - SD-Karte formatieren / Löschen Oedheim, dass sich dieses Produkt DF15A Set in Übereinstimmung mit den von Aufnahmen grundlegenden Anforderungen und den anderen relevanten Vorschriften der Wählen Sie mit den Richtungstasten ON aus, um die SD-Karte zu...
Ändern Sie die Ausrichtung der Kamera oder ändern Sie die Platzierung Legen Sie eine lesbare, ungesicherte und formatierte SD-Karte ein Keine Aufnahme möglich Keine SD-Karte eingelegt Entsichern Sie die SD-Karte SD-Karte gesperrt SD-Karte voll Formatieren Sie die SD-Karte (s. Kapitel 12.9) Indexa GmbH, Paul-Böhringer-Str. 3, 74229 Oedheim, Deutschland, www.pentatech.de...
Mode d'emploi 1. Introduction privées. Veuillez respecter les règlementations portant sur les systèmes de Veuillez lire intégralement et attentivement cette notice d'utilisation et dépliez surveillance vidéo dans les espaces publics et professionnels. Une surveillance la page 3 avec les illustrations. Cette notice d'utilisation fait partie intégrante vidéo ne vous libère pas de votre obligation de précaution, de prudence ou de de ce produit et contient des informations importantes concernant la mise en contrôle.
Ecran 3,5” (=8,8 cm) TFT-LCD Réglages du menu (voir figure D Résolution image (Pixel) 320 x 240 (QVGA) System Setup 54 VOX Setting Résolution max. 18 BpS Camera Setup 55 Playback Format d'enregistrement Pairing 56 SD Card Format Support d'enregistrement carte SDHC (max.
Protégez les appareils des champs magnétiques ou électriques 8. Montage et raccordement de la caméra importants! La caméra est prévue pour être pose au mur ou á la couverture (voir figure E). N'utilisez les appareils qu'avec les pièces livrées d'origine ou les Pour une fixation murale ou sur plafond fixez le support [35] de la caméra accessoires de la même marque!
PM = heure entre 12.00 et 24.00 heures 11. Fonctions de base AM = heure située entre 00.00 et 12.00 heures 11.1 Connexion radio Le moniteur peut recevoir jusqu'à 4 caméras radio. La caméra est réglée par Pour effectuer un reset, sélectionner avec les touches directionnelles "Set to défaut sur le canal 1 (voir affichage de canal [39]).
Nous, la société INDEXA GmbH, Paul-Böhringer-Str. 3, 74229 Oedheim, supprimer les données Allemagne, déclarons par la présente que ce produit DF15A Set est conforme Veuillez sélectionner ON à l'aide des touches de direction pour formater la aux spécifications fondamentales et aux autres prescriptions applicables de la carte SD.
voorschriften met betrekking tot videobewaking in industriele en publieke Gebruiksaanwijzing gebieden. Videobewaking komt niet in de plaats van uw eigen verantwoordelijkheid, voorzorg of plicht om toezicht te houden. 1. Inleiding Elk ander gebruik van of wijziging aan de apparaten geldt als niet volgens de voorschriften en heeft wezenlijke risico's op ongelukken.
Draai de statiefdraad van de houder in de draad. 7. Plaatsing van de apparaten Richt de camera en draai de zijdelingse vastzetschroef aan de houder van Voordat u de camera monteert, plant u eerst de montageplaats. Controleer de driehoekmoer [34] en de vastzetschroef [33] vast. vandaaruit voor de montage de functie van de camera en de radio- Draai de antenne [20] voorzichtig zo, dat ze verticaal omhoog staat...
PM = Tijdstip tussen 12:00 en 24.00 uur 11. Basisfuncties AM = Tijdstip tussen 0:00 en 12.00 uur 11.1 Radioverbinding Maximaal 4 radiocamera's kunnen aan de monitor worden ontvangen. Vanaf Selecteer met de pijltjestoets "Set to Factory Default" om het apparaat te de fabriek is de camera in de set op kanaal 1 ingesteld (zie kanaalweergave resetten.
Hierbij verklaren wij, INDEXA GmbH, Paul-Bohringer-Str. 3, D - 74229 verwijderen van opnames Oedheim, dat dit product DF15A Set in overeenstemming is met de principiële Ga met de pijltjestoetsen naar ON om de SD-kaart te formatteren. eisen en de andere relevante voorschriften van richtlijn 1995/5/EG. De Bevestig met OK.
Verander de instelling van de camera of wijzig de plaatsing Geen opname mogelijk Geen SD-kaart in toestel Leg een leesbare, onbeveiligde en geformatteerde SD-kaart in het toestel Ontgrendel de SD-kaart SD-kaart geblokkeerd Formatteer de SD-kaart SD-kaart vol Indexa GmbH, Paul-Böhringer-Str. 3, 74229 Oedheim, Duitsland, www.pentatech.de 20 - NL...
accepted for consequential damages or for damages caused by improper use or Operating instructions incorrect operation. No liability will be accepted for consequential damages caused by any function or by malfunction. Unless any liability is specifically 1. Introduction required by law, claims for damages, in particular those for personal injury or property damage caused by non-functioning or malfunctioning of the machine, Read through these operating instructions fully and carefully and while doing are excluded.
Protection class IP 20 6. Safety instructions Dimensions without antenna (mm) 130 x 90 x 27 The following instructions are provided for your safety and satisfaction during Operating temperature 0° C to + 40° C operation of the device. Note that non-observance of these safety instructions results in significant risks of accident.
activated by the daylight sensor [23]. You can improve the quality of the 10. Operation image at night by using additional illumination. The camera After connection of the power supply the system is in operation. automatically switches to black and white in low light conditions and in Remove the protection foil from the screen [3].
Seite 24
12.4 Power-Saving [52] - power saving mode 12. Settings in OSD menu Activate (ON) or deactivate (OFF) using the direction buttons. Open the OSD menu by pressing the menu button once or twice [13]. Confirm using the OK button. Move to the required icon using the direction buttons [12]. If the power saving mode is activated the camera picture will disappear after Press the OK [16] button to select the icon.
17. Declaration of conformity Indexa GmbH , Paul-Böhringer-Str. 3, D- 74229 Oedheim declares that this product DF15A Set complies with the basic requirements and the other relevant regulations of Directive 1999/5/EC. Conformity has been demonstrated. The complete declaration of conformity can be read at: www.indexa.de...
19. Trouble shooting Fault Cause Remedy Message“NO SIGNAL” Incorrect channel selected Select correct channel by pressing button [12] Camera not powered Check that the Power LED [20] on the corresponding camera lights. If not, check the mains adapter and cable connection. The camera and monitor are not paired Pair camera and monitor The camera is out of range...
Manuale di istruzioni 1. Introduzione Leggere attentamente e completamente il presente manuale di istruzioni e Una video-sorveglianza non può sostituire l'obbligo dell'utente all'attenzione, aprire la pagina 3 con le figure. Il manuale delle istruzioni fa parte di questo alla prevenzione o alla sorveglianza.Ogni altro utilizzo o modifica prodotto e contiene indicazioni importanti per la messa in funzione e la all'apparecchio è...
Prima del montaggio e della messa in esercizio, controllare che la fornitura Orientare la telecamera e avvitare la vite di fissaggio laterale sul supporto non presenti danni e che sia completa! del dado [33] e la vite di bloccaggio [34]. Se l'apparecchio non viene utilizzato per molto tempo, estrarre la spina Ruotar l'antenna [20]...
11.2 Scelta del canale 12.2 Camera Setup [50] - Attivazione del display immagine Premere i tasti direzionali [12: / ] , per sfogliare tra i canali da 1 a 4. telecamera / Scan Period (commutazione automatica) / Funzione quad 11.3 Volume del monitor Con i tasti direzionali selezionare il canale desiderato.
Con la presente, INDEXA GmbH, Paul-Böhringer-Str. 3, D - 74229 Oedheim, Confermare con il tasto OK per riprodurre il video. dichiara che questo prodotto DF15A Set è conforme ai requisiti di base e alle Con il tasto OK viene visualizzata un'immagine ferma, con i tasti direzionali altre specifiche della direttiva 1995/5/EG.
