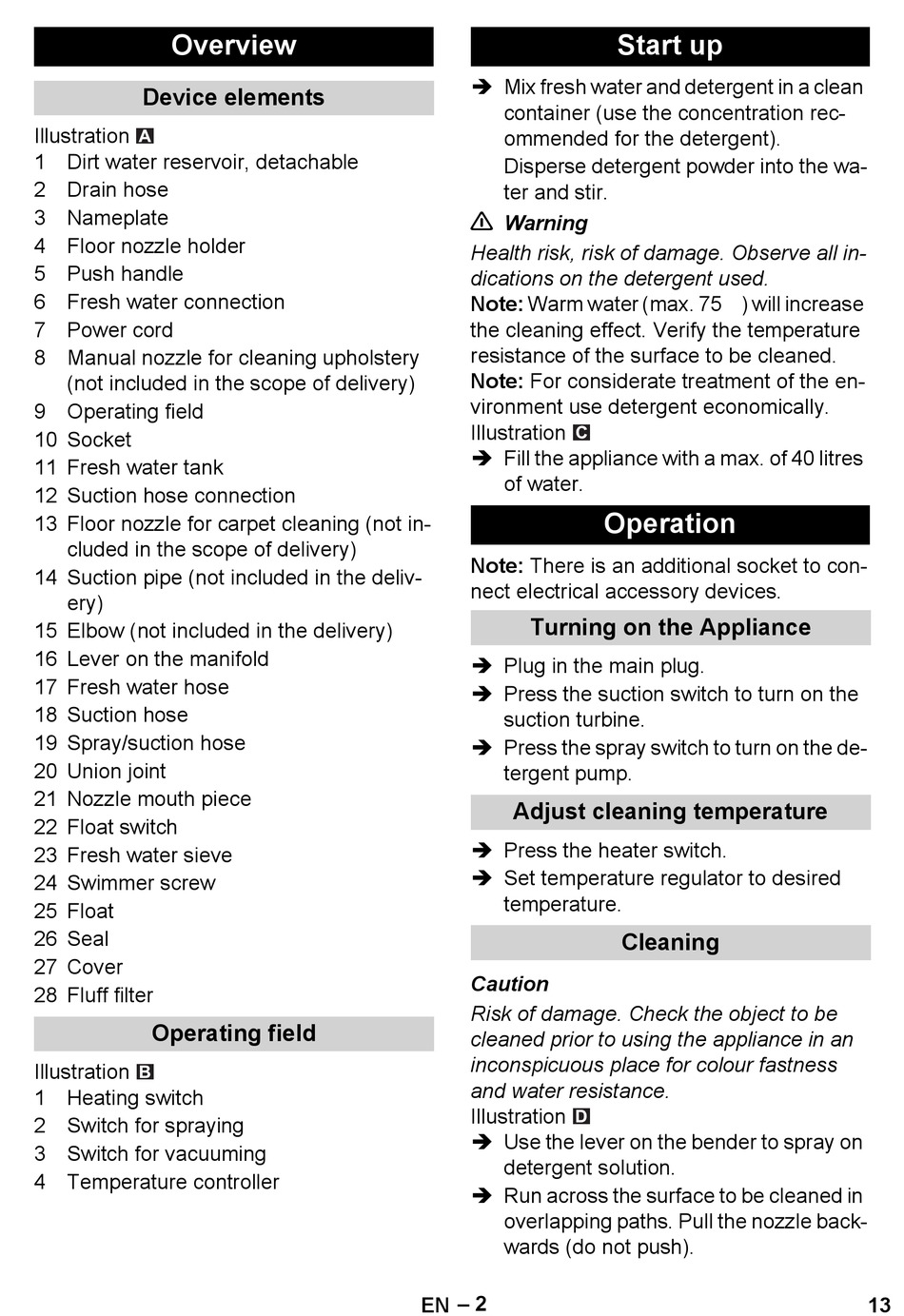

Overview
Device elements
Illustration
1 Dirt water reservoir, detachable
2 Drain hose
3 Nameplate
4 Floor nozzle holder
5 Push handle
6 Fresh water connection
7 Power cord
8 Manual nozzle for cleaning upholstery
(not included in the scope of delivery)
9 Operating field
10 Socket
11 Fresh water tank
12 Suction hose connection
13 Floor nozzle for carpet cleaning (not in-
cluded in the scope of delivery)
14 Suction pipe (not included in the deliv-
ery)
15 Elbow (not included in the delivery)
16 Lever on the manifold
17 Fresh water hose
18 Suction hose
19 Spray/suction hose
20 Union joint
21 Nozzle mouth piece
22 Float switch
23 Fresh water sieve
24 Swimmer screw
25 Float
26 Seal
27 Cover
28 Fluff filter
Operating field
Illustration
1 Heating switch
2 Switch for spraying
3 Switch for vacuuming
4 Temperature controller
 Mix fresh water and detergent in a clean
container (use the concentration rec-
ommended for the detergent).
Disperse detergent powder into the wa-
ter and stir.
Warning
Health risk, risk of damage. Observe all in-
dications on the detergent used.
Note: Warm water (max. 75 ) will increase
the cleaning effect. Verify the temperature
resistance of the surface to be cleaned.
Note: For considerate treatment of the en-
vironment use detergent economically.
Illustration
 Fill the appliance with a max. of 40 litres
of water.
Note: There is an additional socket to con-
nect electrical accessory devices.
Turning on the Appliance
 Plug in the main plug.
 Press the suction switch to turn on the
suction turbine.
 Press the spray switch to turn on the de-
tergent pump.
Adjust cleaning temperature
 Press the heater switch.
 Set temperature regulator to desired
temperature.
Caution
Risk of damage. Check the object to be
cleaned prior to using the appliance in an
inconspicuous place for colour fastness
and water resistance.
Illustration
 Use the lever on the bender to spray on
detergent solution.
 Run across the surface to be cleaned in
overlapping paths. Pull the nozzle back-
wards (do not push).
