5 CONTROLS
5.3

OPERATOR ALERTS_______________________________________________________

The electronic controller monitors vital machine systems.
It uses an audible alarm and warning lights to alert the
operator of conditions requiring immediate action. When
an alert occurs follow the general guidelines listed in the
chart below, and any specific actions outlined by the
grounds superintendent or service manager.
To test alarm system:
Turn ignition switch to RUN. All lights will come on for one
second or more and the alarm will sound briefly.
This system monitors:
T. Battery voltage
U. Engine oil pressure
V. Engine coolant temperature
W. Glow Plugs (Diesel Units)
Alert
T. Battery Voltage - Warning light
comes on.
U. Engine Oil Pressure - alarm
sounds and oil pressure light
comes on. Oil pressure low.
V. Engine Coolant Temperature
Alarm sounds. Engine coolant
temperature high. (Diesel Units
Only)
W. Glow Plug - Glow plug light
comes on. (Diesel Units)
en-12
Return unit to a service area as soon as possible. Inspect battery and
battery charging system.
Stop unit immediately, lower implements and shut off engine! Inspect oil
level in engine. If oil light remains on with oil at proper level, shut off engine,
and tow or trailer unit back to a service area. NEVER operate engine with oil
light on, severe damage to the engine can occur.
Stop unit immediately, lower implements and shut off engine! Remove
debris such as leaves and grass clippings that may be restricting air flow
through rear screen on hood and area between radiator and oil cooler. If
engine continues to run hot, return groomer to a service area.
CAUTION: Engine coolant is under pressure. Turn engine off and
allow fluid to cool before checking fluid level or adding coolant to
radiator.
System is energizing glow plugs. Hold key in start position, starter will
engage when glow plug light turns off.
T
V
Action
U
W

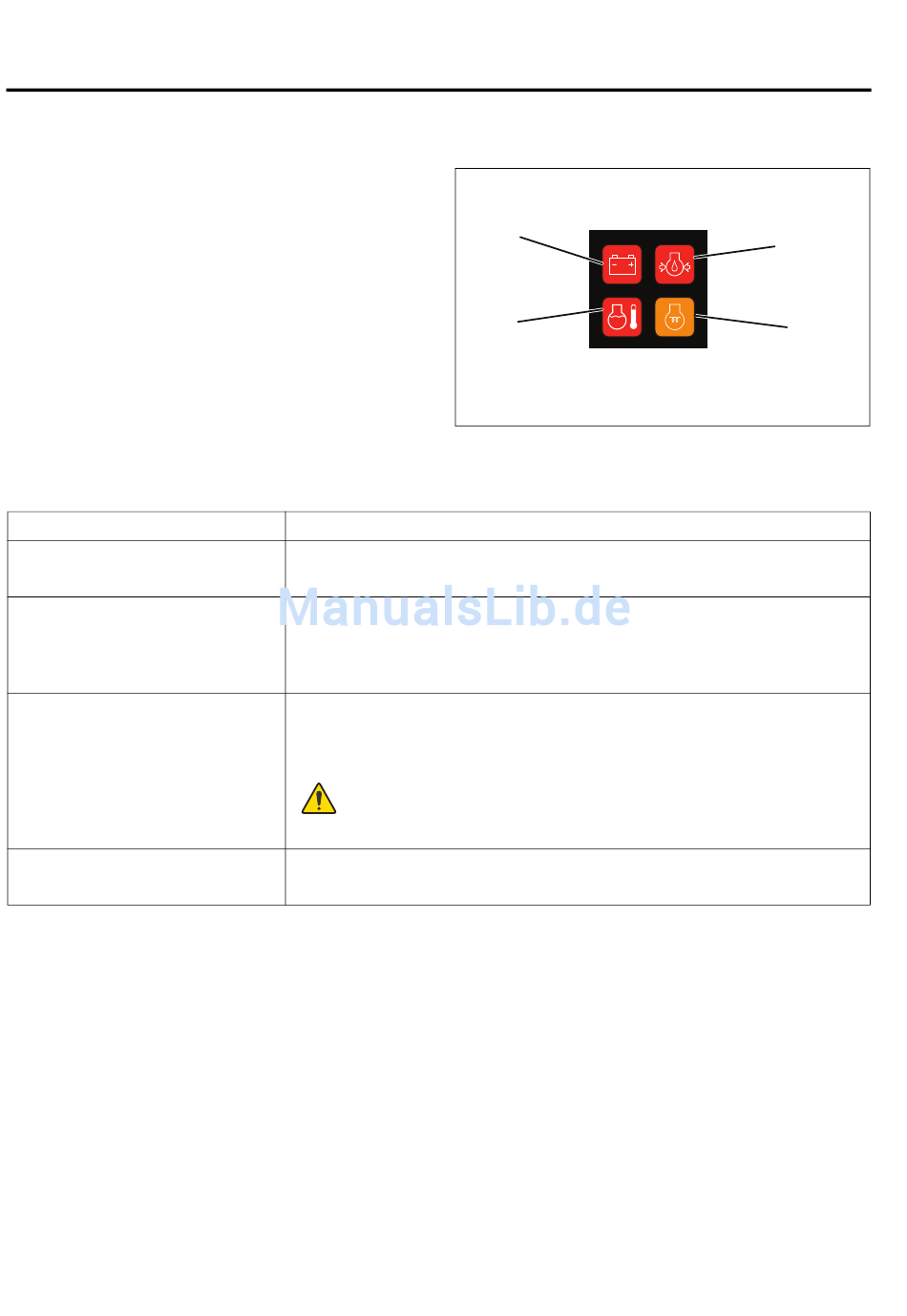

Figure 5A
