Installation Of Meter; Outline; The Menu Osd Instruction - Megasat Digital 1 Bedienungsanleitung

Note 1: When the adapter insert dc slot,Charging indicator scintillation three times,
then the indicator is often bright, when the batteries charged sufficient, the charge
indicator is going out.
Note 2: When the battery is on power failure, a voice alarm, please a timely charge, do
not continue to be used to avoid the internal battery runs out and shorten the usage
time.

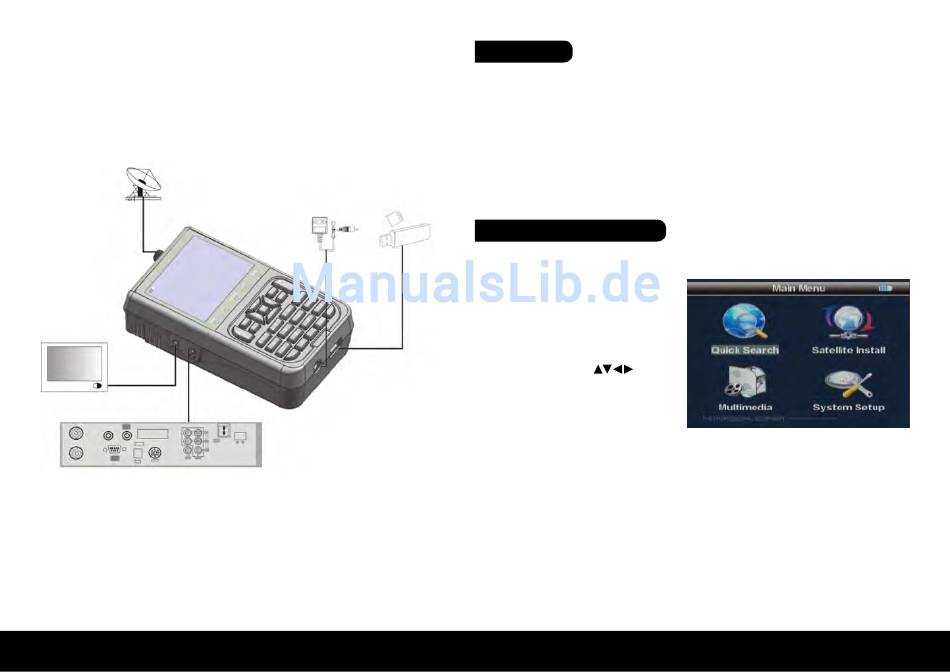

1.4 Installation of meter

ENGLISH
06

2. Outline

• 3.5 Inch TFT LCD Screen Display
• Input Frequency: 950 ~ 2150 MHz
• Input Level: -65 ~ -25 dBm
• Input Impedance: 75 Ω
• Measurement Type: Signal strength,
Quality; BER; S/N;PWR
• Search Mode: Auto, Blind, Manual
• Sound and Light Alarm
for Locking Signal

3. The menu OSD instruction

If you have installed and connected the cables to the meter, pressing MENU key to
display the Main Menu.
• Search
• Install
• Multimedia
• System
Press the keys of to move
the cursor up or down in the menu
interface, then use OK key to
confirm a selection.
ENGLISH
• Auto Calculate Angle of AZ ,EL
• Supporting DISEQC 1.0,1.1,1.2 and
22khz Tone
• LNB Power Supply:18/13V(IMax 400mA)
• Support both AV out and AV in
• Speaker Integrated
• Max Operating Time:4 hours
07
