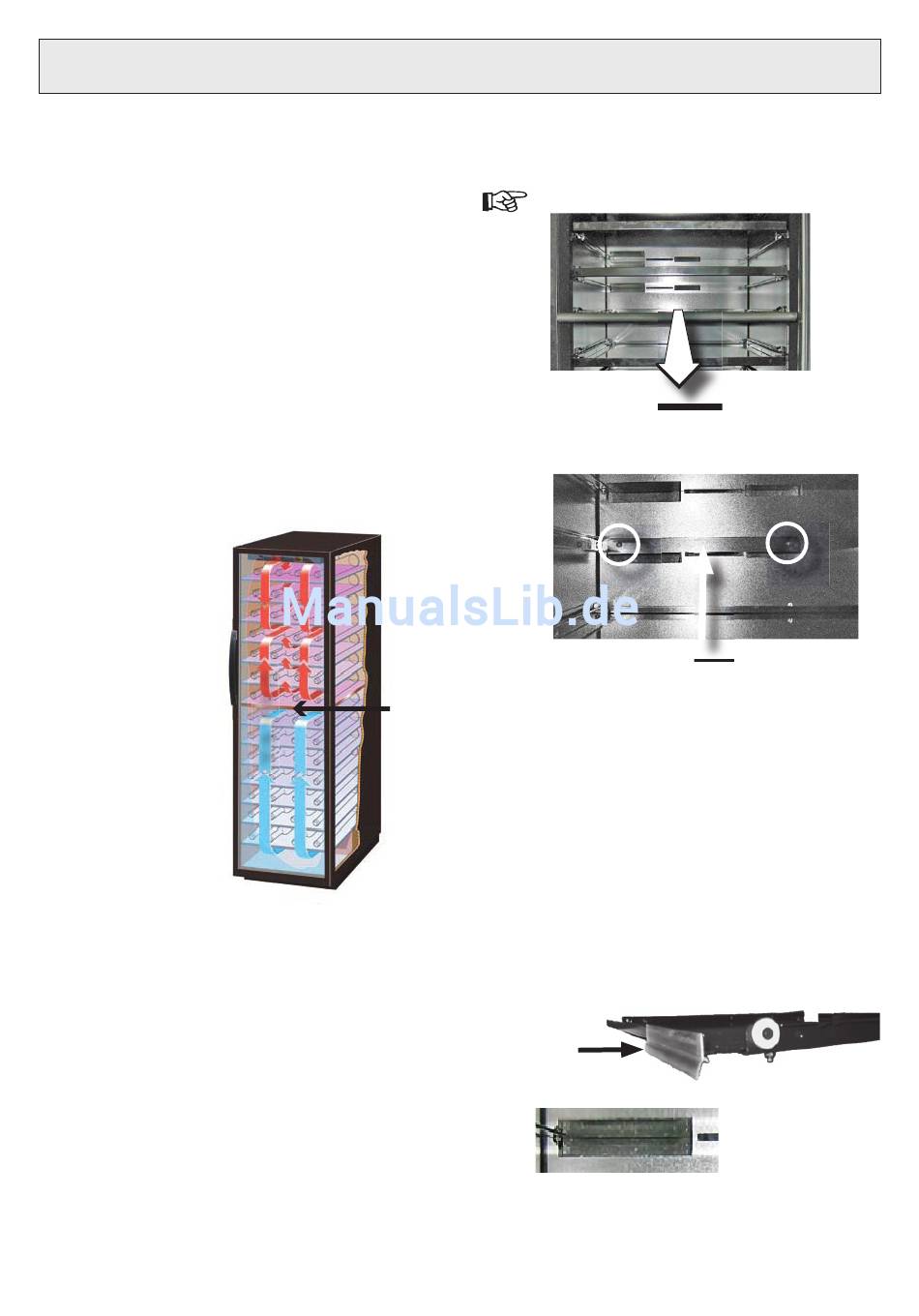

AdjUSTING THE SIzE Of THE
COMPARTMENTS
The wine cellar is equipped with 1 adjustable
slidable shelves and one insulated separation shelf.
The separation shelf can hold 5 positions and this
enables you to vary each of the compartment's lay-
out from 5 - 9 shelves. The separation shelf sepa-
rates warm and cold air and creates two different
temperature zones that can be controlled independ-
ently. The size of the compartments can be ad-
justed between 1/ and 2/ of the total volume. The
gradient settings are the same independent of the
size of the compartments. Thus, in every space and
at any temperature setting, the temperature range is
the same.
{
The separation
shelf's 5 possible
positions
Note! Do not store more than 12 bottles on each
shelf.
OPERATING INSTRUCTIONS
1
2
Separation
3
shelf
4
5
To adjust the size of the compartments, follow
these steps:
1. Remove the separation shelf.
2. The separation damper is now visible at The separation damper is now visible at
the back of the compartment. Detach it by
removing the two screws.
. Move the separation damper to its new
location. Fasten it properly using the two
screws removed earlier. (The rectangular
holes indicate where it is possible to place
the separation damper. Choose between 5
different positions.)
. Put the separation shelf in place.
5. Then, check the slidable shelves. These
shelves are equipped with self-adhesive
plastic sealing strips. In order for the wine
cellar to work satisfactory, verify that
these strips cover the holes at the back of
the compartment completely.
Sealing
strip
6. The installation is now complete and you
can start using the service wine cellar.
- 19 -
Separation damper Separation damper
Ensure the sealing
strip covers the
hole completely!
